A Solid Grip on the Job
Safe To Be Left Solo
Installs Made Easy
Exterior Dimensions (in.)
Length
|
|
|
231.7
|
Wheelbase
|
|
|
145.4
|
Height
|
|
|
77.2
|
Width (Mirrors Folded)
|
|
|
83.6
|
Approach Angle
|
|
|
24.3°
|
Departure Angle
|
|
|
25.3°
|
Ground Clearance
|
|
|
9.4
|
Interior Dimensions (in.)
|
|
Front
|
Rear
|
Head Room
|
|
40.8
|
40.4
|
Shoulder Room
|
|
66.7
|
66.0
|
Hip Room
|
|
62.5
|
62.6
|
Leg Room
|
|
43.9
|
43.6
|
Capacities
Interior Passenger Volume (cu. ft.)
|
|
|
131.9
|
Cargo Box Volume – Maximum (cu. ft.)
|
|
|
52.8
|
Seating Capacity
|
|
|
5
|
Payload (lbs.)
|
|
|
2,030
|

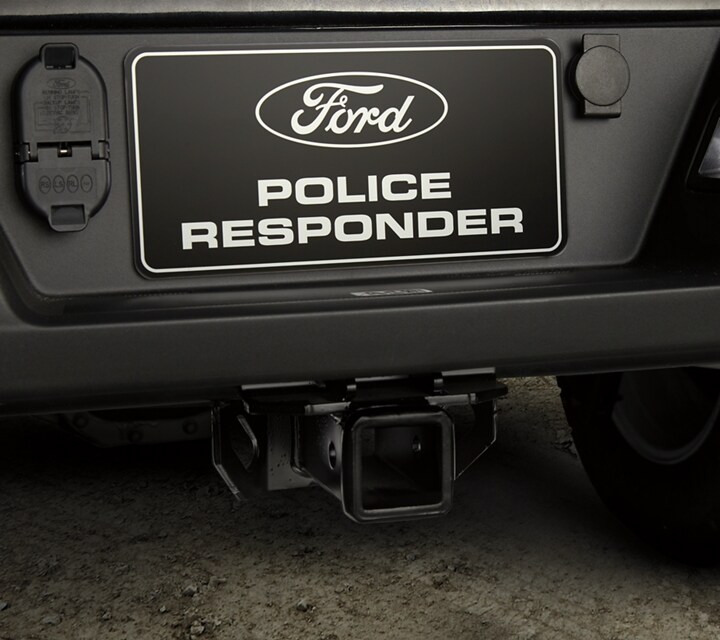

Towing (lbs.)
|
|
|
7,000 (Standard)
11,200 (Optional)
|
GVWR (lbs.)
|
|
|
7,050
|
Engines

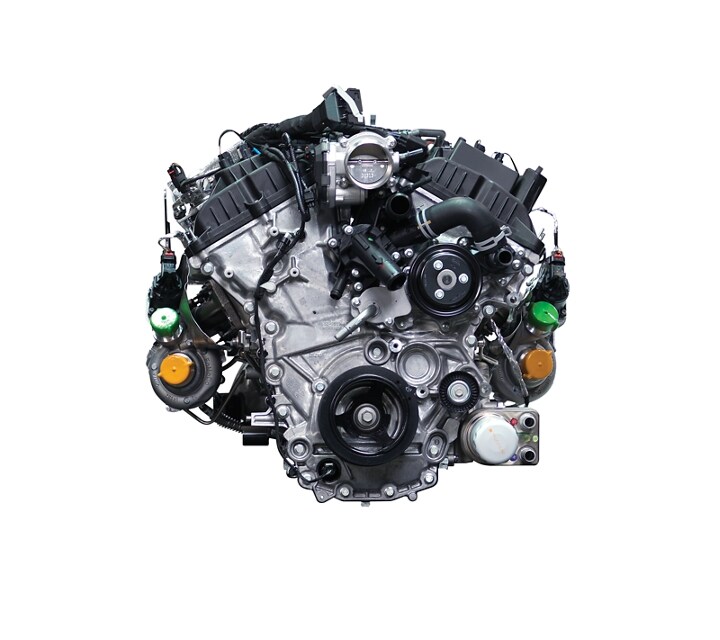

3.5L EcoBoost® V6
|
|
|
|
Horsepower (hp @ rpm)
|
|
|
400 @ 6,000
|
Torque (lb.-ft. @ rpm)
|
|
|
500 @ 3,500
|
