2024 Super Duty®
F-450® XLT

Build & Price

Key Features

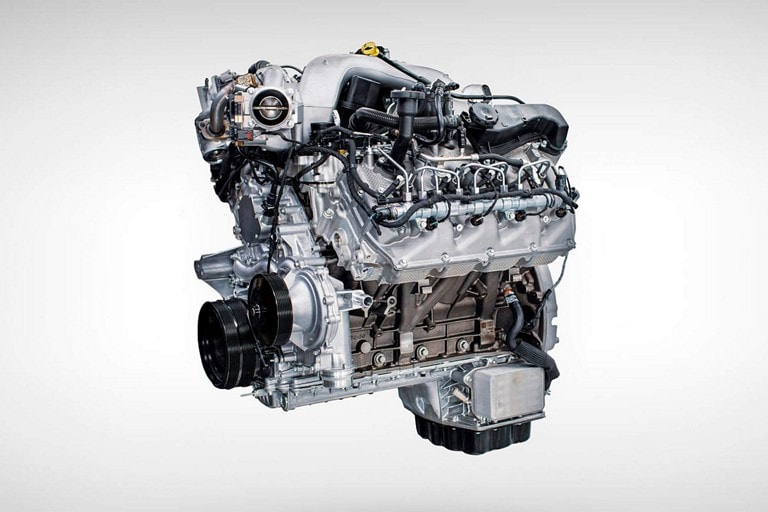

6.7L Power Stroke^® V8 Turbo Diesel Engine

The available 6.7L Power Stroke^® V8 Turbo Diesel engine has a 36,000-psi fuel-injection system, featuring injectors that can atomize fuel up to eight times per stroke to optimize combustion. It also features a durable block, cylinder heads, connector rods and bearings, plus forged-steel pistons, which make 475 hp at 2,600 rpm and available 1,050 lb.-ft. of torque at 1,600 rpm. Finally, the engine features an electric-actuated variable-geometry turbocharger that improves throttle response.

A man using a laptop computer inside the cab of a 2024 Ford Super Duty® pickup

FordPass^® Connect With 5G Wi-Fi

Now you can stay connected, even as you roam the highways.⁹ With FordPass Connect,⁵ Ford vehicle owners and passengers can enjoy an available 5G in-vehicle Wi-Fi hotspot, powered by AT&T, that can be used up to 50 feet outside the vehicle. Up to 10 devices can connect at once.

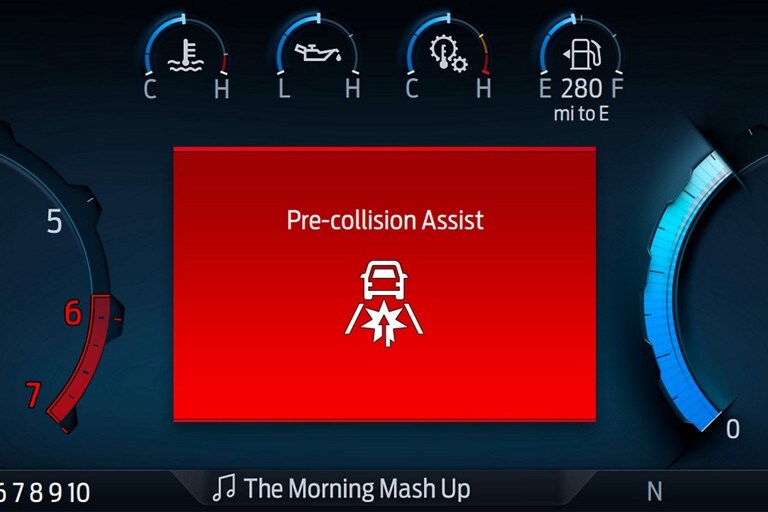

Computer-graphic video highlighting the Pre-Collision Assist with Emergency Braking and Forward Collision Warning feature

Pre-Collision Assist^® With Automatic Emergency Braking and Forward Collision Warning

The available Pre-Collision Assist with Automatic Emergency Braking* and Forward Collision Warning scans the road ahead and can alert you to potential collisions with vehicles detected in your path. If an impact becomes imminent and you don't take corrective action, the brakes can apply automatically — but only activate if they're needed.

*Driver-assist features are supplemental and do not replace the driver's attention, judgment and need to control the vehicle. Pre-Collision Assist with Automatic Emergency Braking detects pedestrians, but not in all conditions, and can help avoid or reduce a collision. It does not replace safe driving. See Owner's Manual for details and limitations.

Exterior Features

Appearance

Standard

Bumpers, Front and Rear - Chrome
Door Handles - Black
Halogen Fog Lamps
Quad Beam Halogen Jewel Effect
AutoLamp (Auto On/Off Headlamps)
Automatic High Beam
LED Roof Marker/Clearance Lamps (F-350 DRW/F-450)
Grille - Bright Chrome
Mirrors - Manual Telescoping/Folding Trailer Tow with Power Heated Glass, Heated Convex Spotter Mirror, Integrated Clearance Lamps/Turn Signals
Tailgate - Tailgate, Power Lock
Tie-Down Hooks – Pickup Box
Tow Hooks – (2) Front, Black
Center High-Mounted Stop Lamp (CHMSL)

Optional

Platform Running Boards
6-inch Angular Bright Anodized Step Bar
Door Handles - Chrome W/Body-Color Surround
LED Box Lighting
PowerScope^® Trailer Tow Mirrors
Tailgate - Remote Tailgate Release
Tailgate - Tailgate Step

Protection

Standard

Splash Guards - Front F450
Daytime Running Lamps

Optional

Tough Bed^® Spray-In Bedliner
Skid Plates (4x4)
Bed Mat
LED Warning Strobes (360-Degree Dual Beacon) - Amber
LED Warning Strobes (360-Degree Dual Beacon) - Amber/White
Customer-Placed Trailer Camera
Individual Trailer TPMS
Individual Trailer TPMS/Customer-Placed Trailer Camera
Tonneau Pickup Box Cover - Soft Folding
Tonneau Pickup Box Cover - Hard Folding
Tonneau Pickup Box Cover - Retractable
Retractable Bed Side-Step
Aluminum Crossbed Toolbox by Weather Guard (Defender Series)
Premium Aluminum Crossbed Toolbox by Weather Guard

Windows & Glass

Standard

Glass - Rear, Privacy
Window - Rear, Fixed
Window - Rear, Defrost Fixed And Privacy Glass

Optional

Window - Rear, Power Sliding With Defrost Privacy Glass (SuperCab and Crew Cab)
Moonroof – Power (Crew Cab)

Interior Features

Climate

Standard

Air Conditioning – Manual Temperature Control

Optional

Rapid-Heat Supplemental Cab Heater (Diesel Only)

Comfort & Convenience

Standard

Cruise control
Dash-top tray
Color-Coordinated Carpet And Carpeted Floor Mats (Includes Rear Mats on SuperCab & Crew Cab)
Grab Handles - Driver and Front Passenger and Roof Ride Handles; Front Passenger (Also Over Rear Doors with Crew Cab)
Headliner – Color-Coordinated Cloth
4.2-inch LCD Productivity Screen
Instrumentation – Multi-Function Switch Message Center
Power Equipment - Accessory Delay
Power Equipment - Power Door Locks and Windows
Two (2) Powerpoint in Instrument Panel
One (1) Powerpoint in Front Center Under-Seat Storage
120-Volt/400-Watt Dash-Mounted Outlet
120-Volt/400-Watt Outlet In Rear Side of Flow-Through Console
Trailer Sway Control and Hill Start Assist
Rear View Camera
Pre-Collision Assist with Automatic Emergency Braking (AEB) and Forward Collision Warning
Rearview Mirror - Electrochromic Self-Dimming
Steering Wheel - Audio Controls
Steering Wheel – Black Urethane With Tilt and Telescoping Steering Wheel/Column; Includes Three (3) Button Message Control
Instrument Panel – Color-Coordinated W/ Glove Box, 4 Air Registers W/positive Shut-Off, Powerpoint
Storage - Front Arm Rest Storage (40/20/40 Seating)
Sun Visors – Color-Coordinated, Cloth, Both Driver and Passenger W/Covered Mirrors
Tilt/Telescoping Steering Wheel
Windshield Wipers - Intermittent
FordPass^™ Connect with 5G Wi-Fi Hotspot connects up to 10 devices
Ford Telematics^™
Ford Data Services^™

Optional

Carpet Delete
Floor Mats—All-Weather
12-inch LCD Productivity Screen
Pro Power Onboard – 2KW
Reverse Brake Assist with Rear Parking Sensors
BLIS^® with Cross-Traffic Alert and Trailer Coverage (BLIS^® Sensor In Taillamp)
Reverse Sensing System
Remote Start System
Storage - Vehicle Safe by Console Vault
Upfitter Switches, Six (6) Located in Overhead Console
Exterior Backup Alarm
Ford Pro Upfit Integration System
360-Degree Camera System
Wired Aux Trailer Camera Compatibility
Trailer Reverse Guidance

Entertainment Systems

Standard

Audio – AM/FM Stereo/MP3 Player (Four (4))
SYNC^® 4 with 8-inch LCD Capacitive Touchscreen with Swipe Capability

Seating

Standard

Seats - Front, Cloth 40/20/40 Split Bench
Seats - Medium Dark Slate
Seats - Baja
8-Way Power Driver Seat (Four-Way Power-Adjustable Track, Two-Way Power Recline And Two-Way Power Lumbar)
Front Center-Seat-Integrated Restraints (SIR)
Two-Way Adjustable Driver/Passenger Headrests
Seats - Rear, Cloth, 60/40 Fold-Up Bench Seat (SuperCab)
60/40 Bench W/Flip-Up/Fold-Down W/Two (2) Outboard Head Restraints And A Center Head Restraint (Crew Cab)
Power Equipment Group

Optional

Seats - Front, Cloth 40/Console/40 (SuperCab, Crew Cab)
Seats - Front, Heated, Driver and Passenger
Interior Work Surface (Req. 40/20/40 Seat)

Packages

Power & Handling

Handling

Standard

Alternator - 190-amp 6.7L
Mono-Beam Wide Track Front Suspension with Extended Axle (F-450)
Rear – 4.30 Limited-Slip (F-450)
Brakes – Four-wheel disc Anti-lock Brake System (ABS)
AdvanceTrac^® with RSC^® (Roll Stability Control^™) and Trailer Sway Control
Trailer Sway Control
29 Gallon Fuel Tank (Diesel Engine) – 142-inch (Regular Cab) & 148-inch (SuperCab 6.75ft Box) Wheelbase
48 Gallon Fuel Tank (Diesel Engine) – 176-inch (Crew Cab 8ft Box) Wheelbase
Shock absorbers – heavy-duty gas
Stabilizer Bar – Front
Stationary Elevated Idle Control (SEIC)
Steering Damper
Trailer Brake Controller
Intelligent Oil-Life Monitor^® (6.7L Power Stroke^® Diesel engine)
Trailer Hitch Receiver – 2.5-inch Built Ford Tough^® Trailer Hitch Receiver
Trailer Hitch Receiver – 3-inch Built Ford Tough^® Trailer Hitch Receiver (F-350 DRW Crew Cab 6.7L High Output Diesel w/ 4.10 Axle and F-450 Crew Cab)
4-Wheel-Drive System With Auto/Manual Locking Hub
Electronic-Shift-On-the-Fly (ESOF) (4x4 Only)

Optional

Dual Battery (Gas Only)
Alternator - 250-amp 6.7L
Alternators - Dual 410-amp total 6.7L
Engine Block Heater
Engine Idle Shutdown – Programmable
Transmission Power Take-Off Provision (PTO)
Gooseneck Dual Hitch Kit 15E (F-450 only)
5th Wheel Hitch Kit 35,000 lbs DRW

Power

Standard

Engine - 6.7L Power Stroke^® V8 Turbo Diesel
TorqShift^® Ten-speed Automatic with Selectable Drive Modes: Normal, Slippery, Tow/Haul, Eco
Diesel Engine-Exhaust Brake (Diesel Engine Only)

Optional

Engine 6.7 HO Power Stroke^® V8 Turbo Diesel

Wheels & Tires

Standard

Wheels - 19.5-inch Forged Polished Aluminum
225/70Rx19.5G BSW A/S (6)
Spare tire, wheel & carrier
Jack - 4-Ton, Hydraulic (DRW)

Safety Features

Specifications

Highlights


Fuel Capacity	29 gallons
	34 gallons
	48 gallons
Drive Type	4x2
	4x4
Available Engines	6.8L N/A V8 Gas
	7.3L N/A V8 Gas
	6.7L Power Stroke^® V8 Turbo Diesel
	6.7L HO Power Stroke^® V8 Turbo Diesel
	HP = 405 @ 5,000 rpm\| TQ = 445 @ 4,000 rpm (6.8L Gas V8)
	HP = 430 @ 5,500 rpm \| TQ = 485 @ 4,000 rpm (7.3L Gas V8)
	HP = 475 @ 2,600 rpm \| TQ = 1,050 @ 1,600 rpm (6.7L Power Stroke^® Turbo Diesel)
	HP = 500 @ 2,600 rpm \| TQ = 1,200 @ 1,600 rpm (6.7L HO Power Stroke^® Turbo Diesel)
Transmission	TorqShift^® G 10-speed SelectShift Automatic^® with Selectable Drive Modes
	TorqShift^® 10-speed SelectShift Automatic^® with Selectable Drive Modes
Wheelbase	141.4 (Regular Cab)
	147.8" (SWB SuperCab); 164.1" (LWB SuperCab)
	159.7" (SWB Crew Cab); 175.9" (LWB Crew Cab)
Warranty	Bumper to Bumper: 3 years / 36,000 miles
	Powertrain: 5 years/60,000 miles; Diesel: 5 years/100,000 miles
	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles

Exterior


Exterior Dimensions (English Units)
		Regular Cab	Regular Cab	Super Cab	Super Cab	Super Cab	Super Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
		8ft box	8ft box	SWB - 6.75 ft box	SWB - 6.75 ft box	LWB - 8ft box	LWB - 8ft box	SWB - 6.75 ft box	SWB - 6.75 ft box	LWB - 8ft box	LWB - 8ft box
		4x2	4x4	4X2	4X4	4X2	4X4	4X2	4X4	4X2	4X4
Wheelbase (in)		141.4	141.5	147.8	147.9	164.1	164.1	159.7	159.7	175.9	175.9
Length - overall (in)		231.8	231.8	238.2	238.2	254.4	254.4	250.0	250.0	266.2	266.2
Height - F-250 SRW (w/o options) (in)		78.9	81.4	79.3	81.5	79.1	81.5	79.3	81.6	79.0	81.4
Height - F-350 SRW (w/o options) (in)		78.8	81.3	79.3	81.4	79.0	81.3	79.2	81.4	78.9	81.2
Height - F-350 DRW (w/o options) (in)		79.4	81.3	-	-	79.1	81.4	-	-	79.5	81.5
Height - F-450 DRW (w/o options) (in)		82.0	82.0	-	-	-	-	-	-	81.3	82.1
Width - SRW without mirrors (in)		80	80	80	80	80	80	80	80	80	80
Width - DRW without mirrors (in)		96	96	-	-	96	96	-	-	96	96
Width - SRW/DRW with standard mirrors (in)		105.9	105.9	105.9	105.9	105.9	105.9	105.9	105.9	105.9	105.9
Track - front - F-250 SRW (in)		69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-350 SRW (in)		69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-350 DRW (in)		69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5	69.5
Track - front - F-450 DRW (in)		77	77	-	-	-	-	-	-	74.8	74.8
Track - rear - F-250 SRW (in)		67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2
Track - rear - F-350 SRW (in)		67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2	67.2
Track - rear - F-350 DRW (in)		74	74	-	-	74	74	-	-	74	74
Track - rear - F-450 DRW (in)		74	74	-	-	-	-	-	-	74	74
Minimum running ground clearance - F-250 SRW (in)		9.7	9.4	9.9	9.3	10.2	9.7	9.9	9.2	10.2	9.5
Minimum running ground clearance - F-350 SRW (in)		9.7	9.3	9.9	9.2	10.2	10.6	10.1	9.1	10.2	9.4
Minimum running ground clearance - F-350 DRW (in)		9.9	9.2	-	-	10.2	9.4	-	-	10.2	9.8
Minimum running ground clearance - F-450 DRW (in)		8.6	8.6	-	-	-	-	-	-	10.3	10.3
Overhang - front (in)		38.2	38.3	38.2	38.3	38.2	38.3	38.2	38.3	38.2	38.3
Overhang - rear (in)		52.2	50.0	52.2	50.0	52.2	50.0	52.2	50.0	52.2	50
Angle of departure - F-250 SRW (degrees)		19.7	21.3	19.1	20.9	18.7	20.8	19.3	21.1	18.8	20.8
Angle of departure - F-350 SRW (degrees)		19.4	21.1	18.9	20.8	18.5	20.6	19	20.9	18.7	20.6
Angle of departure - F-350 DRW (degrees)		20.7	21.5	-	-	18.7	20.9	-	-	20	20.9
Angle of departure - F-450 DRW (degrees)		21.6	21.5	-	-	-	-	-	-	20.8	20.8
Ramp breakover angle - F-250 SRW (degrees)		20.3	24.7	19.5	23.3	20.7	21.9	18.5	21.9	17.3	20.5
Ramp breakover angle - F-350 SRW (degrees)		19	21.1	19.3	23.2	18.3	21.7	18.4	21.7	17.2	20.3
Ramp breakover angle - F-350 DRW (degrees)		20.7	21.5	-	-	22.7	21.8	-	-	17.4	20.7
Ramp breakover angle - F-450 DRW (degrees)		25.4	25.4	-	-	-	-	-	-	20.7	20.7
Angle of approach - F-250 SRW (degrees)		16.7	15.8	21.2	26.9	21.8	27.6	21.2	26.7	21.7	27.3
Angle of approach - F-350 SRW (degrees)		16.6	15.7	21.1	15.5	17.4	16.2	21.5	26.6	21.8	27.2
Angle of approach - F-350 DRW (degrees)		20.7	21.5	-	-	17.8	17.4	-	-	21.7	27.7
Angle of approach - F-450 DRW (degrees)		18.5	18.5	-	-	-	-	-	-	26.9	26.9
Open tailgate to Ground - F-250 SRW (in)		36.5	37.6	36	37.2	35.6	37	35.3	38.1	35.2	36.8
Open tailgate to Ground - F-350 SRW (in)		36.3	37.4	35.8	37.1	35.4	36.9	35.3	36.9	35	36.6
Open tailgate to Ground - F-350 DRW (in)		37.3	37.7	-	-	35.6	37.1	-	-	36.2	36.9
Open tailgate to Ground - F-450 DRW (in)		38.3	38.1	-	-	-	-	-	-	36.8	36.8
Length - front bumper to back of cab (in)		123.6	123.6	146.2	146.2	146.2	146.2	158.0	158.0	158.0	158.0

Curb Weights (lbs)		Regular Cab	Regular Cab	Super Cab	Super Cab	Super Cab	Super Cab	Crew Cab	Crew Cab	Crew Cab	Crew Cab
Box Size		8ft box	8ft box	SWB - 6.75 ft box	SWB - 6.75 ft box	LWB - 8ft box	LWB - 8ft box	SWB - 6.75 ft box	SWB - 6.75 ft box	LWB - 8ft box	LWB - 8ft box
Drivetrain		4x2	4x4	4X2	4X4	4X2	4X4	4X2	4X4	4X2	4X4
Base Curb Weight - F-250 SRW	6.8L	5,697	6,148	5,995	6,415	6,104	6,504	6,041	6,396	6,264	6,699
Base Curb Weight - F-250 SRW	6.7L	6,583	6,996	6,870	7,268	6,999	7,386	6,963	7,331	7,210	7,645
Base Curb Weight - F-250 SRW	7.3L	5,801	6,232	6,078	6,499	6,187	6,587	6,142	6,480	6,348	6,783
Base Curb Weight - F-250 SRW	6.7L HO	6,598	7,011	6,885	7,283	7,014	7,401	6,978	7,346	7,225	7,660
Base Curb Weight - F-350 SRW (17" Wheels)	6.8L	N/A	6,220	6,036	6,463	6,148	6,628	6,191	6,608	6,417	6,722
Base Curb Weight - F-350 SRW (17" Wheels)	6.7L	6,553	6,972	6,772	7,190	6,897	7,372	6,947	7,372	7,184	7,649
Base Curb Weight - F-350 SRW (17" Wheels)	7.3L	N/A	6,433	6,250	6,677	6,361	6,841	6,405	6,821	6,630	6,936
Base Curb Weight - F-350 SRW (17" Wheels)	6.7L HO	6,568	6,987	6,787	7,205	6,913	7,388	6,962	7,387	7,199	7,664
Base Curb Weight - F-350 SRW (18" Wheels A/S)	6.8L	5,854	6,277	6,097	6,520	6,205	6,633	6,248	6,665	6,474	6,780
Base Curb Weight - F-350 SRW (18" Wheels A/S)	6.7L	6,610	7,029	6,829	7,248	6,955	7,377	7,004	7,429	7,241	7,732
Base Curb Weight - F-350 SRW (18" Wheels A/S)	7.3L	6,068	6,490	6,310	6,734	6,418	6,846	6,462	6,878	6,687	7,032
Base Curb Weight - F-350 SRW (18" Wheels A/S)	6.7L HO	6,625	7,044	6,844	7,263	6,971	7,393	7,019	7,444	7,256	7,393
Base Curb Weight - F-350 DRW	6.8L	6,206	6,647	-	-	6,666	7,080	-	-	6,886	7,392
Base Curb Weight - F-350 DRW	6.7L	6,992	7,421	-	-	7,436	7,852	-	-	7,622	8,133
Base Curb Weight - F-350 DRW	7.3L	6,314	6,743	-	-	6,762	7,176	-	-	6,982	7,388
Base Curb Weight - F-350 DRW	6.7L HO	7,008	7,436	-	-	7,451	7,868	-	-	7,637	7,868
Base Curb Weight- F-450 DRW	6.7L	7,657	8,053	-	-	-	-	-	-	8,312	8,587
Base Curb Weight- F-450 DRW	6.7L HO	7,673	8,068	-	-	-	-	-	-	8,327	8,627

Cargo Box	6.75-ft. BOX	8.0-ft. BOX
Inside Length (at floor) [in]	81.9	98.1
Inside Height [in]	21.1	21.1
Width Between Wheelhouses [in]	50.5	50.5
Maximum Width (at floor) [in]	66.9	66.9
Cargo Box Volume [cu. ft.]	65.4	78.5

Interior


Interior Dimensions
	Regular Cab	Super Cab	Crew Cab
Front (in)
Head room	40.8	40.8	40.8
Shoulder room	66.7	66.7	66.7
Hip room	62.5	62.5	62.5
Max leg room	43.9	43.9	43.9
Rear (in)
Head room	-	40.3	40.4
Shoulder room	-	65.8	65.9
Hip room	-	64.7	64.7
Leg room	-	33.5	43.6
Volumes (cu. ft.)
Passenger - total	64.7	116.3	131.9
Cargo - behind first row	10.9	30.3	53.4

Cargo Box Dimensions
	SWB - 6.75 ft box	LWB - 8 ft box
Volume (cu. ft.)	65.4	78.5
Length at floor (in)	81.9	98.1
Length at top of box (in)	80.3	96.4
Height (in)	21.1	21.1
Width at floor (maximum) (in)	66.9	66.9
Width between wheelhouse (in)	50.5	50.5
Rear opening width (in)	60.5	60.5

SWB = short wheelbase (6 3/4' cargo box)
LWB = long wheelbase (8' cargo box)

Capacities


Capacities: Passengers and Fuel
Seating capacity		Regular Cab	Super Cab	Crew Cab
		3	6	6
Fuel capacity	6.8L Gas	34 gallon	34 gallon	34 gallon (160" WB), 48 gallon (176" WB)
	7.3L Gas	34 gallon	34 gallon	34 gallon (160" WB), 48 gallon (176" WB)
	6.7L Diesel	29 gallon (142" WB)	29 gallon (148" WB), 34 gallon (164" WB)	34 gallon (160" WB), 48 gallon (176" WB)
	6.7L HO Diesel	29 gallon (142" WB)	29 gallon (148" WB), 34 gallon (164" WB)	34 gallon (160" WB), 48 gallon (176" WB)

Chassis


Chassis Specifications
FRONT SUSPENSION
Type	Mono beam (narrow front track) with coil springs, shock absorbers, stabilizer bar (F-250/F-350 4x4) Mono beam (wide front track) with coil springs, shock absorbers, stabilizer bar (F-450)

Max. Front GAWR	lbs.
	5,000 (F-250)(4x2)
	5,600 (F-250)(4x4)
	5,000 (F-350 SRW)(4x2)
	5,600 (F-350 SRW)(4x4)
	5,300 (F-350 DRW)(4x2)
	5,600 (F-350 DRW)(4x4)
	5,600 (F-450 4X2)
	5,600 (F-450 4X4)
Front Springs	Coil
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard
REAR SUSPENSION
Type	Solid axle
Max. Rear GAWR	6,340 lbs. (F-250 4x2)
	6,340 lbs. (F-250 4x4)
	7,230 lbs. (F-350 SRW 4x2)
	6,780 lbs. (F-350 SRW 4x4)
	10,300 lbs. (F-350 DRW 4x2)
	9,900 lbs. (F-350 DRW 4x4)
	9,900 lbs. (F-450 DRW 4x2)
	9,900 lbs. (F-450 DRW 4x4)
Rear Springs	Leaf
Shock absorbers	Heavy-duty gas
Stabilizer bar	Standard on DRW pickup; optional in select packages on SRW pickup
STEERING
Assist	Power Hydraulic
BRAKES
Type	4-wheel vented-disc ABS (standard)
Front (rotor diameter)	14.29" (363 mm) (F-250/F-350)
	15.39" (391 mm) (F-450)
Rear (rotor diameter)	14.29" (363 mm) (F-250/F-350)
	15.75" (400 mm) (F-450)
WHEELS
Type	Steel or aluminum
Size	17," 18" or 20" (F-250/F-350)
	17" DRW (F-350)
	19.5" DRW (F-450)
Number of studs	8 (F-250, F-350)
	10 (F-450)
Bolt-circle diameter	6.69" (170 mm) SRW
	7.87" (200 mm) F-350 DRW
	8.86" (225 mm) F-450 DRW

Engine


Engine Specifications

Name	7.3L 2V DEVCT NA PFI V8 Gas	6.8-liter V8	6.7L Power Stroke^® V8 Turbo Diesel	6.7L HO Power Stroke^® V8 Turbo Diesel
Configuration	90-degree V8, single in-block cams	90-degree V8, single in-block cams	90-degree diesel V8, single turbocharger, in-block cams and overhead valves	90-degree diesel V8, single turbocharger, in-block cams and overhead valves
Fuel injection/delivery	Sequential Electronic	Sequential Electronic	High-Pressure Common-Rail	High-Pressure Common-Rail
Engine control system	Electronic	Electronic	Electronic	Electronic
Induction system	Specially tuned - (n/a non turbo)	Specially tuned - (n/a non turbo)	Variable Geometry Turbocharger; with charge air cooler	Variable Geometry Turbocharger; with charge air cooler
Battery	12-volt; 750-cca/78-amp-hr	12-volt; 650-cca/72-amp-hr	Dual 12V-volt 750CCA 78-AH	Dual 12V-volt 750CCA 78-AH
Standard Alternator	250-amp (XL/XLT/Lariat/King Ranch/Platinum)	160-amp (XL/XLT)	195-amp (XL/XLT)	195-amp (XL/XLT)
		200-amp (Lariat/King Ranch/Platinum)	250-amp (Lariat/King Ranch/Platinum)	250-amp (Lariat/King Ranch/Platinum)
			352-amp (Limited)	352-amp (Limited)
Cooling system	Pressurized series flow	Pressurized series flow	Pressurized series flow	Pressurized series flow
Oil Life Monitor	Oil Life Monitor^®	Oil Life Monitor^®	Intelligent Oil Life Monitor^®	Intelligent Oil Life Monitor^®
Cylinders	8	8	8	8
Cylinder head	Aluminum	Aluminum	Aluminum	Aluminum
Block material	Cast Iron	Cast iron	Compacted graphite iron	Compacted graphite iron
Valve operation	Push rod/rocker arms	Roller rocker shaft	Push rod/rocker arms	Push rod/rocker arms
Camshaft drive	Silent chain	Silent chain	Gear	Gear
Bore	4.22" (107.2 mm)	4.22"	3.90"	3.90"
Stroke	3.98" (101 mm)	3.68"	4.25"	4.25"
Compression ratio	10.5:1	10.8:1	15.2:1	15.2:1
Horsepower/rpm	430 @ 5,500	405 @ 5,000	475 @ 2,600	500 @ 2,600
Torque lb.-ft./rpm	485 @ 4,000	445 @ 4,000	1,050 @ 1,600	1,200 @ 1,600
Recommended fuel	87 octane (Not e85 compatible)	87 octane (Not e85 compatible)	Ultra-low sulfur diesel/B20	Ultra-low sulfur diesel/B20

Transmission Specifications
Transmission Type	TorqShift^®-G ten-speed automatic w/ Selectable Drive Modes: Normal, Eco, Slippery Roads, Tow/Haul (6.8L Gas)
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	1st	4.696:1
	2nd	2.985:1
	3rd	2.146:1
	4th	1.769:1
	5th	1.520:1
	6th	1.275:1
	Reverse	-4.866:1

Transmission Type	TorqShift 10-speed SelectShift Automatic^®
Case material	Aluminum
Power Takeoff	Live-drive access on driver side
Gear ratios	First	4.615:1
	Second	2.919:1
	Third	2.132:1
	Fourth	1.773:1
	Fifth	1.519:1
	Sixth	1.277:1
	Seventh	1.1
	Eighth	0.851:1
	Ninth	0.687:1
	Tenth	0.632:1
	Reverse	-4.695:1

Towing


Conventional Towing - Maximum Loaded Trailer Weight Ratings (lbs.)
Towing
Conventional Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab
Engine with Automatic Transmission	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)
6.8L Gas V8	14,800/14,400	18,700/18,300	N/A	14,500/14,100	18,300/17,800	14,500/14,100	18,000/17,600	N/A
7.3L Gas V8	17,200/16,800	18,900/18,500	N/A	17,000/16,500	18,500/18,100	16,900/16,600	18,200/17,800	N/A
6.7L Power Stroke Turbo Diesel	18,200/20,000	24,800/24,800	25,000/25,000	19,500/22,000	26,700/26,700	19,500/22,000	27,000/27,000	30,000/30,000
6.7L High Output Power Stroke Turbo Diesel	18,200/20,000	24,800/24,800	25,000/25,000	19,500/22,000	26,700/26,700	19,500/22,000	27,000/27,000	30,000/30,000

5th Wheel / Gooseneck Towing - Maximum available Loaded Trailer Weight Ratings
	Regular Cab	Regular Cab	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab	Crew Cab
Engine with Automatic Transmission	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-250 4x2/4x4 (lbs.)	F-350 4x2/4x4 (lbs.)	F-450 4x2/4x4 (lbs.)
6.8L Gas V8	14,800/14,300	18,900/18,200	N/A	14,500/14,000	18,200/17,800	14,400/14,100	18,000/17,500	N/A
7.3L Gas V8	17,200/16,700	18,800/18,400	N/A	16,900/16,500	18,400/18,000	16,800/16,500	18,200/17,700	N/A
6.7L Power Stroke Turbo Diesel	22,900/22,500	32,600/32,000	38,600/36,900	22,000/21,500	32,000/31,600	22,000/21,600	31,800/31,300	34,700/32,500
6.7L High Output Power Stroke Turbo Diesel	23,000/22,700	32,900/32,500	40,000/36,800	22,000/21,400	32,500/32,100	22,000/21,600	32,300/31,800	34,700/33,000

Payload


Payload Package Selector	Regular Cab	SuperCab	SuperCab	Crew Cab	Crew Cab
Maximum Payload Package Selector	141.6" WB	148" WB	164.2" WB	159.8" WB	176" WB
Box Size	Long 8ft	Short 6.75ft	Long 8ft	Short 6.75ft	Long 8ft
	lbs.	lbs.	lbs.	lbs.	lbs.
F-250 6.8L SRW 4x2/4x4	4,268/3,814	4,015/3,888	4,204/3,998	3,968/4,007	4,041/3,800
F-250 7.3L SRW 4x2/4x4	4,164/3,730	3,930/3,803	4,120/3,914	3,983/3,923	4,057/3,715
F-250 6.7L SRW 4x2/4x4	4,048/3,628	3,756/3,352	3,896/3,703	3,732/3,658	3,781/3,440
F-250 6.7L HO SRW 4x2/4x4	3,903/3,883	3,711/3,607	3,881/3,888	3,717/3,643	3,766/3,625
F-350 6.8L DRW 4x2/4x4	8,000/7,313	N/A	7,294/6,877	N/A	7,072/6,649
F-350 6.8L SRW 4x2/4x4	4,557/4,529	4,411/4,776	4,602/5,067	4,257/4,729	4,528/4,418
F-350 7.3L DRW4x2/4x4	7,647/7,216	N/A	7,197/6,780	N/A	6,976/6,553
F-350 7.3L SRW 4x2/4x4	4,341/4,807	4,194/4,560	4,385/4,356	4,141/4,512	4,312/4,201
F-350 6.7L DRW 4x2/4x4	6,965/6,534	N/A	6,519/6,100	N/A	6,332/5,839
F-350 6.7L SRW 4x2/4x4	4,390/4,860	4,268/4,639	4,439/4,811	4,190/4,454	4,149/4,587
F-350 6.7L HO DRW 4x2/4x4	6,950/6,519	N/A	6,504/6,085	N/A	6,316/5,824
F-350 6.7L HO SRW 4x2/4x4	4,375/4,844	4,253/4,623	4,423/4,796	4,175/4,439	4,134/4,572
F-450 6.7L DRW 4x2/4x4	6,297/5,898	N/A	N/A	N/A	5,638/5,336
F-450 6.7L HO DRW 4x2/4x4	6,457/5,883	N/A	N/A	N/A	5,622/5,320

Payload capability will be reduced based on trim series, option content and passengers. See label on door jamb for carrying capacity of a specific vehicle.

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electrified

What does going electric mean?

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you

2024 Ford Super Duty® F-450® XLT Truck | Model Details & Specs | Ford.com

2024 Super Duty® F-450® XLT

Key Features

6.7L Power Stroke® V8 Turbo Diesel Engine

FordPass® Connect With 5G Wi-Fi

Pre-Collision Assist® With Automatic Emergency Braking and Forward Collision Warning

Exterior Features

Appearance

Standard

Optional

Protection

Standard

Optional

Windows & Glass

Standard

Optional

Interior Features

Climate

Standard

Optional

Comfort & Convenience

Standard

Optional

Entertainment Systems

Standard

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Power & Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Safety Features

Safety

Standard

Security

Standard

Specifications

Highlights

Exterior

Interior

Capacities

Chassis

Engine

Towing

Payload

2024 Super Duty®
F-450® XLT

6.7L Power Stroke^® V8 Turbo Diesel Engine

FordPass^® Connect With 5G Wi-Fi

Pre-Collision Assist^® With Automatic Emergency Braking and Forward Collision Warning
