Mustang 1986-2001 Clutch Kit
SKU: M7560A302N
About This Item
Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.

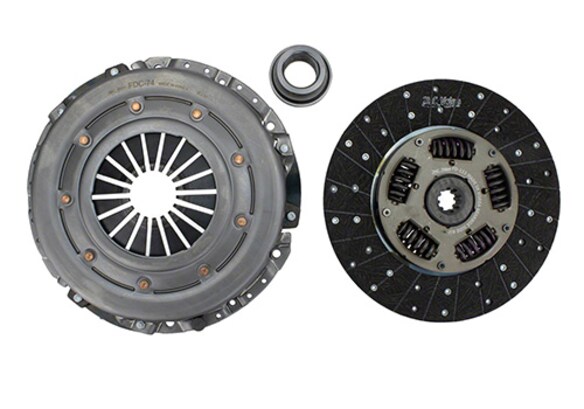

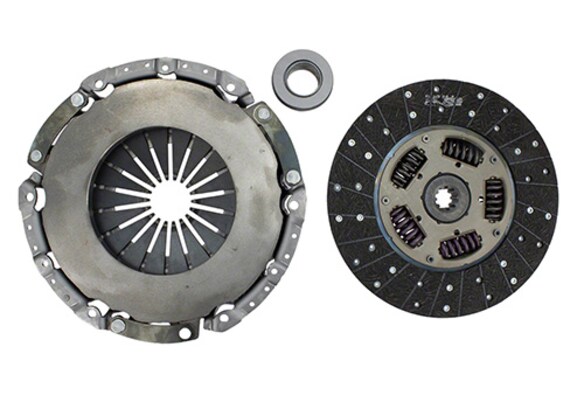

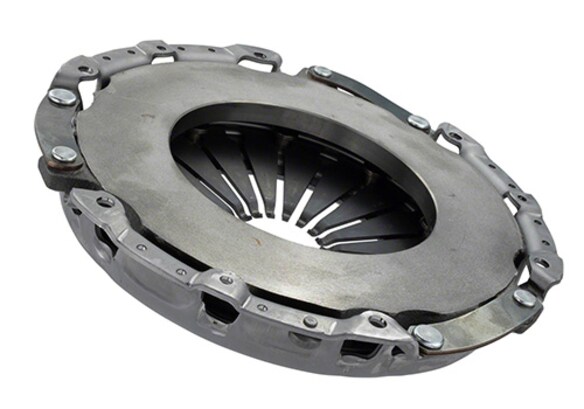

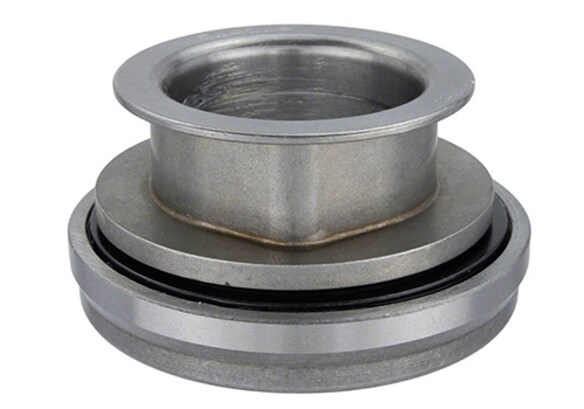

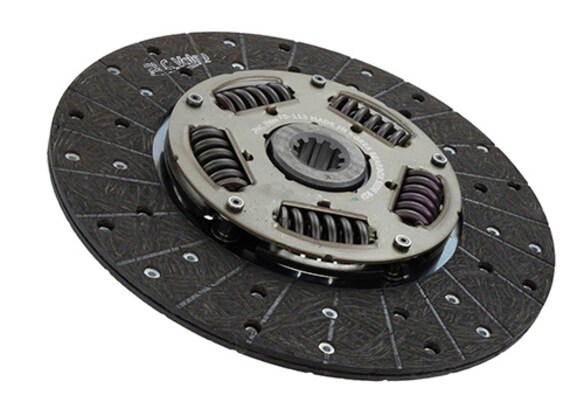

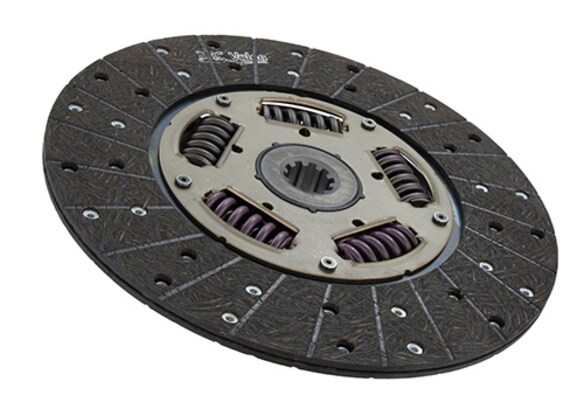

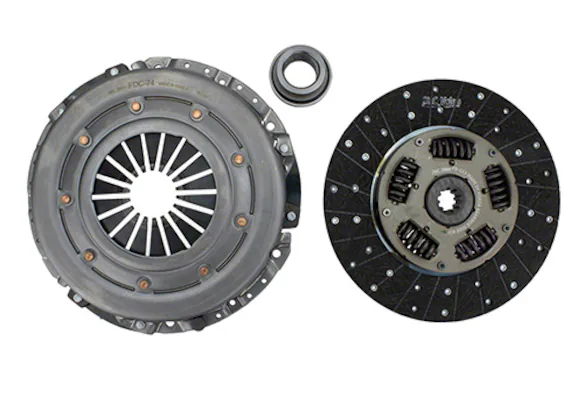

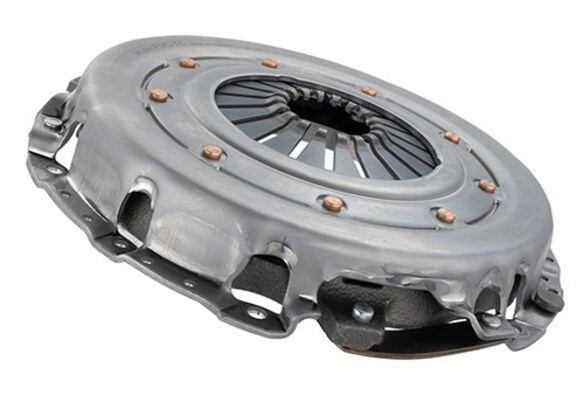

Consists of clutch disc, pressure plate and throwout bearing
Heavy duty diaphragm type clutch assembly with approximately 40 % more capacity than stock Mustang clutch.
Clutch disc has 1-1/16-inch - 10 spline hub.
OK to mix and match Ford Racing clutch discs and pressure plates but do NOT install a FRPP pressure plate with a stock disc or vice-versa as disengagement problems may occur.
Metric fasteners and dowel pins must be used with 10.5" clutches M-6397-A302
Clutches have NO warranty!
Also recommended Roller Pilot Bearing M-7600-A or M-7600-B.
| CLUTCHES | ||||
| PART NUMBER | DESCRIPTION | ENGINE | DIAMETER | TECHNICAL INFORMATION |
| M-7550-X302 (1)(2)(3) | Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. |
| M-7550-T302 (1)3 | Disc | V-8 | 10.5" | HD disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Designed for 26 spline shaft on M-7003-R58C, and M-7003-R58H transmissions. Will work with M-7563-A302N/B302/C302N/D302 pressure plates. |
| M-7563-B302 (1)(3)(4) | Pressure Plate | V-8 | 10.5" | HD diaphragm type with centrifugal assist. Has approx. 25% more capacity than stock Mustang unit. Cast iron plate. |
| M-7560-A302N (1)(2)(3)(4) | Mustang HD Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-A302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-C302N (1)(2)(3)(4) | Mustang HD "King Cobra" Kit | V-8 | 10.5" | Consists of M-7550-A302N disc, M-7563-C302N pressure plate and D9ZZ-7548-A throwout bearing. |
| M-7560-T46 (1) | 11" Clutch Kit | 4.6L | 11" | Kit contains 11" clutch disc with 26 spline hub and pressure plate. Clutch disc with carbon/copper lining on flywheel side and carbon lining on pressure plate side. Centrifugal assist design pressure plate with 25% more torque capacity then production Cobra. Used when installing M-7003-R58C and M-7003-R58H transmissions into 1996-04 4.6L Mustangs with production 11" flywheel or Ford Racing flywheels M-6375-F46, M-6375-G46 or M-6375-R00. |
- (1) Clutches have NO warranty!
- (2) All clutch discs have 1.0625"-10 spline hub.
- (3) Fits all 1986-01 Mustang GT, 1993-98 Cobra with T-5 or T45 Transmissions.
- 2001-04 Mustang GT with 3650 transmission and 1999-03 Cobra uses an 11" clutch.
- OK to mix and match Ford Performance Parts clutch discs and pressure plates but do NOT install a FPP pressure plate with a stock disc or vice-versa as disengagement problems may occur. Installation of 10.5" clutch assemblies on 1979-85 vehicles equipped with 10" clutch requires new flywheel (see page 116). Metric fasteners and dowel pins must be used with 10.5" clutches. 4 Requires metric pressure plate bolts N602549-S51M and alignment dowel pins D1FZ-6397-B. Ford Performance Parts kit M-6397-A302 (see page 116).
