2027 Transit® Passenger Van XL

• Body Side Moldings – Carbon Black
• Front License Plate Bracket
• Front Bumper – Carbon Black, Body Colored with Lower Valence
• Antenna – Fender Mounted
• Rear Bumper – Carbon Black, Without Integral Step
• 50/50 Hinged Rear Door. 180-Degree Opening Is Standard on All Low/Medium-roof Cargo Vans and All Passenger Vans
• Sliding Passenger-Side Door
• Halogen Headlamps with Autolamp
• Auto High Beam Headlamps
• Roof and Side Marker Lamps. Included on DRW
• Center High Mount Stop Lamp (CHMSL)
• Taillamps
• Honeycomb Mesh Grille with Carbon Black Surround
• Rear Recovery Tow Hook
• Step Well Pads – Black
• Roof Marker Lamp Delete
• Mirrors - Short-Arm - Power Adjusting, Manual-Folding

Optional

• 50/50 Hinged Rear Door. 253-Degree Opening Is Standard on All High Roof Cargo Vans and OPTIONAL on All Low/Medium-roof Variants and High-Roof Passenger Vans
• Front Bumper – Body Colored. Includes Front Fog Lamps
• Black High-Intensity Discharge (HID) Headlamps
• Front Fog Lamps (Included in Ford Co-Pilot 360® 2.0 Package)
• 253-Degree Rear Door Opening. Standard on LWB/LWB-EL High Roof Cargo Vans. Optional on Low/Medium Roof and High Roof Passenger Van
• Mirrors - Short-Arm - Power Adjusting, Power-Folding Heated with Turn Signals
• Mirrors Long Arm - Power Adjusting Manual Folding
• Mirrors Long Arm - Power Adjusting, Manual-Folding, Heated with Turn Signals Includes BLIS® and therefore requires Ford Co-Pilot360® Assist 2.0
• Passenger Running Board. Covers the B-C Pillar Passenger-Side
• Extended Length Passenger Running Board - Covers the A-B Pillar Driver Side and A-C Pillar Passenger Side
• Wheel Well Liners - Black (Front Only)

Windows & Glass
Standard

• Windows All-Around
• Rear-Windows
• Front Solar Tinted Glass
• Rear Solar Tinted Glass (Std. on Low Roof Only)
• Windows-All-Around, Fixed. Includes Rear-Window Defroster

Optional

• Privacy Glass. Includes Rear-Window Defroster

Exterior
Optional

• Tow/Haul Mode with Trailer Wiring Provisions
• Trailer Brake Controller (TBC)

Protection
Optional

• Keyless Entry Keypad

• Fuel Tank – Capless Fuel Fill, 25 U.S. Gallons (Midship)
• Electric Power Assisted Steering (EPAS)
• Steering – Power Rack and Pinion
• Steering Wheel – Tilt and Telescoping
• Front – Independent Macpherson-Strut, Stabilizer Bar
• Rear – Leaf Springs, Heavy-Duty Gas Shock Absorbers. Gas Engine Configurations Only

Optional

• Extended Range Fuel Tank – Capless Fuel Fill, 31 U.S. Gallons (Midship)
• Heavy-Duty Front Axle

Wheels & Tires
Standard

• Tires – Single Rear Wheel (SRW) 235/65r16c 121/119 R BSW All-Season
• Tires – Dual Rear Wheel (DRW) 205/75r16c 113/111 BSW All-Season
• 16" Silver Steel Wheel with Black Hubcap (SRW)
• 16" Heavy-Duty Silver Steel Wheel. Includes Silver Hubcaps with Exposed Lug Nuts (DRW)
• Full-Size Spare Tire and Wheel
• Spare Tire and Wheel. Includes 3 Ton Jack, Tool Kit and Full-Size Matching Tire
• Tire Inflator and Sealant Kit Delete

Optional

• 16" Steel Wheel with Full Silver Wheel Cover. SRW
• 16" Silver Aluminum Alloy Wheel. SRW
• 16" Aluminum Alloy Wheel with Black Accents SRW
• 16" Sparkle Silver Alloy Wheel SRW
• 16" Matte Black Alloy Wheel (Heavy-Duty Front Axle Configurations Only) SRW
• 16" Heavy-Duty Forged Aluminum Wheel (Heavy-Duty Front Axle Configurations Only). DRW
• Spare Tire and Wheel Delete

Power
Standard

• Alternator – 250 amp (3.5L PFDi V6 and 3.5L EcoBoost® V6 Engines)
• Single AGM Battery – 70 amp-hr
• Brakes – 4-Wheel Anti-Lock Disc Brakes
• Parking Brake – Electric (SRW Configurations Only)
• 3.5L PFDi V6
• 10-Speed Automatic Overdrive with SelectShift®
• Parking Brake – Mechanical (9,950lb DRW GVWR Configurations Only)

Optional

• 3.5L EcoBoost® V6
• Auxiliary Fuse Panel with High Spec Interface Connector
• Modified Vehicle Wiring System
• Dual AGM Batteries. (70 amp-hr Each)
• Engine Block Heater (400W Rating)

• Medium Center Console with Integrated Shifter and Dual Cupholders
• Cruise Control - Includes Adjustable Speed Limiting Device (ASLD)
• Glove Box – Locking
• Push-Button Start
• Rearview Mirror (When Equipped with Rear Glass)
• Front Dome Lamp with Map Lights and Theater Dimming
• Full Rear Compartment Lighting
• Accessory Delay – 30 Minutes
• A-Pillar Assist Handles (Driver and Passenger-Side)
• B-Pillar Assist Handle (Passenger-Side) Cargo Van - Low Roof Only
• Headliner – Cloth, Full Length
• Sun Visors
• Ford Co-Pilot360® (Cargo Van/Passenger Van)
• 5G Modem
• 8" Cluster Display - Tachometer, Fuel Level and Coolant Temperature (Gas Engines)
• PowerPoint – 12V - One Is Located in the Instrument Panel and One in Center Console
• USB Ports – 5 amps - One Is Located in Each Row
• Passive Start with Push-Button Functionality
• Automatic Rain-Sensing Windshield Wipers
• B-Pillar Assist Handle (Passenger-Side). Standard on Low Roof Cargo Van
• Rearview Mirror. Included with Rear Glass Window Configurations
• Full Rear Compartment Lighting. Includes Cargo Area LED Lights at C-Pillar, D-Pillar and Mid-Ship (EL-WB Only). Rear Compartment LED Switch Only Included on Cargo Van
• Lane-Keeping System
• Pre-Collision Assist® with Automatic Emergency Braking (AEB)
• Post-Collision Braking
• Rear View Camera
• Horn – Single-note
• 15-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats. Standard with Extended Length Passenger Van

Optional

• Close Assist Feature on Side Sliding Door. Not Available on Low Roof. Intelligent Access with Push-Button Start Included
• Digital Rearview Mirror
• Front Overhead Shelf
• Large Center Console. Includes An Integrated Shifter, A Dual Cup Holder and An Additional Storage Area
• Intelligent Access with Push-Button Start. Included with Close Assist
• Ford Co-Pilot360® Assist 2.0: For Cargo and Passenger Van
• Upfitter Package
• Vehicle Integration System 2.0
• Back Up Alarm
• Heavy Duty Tray Style Floor Mats (Front)
• All-Weather Floor Mats (Front)
• Adaptive Cruise Control
• 360-Degree Camera
• Blind Spot Information System (BLIS®) with Cross Traffic Alert

Seating
Standard

• Driver and Front-Passenger Manual Reclining Bucket Seats with Adjustable Headrest
• Manual Driver-Side Lumbar Support
• 12-Passenger Seating. 1st Row: 2 Seats, 2nd Row: 3 Seats, 3rd Row: 3 Seats, 4th Row: 4 Seats. Standard with Long Length Passenger Van
• Dark Palazzo Gray Cloth, 2-Way Manual Driver and 2-Way Manual Passenger Seats

Optional

• Dark Palazzo Gray Vinyl, 2-Way Manual Driver and 2-Way Manual Passenger Seats with Driver Seat Armrest Only
• Dark Palazzo Gray Vinyl, 2-Way Manual Driver and 2-Way Manual Passenger Seats with Driver and Passenger Seat Armrests
• 1-Passenger and 2-Passenger Seating
• 15-Passenger Seating. 1st row: 2 seats, 2nd row: 3 seats, 3rd row: 3 seats, 4th row: 3 seats, 5th row: 4 seats. Optional with Long Length Passenger Van

Climate
Standard

• Air Conditioning - Front and Rear
• Front/Rear Aux A/C and Heater (Driver Controlled)

Entertainment Systems
Standard

• SYNC® 4 with 12" Center Display, AM/FM Stereo, Bluetooth, Dual USB Ports, Connectivity Package (One-Year Complimentary)

Optional

• Connected Navigation Hardware

• Ford Connectivity Package (One-Year Complimentary)
• Telematics Essentials
• Ford Security Package (One-Year Included)

Optional

• Heavy-Duty Trailer Tow Package
• Ford Connectivity Package (One-Time Purchase – 7 Years)
• Keys: 2 Additional (4 Total) with Key Fobs
• Auxiliary Heater/AC Prep Package Without Rear Controls
• Builder’s Prep Package
• Ford Security Package (One-Time Purchase – 7 Years)

• SOS Post-Crash Alert System™
• Tire Pressure Monitoring System (TPMS)
• Driver and Passenger Airbags

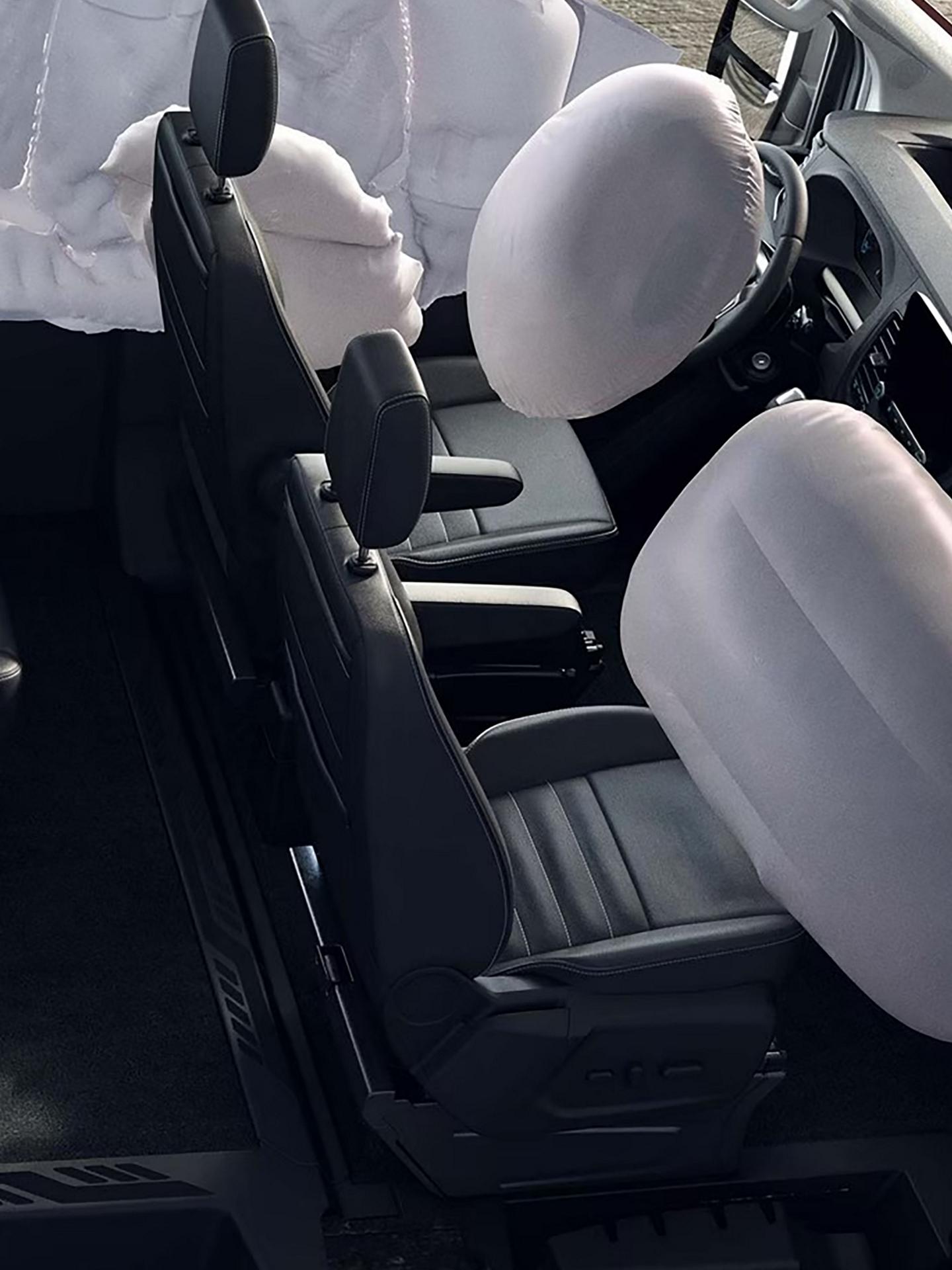

• Safety Canopy® Side-Curtain Airbags

Security
Standard

• SecuriLock® Passive Anti-Theft System (PATS) with Engine Immobilizer
• Perimeter Alarm

Yes, the Transit® Passenger Van XL is available with Intelligent AWD or RWD.

The Transit® Passenger Van XL offers a roof height selection of low, medium, and high. Exterior heights range from 82.3" to 108.4". Cargo space is dependent on model.

Low Roof:

Overall Height: 82.3"

Cargo Room (behind first row): Up to 259.4 cu ft for Low Roof Passenger

Medium Roof:

Overall Height: 97.1"

Cargo Room (behind first row): Up to 340.0 cu ft for Medium Roof Passenger

High Roof:

Overall Height: 108.4"

Cargo Room (behind first row): Up to 434.4 cu ft for High Roof Passenger Extended Length

The Ford Transit® Passenger Van XL offers a selection of long or extended lengths.

Long:

Transit® Passenger Van XL

Wheelbase: 235.5"

Max Payload Capacity: Up to 3,275 lbs ^*

Extended:

Transit® Passenger Van XL

Wheelbase: 263.9"

Max Payload Capacity: Up to 3,402 lbs ^*

Fuel tank sizes are the standard U.S. 25-gallon tank with an optional extended range 31-gallon tank.

The Transit® Passenger Van XL can be configured to seat 2, 12, or 15 passengers.
