2024 Ranger^® Raptor^®

Build & Price

2024 Ford Ranger® Raptor® Payment Estimator details

¹
EPA-Est. MPG City/Hwy²
Seating for

5

Seating for
View all offers

2024 Ford Ranger® Raptor® Payment Estimator details

View all offers

Key Features

A 2024 Ford Ranger® Raptor® truck is being driven up a sandy dune

3.0L EcoBoost^® V6 Performance Engine

The unique to Ranger^® Raptor^® 3.0-liter EcoBoost^® V6 generates the best-in-class* 430 lb.-ft. of torque and 405 horsepower. ** It's paired with a full-time 4x4 drive system, an electronically controlled on-demand two-speed transfer case and front and rear locking differentials. This engine delivers all the off-road performance you could ever want and need.

*Class is Midsized Pickup Trucks.

**Horsepower and torque ratings are independent attributes and may not be achieved simultaneously.

Always consult the Owner’s Manual before off-road driving, know your terrain and trail difficulty and use appropriate safety gear.

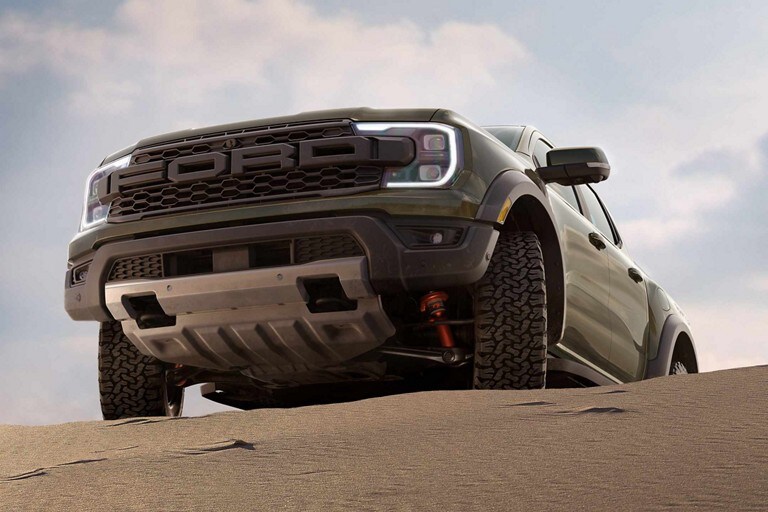

A close-up of the front bumper of a 2024 Ford Ranger® Raptor® on a desert sand dune

Fox^™ Live Valve Shocks

Class-exclusive* 2.5-inch FOX^™ Live Valve shocks help you chase your next adventure at high speeds and on rough terrain.

*Class is Midsized Pickup Trucks.

Always consult the Owner’s Manual before off-road driving, know your terrain and trail difficulty and use appropriate safety gear.

FOX^™ and Live Valve are registered trademarks of FOX Factory, Inc.

2024 Ford Ranger® steering wheel and screen showing 360 camera in use

360-Degree Camera

Finding yourself in a tight spot? The available front, rear and mirror-mounted sideview cameras provide a bird’s-eye view around your pickup. Standard on LARIAT^® and Ranger^® Raptor^®. Available on XLT.

XLT shown.

Exterior Features

Appearance

Standard

Autolamp - automatic on/off headlamps
Bumper, Front - Steel, Frame-Mounted
Bumper, Rear - Steel
Bumper - Front/Rear - Steel (Gray Painted)
Cargo lamp, integrated with center high-mounted stop lamp (CHMSL) - LED
Daytime Running Lamps - LED
Headlamps - LED Projector
Fog lamps - LED
Grille - Unique Ford Lettering Front Grille - Black
Tow hooks - Front, two (4x4)
Tow Hooks - Rear, Two (Raptor^® Only)
Hooks - Cargo box tie-down (6)
Bash Plate - Exposed Steel (Heavy Duty) - Front & Engine
Handles, door - Body-Color
Exhaust - Dual - Rear
Side Mirrors - Power-Folding, Power Glass with Heat, Turn Signal Indicator, and Security Approach Lamps
Side Mirrors - Skull Caps - Body-Color
Side Step - Black
Tailgate - Power Locking
Wheelarch Flairs - Extra Large
Zone Lighting
LED Bed Lighting
Spare Tire Carrier - Rear underframe

Comfort and Convenience

Standard

Easy Fuel^® capless fuel filler

Windows & Glass

Standard

Window - Rear - Power-Sliding Rear window w/Privacy Glass and Defrost
Windows - First-row - Power, one-touch up/down driver side
Windows - Second-row - Power

Interior Features

Climate

Standard

Dual-Zone Electronic Automatic Temperature Control

Comfort & Convenience

Standard

120V/400W In-Cab and In-Bed Power Outlets
12" Digital Instrument Cluster
12" Display in Center stack
Pre-Collision Assist with Automatic Emergency Braking

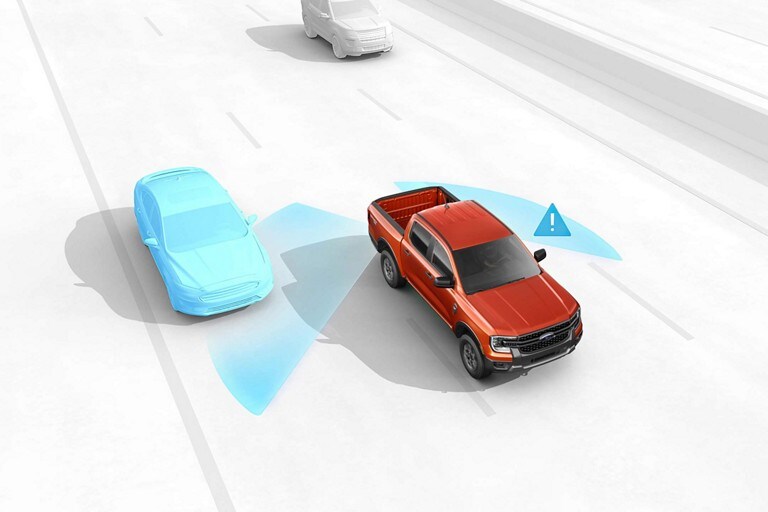

BLIS^® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Coverage
Lane-Keeping System
Front Parking Sensors
Active Park Assist 2.0
Ambient lighting
Automatic high beams
Color-coordinated carpet with carpeted floor mats
All-Weather Floor Mats (with Carpet Mats)
Locking Glove Box
Cruise control
Adaptive Cruise Control w/Stop & Go
Dome light
Fade-to-off interior lighting
Flow-through center console with floor shifter
Grab handles (A-Pillar) - Front, Passenger-side
Intermittent windshield wipers
Rain-sensing wipers
Outside temperature display
Overhead console
Power Door Locks
Intelligent Access with Push-Button Start
Powerpoint, 12v
Electrochromic Rearview Mirror, Auto-dimming
Reverse Sensing System
Steering wheel - Leather-wrapped (Heated)
Steering wheel, manual tilt/telescoping
Universal garage door opener
Visors - Driver and Passenger illuminated covered mirrors
Wireless Charging Pad

Entertainment Systems

Standard

SiriusXM^® Satellite Radio
B&O^® Sound System by Bang & Olufsen^® w/HD Radio, 10 Speakers including Subwoofer
FordPass Connect^® with 4G LTE Wi-Fi Hotspot
911 Assist^®
Applink^®
USB Ports (A & C)
SYNC^®4A
Connected Built-in Navigation (3 years included)

Seating

Standard

Seats - Front - Leather-Trimmed Front Bucket - 10-way power driver / 8-way power passenger (with heat and driver memory)
Seats – Rear – Fold Flat Outboard Leather-Trimmed Bench Seats With Armrest and Under Seat Storage

Packages

Power and Handling

Power

Standard

3.0L EcoBoost^® Engine with Auto Start-Stop Technology
10-speed SelectShift^® automatic transmission
Fuel Tank - 20-gallon

Handling

Standard

4x4
Axle, Front - Independent Front Suspension
Brakes - 4-Wheel Disc with ABS
Electronic Power-Assist Steering (EPAS)
Electronic-Locking Rear Differential
Watts Link Rear Suspension
Locking Front & Rear Axles
Fully-boxed, high-strength steel frame
Suspension - Front - Forged Aluminum double A-arm suspension with 2.5-inch Fox^® Live Valve Shocks
Suspension - Rear - Watts-Link rear suspension with trailing arms and 2.5-inch Fox^® Live Valve Shocks
Shock Absorbers - Front / Rear - Fox Racing Shocks with Live Valve Technology
Springs, Front - Coil
Springs, Rear - Coil
Ford Trail Control^®
MyMode
Trailer Sway Control

Optional

Engine Block Heater

Wheels & Tires

Standard

17" Gray-Painted Aluminum Wheel (Raptor)
LT 285/70R17

Optional

17" Gray-Painted Beadlock Capable Wheel (Raptor)

Safety

Standard

Digital Rear View Camera
360-Degree Camera
AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Airbags - Front, Driver and passenger
Airbags - Front, Driver and passenger seat-mounted side
Airbags - Safety Canopy^® side curtains
Curve Control
Four-Wheel Anti-Lock Brakes
Child Seat Tether Anchors
Belt-Minder^® (safety belt reminder)
Child-proof rear-door-locks
Tire Pressure Monitoring System (TPMS)

Security

Standard

Perimeter anti-theft alarm
Remote Keyless Entry System
Remote Start System
SecuriLock^® passive anti-theft system
SOS Post-Crash Alert System^™

Accessories

Specifications

Highlights

Available Engines	2.3L EcoBoost^® I-4	2.7L EcoBoost^® (Late Avail.)**	3.0L EcoBoost^®
Horsepower	270	315 (targeted)	405
Torque (lb.-ft.)	310 lb.-ft.	400 lb.-ft. (targeted)	430 lb.-ft.
Auto Start/Stop Technology	Standard	Standard	Standard
EPA-Estimated Ratings - 4x2*	N/A	N/A	N/A
EPA-Estimated Ratings - 4x4*	N/A	N/A	N/A
*Actual mileage will vary.		**Late Availability - Summer 2024

	2.3L EcoBoost^®	2.3L EcoBoost^®	2.7L EcoBoost®*	3.0L EcoBoost®
Available Cab Types	SuperCrew^®	SuperCrew^®	SuperCrew^®	Raptor^®
Drive Type	4x2	4x4	4x4	4x4
Max Seating Capacity	5	5	5	5
Wheelbase	128.7 in.	128.7 in.	128.7 in.	128.7 in.
Maximum Conventional Towing (When properly configured)	7,500 lbs.	7,500 lbs.	7,500 lbs.	5,510 lbs.
Maximum Payload (When properly configured)	1,805 lbs.	1,711 lbs.	1,542 lbs.	1,375 lbs.
Min Vehicle Base Curb Weight	4,203 lbs.	4,415 lbs.	4,415 lbs.	5,325 lbs.
			*Late Availability - Summer 2024
Available Trims	XL / XLT / LARIAT / RAPTOR
Transmission - 10-Speed SelectShift® Automatic	Standard
Available Drive Types	4x2 / 4x4 / Full Time 4x4

	Time	Distance
Warranty - Bumper to Bumper	3 years	36,000 miles
Warranty - Powertrain	5 years	60,000 miles
Warranty - Safety Restraint System	5 years	60,000 miles
Warranty - Aluminum Body Panels	5 years	Unlimited miles
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited miles
Warranty - Paint Adhesion	5 years	Unlimited miles
Warranty - Roadside Assistance Program	5 years	60,000 miles

Exterior

Exterior Dimensions - Cab
Cab style	SuperCrew^®		Raptor SuperCrew^®
Pickup box style	Styleside	Styleside	Styleside
Drive system	4x2	4x4	Full Time 4x4
Wheelbase	128.7 in.	128.7 in.	128.7 in.
Overall length	210.6 in.	210.6 in.	210.9 in.
Cab height	73.9 in.	74.4 in.	75.9 in.
Width - Excluding mirrors	75.5 in.	79.8 in.	79.8 in.
Width - Including mirrors	86.7 in.	86.7 in.	86.7 in.
Width - Mirrors folded	79.0 in.	79.0 in.	79.0 in.
Track width - Front	63.8 in.	63.8 in.	67.3 in.
Track width - Rear	63.8 in.	63.8 in.	67.3 in.
Overhang - Front	34.1 in.	34.1 in.	33.9 in.
Overhang - Rear	47.8 in.	47.8 in.	48.2 in.
Angle of approach	29.2 degrees	30.2 degrees	33.0 degrees
Angle of departure	25.1 degrees	25.8 degrees	26.4 degrees
Ramp breakover angle	21.8 degrees	23.0 degrees	24.2 degrees
Ground clearance	8.8 in.	9.3 in.	10.7 in.
Front bumper to back of cab	143.2 in.	143.2 in.	143.2 in.

Exterior Dimensions - Cargo Box
Cargo box style	Styleside (4x2)	Styleside (4x4)	Styleside Raptor
Inside Length (at floor)	59.6 in.	59.6 in.	59.6 in.
Width between wheelhouses	48.2 in.	48.2 in.	48.2 in.
Inside Height	20.8 in.	20.8 in.	20.8 in.
Cargo box volume	43.5 cu. Ft.	43.5 cu. Ft.	43.5 cu. Ft.

Interior

Interior Dimensions
Cab style	SuperCrew^®
Head room - Front	41.0 in.
Head room - Rear	38.3 in.
Shoulder room - Front	57.1 in.
Shoulder room - Rear	56.7 in.
Hip room - Front	55.9 in.
Hip room - Rear	54.1 in.
Max Leg room - Front	43.7 in.
Leg room - Rear	34.6 in.

Capacities

Cab style	SuperCrew^® 4x2	SuperCrew^® 4x4	Raptor SuperCrew^®
Pickup box style	Styleside	Styleside	Styleside
Wheelbase	128.7 in.	128.7 in.	128.7 in.
Drive system	4x2	4x4	4x4
Seating capacity	5	5	5
Fuel Capacity	18 gal.	18 gal.	20 gal.
Base Curb Weight - 2.3L EcoBoost®	N/A	N/A	N/A

Engine

Engine Specifications
Engine type	2.3L EcoBoost^® I-4	2.7L EcoBoost^®**	3.0L EcoBoost^®
Auto Start/Stop Technology	Standard	Standard	Standard
Engine Control System	PCM	PCM	PCM
Horsepower (SAE net @ rpm)	270	315	405
Torque (lb.-ft. @ rpm)	310 lb.-ft.	400 lb.-ft.	430 lb.-ft.
Compression ratio	10.1:1	10.0:1	10.5:1
Bore (in.)	3.45 in.	3.267 in.	3.36 in.
Stroke (in.)	3.7 in.	3.267 in.	3.38 in.
Displacement (cu. in.)	140 cu in.	165 cu. in.	180 cu. in.
Fuel delivery	Direct Injection	Port fuel and direct injection	Port fuel and direct injection
Recommended Fuel	87 Octane	87 Octane	91 Octane
Oil Capacity	6.2 quarts	N/A	N/A
EPA-Estimated Ratings - 4x2*	N/A	N/A	N/A
EPA-Estimated Ratings - 4x4*	N/A	N/A	N/A
EPA-Estimated Ratings - Raptor*	N/A	N/A	N/A
Transmission type	Electronic 10-speed automatic	Electronic 10-speed automatic	Electronic 10-speed automatic
Transmission - Tow/Haul	Standard	Standard	Standard
Transmission - SelectShift^® w/ Progressive Range Select	Standard	Standard	Standard
Engine block material	Aluminum	Compacted Graphite Iron	Compacted Graphite Iron
Cylinder head material	Aluminum	Aluminum	Aluminum
*Actual mileage will vary.
**Late Availability - Summer 2024

Chassis

Chassis Specifications
Chassis Type	Ranger^®	Ranger^® Raptor^®
Front suspension	Independent short-long arm and solid stabilizer bar	Forged Aluminum double-A arm suspension with 2.5-inch Fox^® Live Valve Shocks
Rear suspension	Hotchkiss-type non-independent live, parabolic leaf springs and outboard shock absorbers	Watts-Link rear suspension with trailing arms and Fox^® Live Valve Shocks
Front and rear shocks	Gas-Pressurized	Fox Racing Shocks with Live Valve Technology
Brakes	Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac electronic stability control	Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac^® electronic stability control
Steering	Electric power-assisted, rack-and-pinion	Electric power-assisted, rack-and-pinion

Towing

Maximum Conventional Towing Capabilities
SuperCrew^®
Drive Type	4x2	4x4	4x4	Raptor 4x4
Engine with Automatic Transmission	2.3L EcoBoost^® I-4	2.3L EcoBoost^® I-4	2.7L EcoBoost^® (Late Avail)**	3.0L EcoBoost^® I-4
Wheelbase	128.7 in.	128.7 in.	128.7 in.	128.7 in.
Axle Ratio	3.73	3.73	3.73	4.27
GCWR	12,368 lbs.	12,588 lbs.	12,743 lbs.	11,464 lbs.
Maximum Conventional Towing Capabilities*	7,500 lbs.	7,500 lbs.	7,500 lbs.	5,510 lbs.
*When equipped with available trailer tow package.
**Late Availability - Summer 2024

Payload

Maximum Payload Capabilities
SuperCrew^®	2.3L EcoBoost^®		2.7L EcoBoost^®*	3.0L EcoBoost^®
Drive Type	4x2	4x4	4x4	Raptor 4x4
Wheelbase	128.7 in.	128.7 in.	128.7 in.	128.7 in.
GVWR	6,050 lbs.	6,170 lbs.	6,170 lbs.	6,790 lbs.
Maximum Payload Capabilities	1,805 lbs.	1,711 lbs.	1,542 lbs.	1,375 lbs.
*Late Availability - Summer 2024

Build & Price
Search Inventory
Request Quote

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electric & Hybrid

What does going electric mean?

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you

2024 Ranger® Raptor®

Key Features

3.0L EcoBoost® V6 Performance Engine

Fox™ Live Valve Shocks

360-Degree Camera

Exterior Features

Appearance

Standard

Comfort and Convenience

Standard

Windows & Glass

Standard

Interior Features

Climate

Standard

Comfort & Convenience

Standard

Entertainment Systems

Standard

Seating

Standard

Packages

Packages

Standard

Standard Features

Standard

Power and Handling

Power

Standard

Handling

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Security

Standard

Accessories

Exterior

Optional

Specifications

Highlights

Exterior

Interior

Capacities

Engine

Chassis

Towing

Payload

Build & Price

Search Inventory

Request Quote

2024 Ranger^® Raptor^®

3.0L EcoBoost^® V6 Performance Engine

Fox^™ Live Valve Shocks
