Handling
Standard
- Variable-Assist Power Steering
- Electric Parking Brake
- Electronic Power-Assist Steering (EPAS)
- 4-Wheel Disc Brakes With ABS
- Electronic Brake Boost – (Hybrid only)
- Unibody Construction
1
2024 Maverick® XLT
-
-
EPA-Est. MPG City/Hwy2
23/30
EPA-Est. MPG City/Hwy 2 -
Available Payload
1,500 lbs.
Available Payload
Key Features
Navy Pier/Medium Slate Interior: Unique Cloth Seats
Step up your style with bucket seats, manual six-way adjustable driver seat and manual four-way adjustable passenger seat. Standard on XLT.
...less

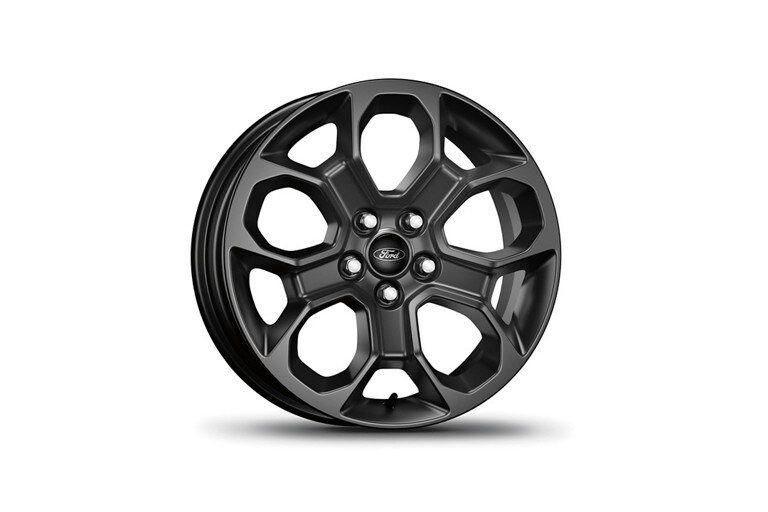

17-Inch Carbonized Gray-Painted Aluminum Wheels
Standard on the 2024 Ford Maverick® XLT truck.
...less

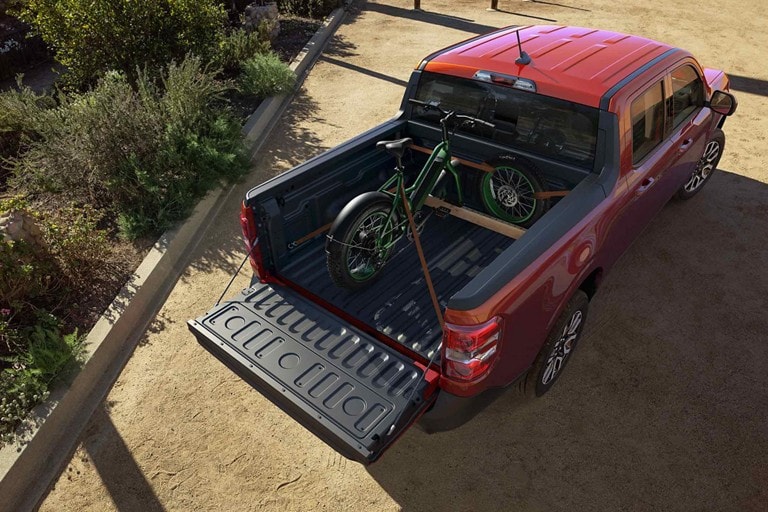

FLEXBED® Storage System
Do more with the FLEXBED® Storage System makes it easy to add a DIY bike rack, dividers and more. Plus, the Maverick® truck comes standard with a multiposition tailgate, six tie-downs and configurable slots, so you can set up your bed the way you want.
...less
LARIAT® model with extra-cost color option shown.
Power and Handling
Power
Standard
- 2.0L EcoBoost® Engine
- 8-Speed Automatic
- Rotary Gear Shift Dial
- 13.8 Gallon Gas Tank – (2.5L Hybrid)
- 16.5 Gallon Gas Tank – (2.0L Ecoboost®)
- Easy Fuel® Capless Fuel-Filler
- Battery Saver Technology
Optional
- 2.5-liter FHEV (Hybrid)
- Power-split: Electronic (CVT) Continuously Variable Transmission
- Drivetrain: Front Wheel Drive
- All-Wheel Drive
Wheels & Tires
Standard
- 17-Inch Carbonized Gray Painted Aluminum Wheels
- Mini Spare Tire
- P225/65R 17" A/S BSW
Optional
- 17-Inch Unique Ebony Painted Aluminum Wheel (FX4 Off-Road Package Wheels)
- 17-Inch Machine-face Carbonized Gray Painted Aluminum Wheels
- 17-Inch Machined-face Tarnished Dark Painted Aluminum with Orange Painted Pockets wheels (Tremor)
- 18-Inch Unique Machined-face Ebony Aluminum wheels (included on Black Package)
- Full-Size Spare Tire
- 225/65R17 A/S Tires
- 235/65R17 Aggressive A/T Tires
Interior Features
Climate
Standard
- Manual Air Conditioning, Single Zone
Comfort and Convenience
Standard
- Powerpoint 12V – Front (1)
- Powerpoint 12V – Rear (1)
- Steering Wheel, Black Urethane – Manual Tilt/Telescoping and Manual Locking w/ Audio Controls
- Power Door Locks and Power Windows
- Two Front USB Ports (One Type-A And One Type-C)
- FordPass® Connect
- Remote Keyless Entry
- Cruise Control
- Rear Under-Seat Storage Bins
- Keyed Ignition
- Cabin Particulate Air Filter
Optional
- Steering Wheel - Soft Vinyl Wrapped Heated Steering Wheel
- 400W/110V Outlets (One in Rear Console and One in Truck Bed)
- Remote Start System
- Power Moonroof
- Floor Liners, All-Weather Tray Style, Set
- Floor Liners, All-Weather Tray Style, Set (with Front Carpet Floor Mats)
Entertainment Systems
Standard
- 8-Inch LCD Touchscreen Center Stack
- AM/FM Stereo With 6 Speakers
- Bluetooth Connection
- 4.2-Inch Instrument Cluster Screen
Optional
- 6.5-Inch Instrument Cluster Screen
Seating
Standard
- Five-Passenger Seating
- Manual Six-Way Adjustable Driver and 4-Way Manual Adjustable Passenger With Manual Lumbar
- Navy Pier / Medium Slate Interior: Unique Cloth Seats
- Bucket Front Seats (with rear passenger side map pockets)
- Full Bench Rear Folding Seatback with Flip-Up Seat Cushions
- Rear Armrest With Integrated Cup Holders
Optional
- Power Eight-Way Adjustable Seat With Six-Way Manual Adjustable Passenger Seat
- Heated Seats
- 4-Way Headrest (Front)
Exterior Features
Appearance
Standard
- Gray Grille Bar
- Handles, Black – Door
- Handles, Black – Tailgate
- Mirrors - Black MIC
Optional
- Exposed Front Tow Hooks
- Front License Plate Bracket (STD in states where required by law)
- Unique Style w/ Tremor Orange Accents
- Mirrors - Painted Black Skull Caps
- Protective Film Hood/Fenders
- Splash Guards, Molded, Front and Rear (4-piece)
Dealer Installed Options
Optional
- Aeroskin Hood Deflectors – Smoke
- Aeroskin Hood Deflectors – Textured
- Ash Cup / Coin Holder
- Bed Cross Bars
- Bed Divider Kit
- Cargo Bed Net
- Commercial Roadside Assist Kit
- Console Vault
- Roadside Assistance Kit
- Smoker’s Package (Ash Cup With Element and Socket)
- Tailgate Lock (Theft Prevention Hinge Lock)
- Tool Box Swing Case – Driver Side (can't be combined with passenger)
- Tool Box Swing Case – Passenger Side (can't be combined with passenger)
- TOUCHLINK Truck Bed Lighting by Lumens (Bed Light System)
- Wheel Lock Kit
- Window Air Deflector (4-Piece)
Lighting
Standard
- Wiper Activated LED Headlamps
- LED Headlamps
- Incandescent Taillights
- Cargo Lamp – Integrated w/Center High-Mounted Stop Lamp (CHMSL)
Optional
- Black Headlamps
- Black Taillamps
- LED Box Lighting
Towing and Hauling
Standard
- 10 Bed Tie Downs
- Cubby Storage in Bed (Passenger Side)
- Flexbed™
- Two Standard Pre-Wired 12v Electrical Leads
Optional
- Bed Tie Down Locking Rails With Two Locking Brackets
- Trailer Hitch w/ 4-Pin
- Trailer Hitch w/ 7-Pin
- Bed Extender
- Bed Tray Liner
- Bedliner – Hard Drop-in
- Bed Mat – Removable
- Bedliner – Spray-in
- Tonneau Pickup Box Cover (Soft Folding)
- Tonneau Pickup Box Cover (Hard Trifold)
- Tonneau Pickup Box Cover (Hard Rollup)
- Trailer Brake Controller (Gas Engine Only)
Windows & Glass
Standard
- Mirrors - Manual-folding, Power Glass w/Spotter
- Rear-Window with Fixed Privacy Glass
Optional
- Mirrors - Heated Glass
Safety
Safety
Standard
- Driver and Passenger Front Airbags
- Safety Canopy® Side-Curtain Airbags
- Driver and Passenger Side Airbags
- Driver Knee Airbag
- Center Rear Seat Shoulder Belt
- Driver & Passenger Height Adjustable Retractable Seatbelts
- LATCH (Lower Anchors and Tether Anchors for Children)
- SecuriLock® Passive Anti-Theft System
- Smart Occupant Sensing airbags
- Tire Pressure Monitoring System (TPMS)
Security
Standard
- Anti-Theft Engine Immobilizer
- Power Tailgate Lock
- Perimeter Anti-Theft Alarm
Co-Pilot360® Technology
Co-Pilot360® Technology
Standard
- Auto LED High-Beam
- Autolamp – Auto On/Off LED Headlamps
- Pre-Collision Assist With Automatic Emergency Braking
- Rear View Camera
Optional
- BLIS with Cross-Traffic Alert
- Lane Departure Warning
- Lane-Keeping Aid
- Lane-Centering
- Hill Descent Control
Packages
Packages
Optional
- 4K Tow Package (Gas Engine Only)
- Ford Co-Pilot360® Package
- XLT Luxury Package
- FX4® Off-Road Package
- Tremor™ Package
- Black Package
Specifications
Highlights
| Body Type | Unibody, SuperCrew(4-Door), Compact Pickup |
| Max Seating = 5 | |
| Maximum Towing | 4,000 lbs. With Max Tow Package (4K Tow Pack) |
| Fuel Capacity | 13.8 Gallons on 2.5L Hybrid |
| 16.5 Gallons on 2.0L Gas EcoBoost® | |
| Drive Type | FWD (2.5L Hybrid or 2.0L EcoBoost®) |
| AWD (2.0L EcoBoost® Only) | |
| Available Engines | 2.5L FHEV (Hybrid) |
| 2.0L EcoBoost® (Gas engine) | |
| 2.5L Horsepower|Torque | HP = 191 Combined Horsepower @ 5,600 rpm, TQ = 155 lb.-ft @ 4,000 rpm (TQ rated for engine only not combined output) |
| 2.0L Horsepower|Torque | HP = 250 @ 5,500 rpm, TQ = 277 lb.-ft @ 3,000 rpm |
| Transmission | PowerSplit: Electronic Continuously Variable Transmission(CVT) (2.5L Hybrid) |
| 8-Speed Automatic (2.0L EcoBoost®) | |
| Wheelbase | 121.1 Inches |
| Warranty | Bumper to Bumper: 3 years / 36,000 miles |
| Powertrain: 5 years / 60,000 miles | |
| Safety Restraint System: 5 years / 60,000 miles | |
| Corrosion (Perforation only): 5 years / Unlimited miles | |
| Roadside Assistance Program: 5 years / 60,000 miles |
Exterior Dimensions
| Inches unless otherwise noted | |
| Wheelbase | 121.1 |
| Length | 199.7 |
| Height - Maximum | 68.7 |
| Width - Maximum Body Width - Measured to Body Mirrors | 83.5 |
| Width - Mirrors Folded | 77.9 |
| Vehicle Track - Front | 63.4 |
| Vehicle Track - Rear | 62.8 |
| Overhang - Front | 34.1 |
| Overhang - Rear | 44.5 |
| Front of Bumper to Back of Cab | 137.6 |
| Approach Angle (degrees) - FWD/AWD | 20.6 / 21.6 |
| Approach Angle (degrees) - FX4/Tremor | 21.6 / 30.7 |
| Departure Angle (degrees) - FWD/AWD | 21.9 / 21.2 |
| Departure Angle (degrees) - FX4/Tremor | 21.2 / 22.2 |
| Ramp Breakover Angle (degrees) - FWD/AWD | 16.6 / 18.1 |
| Ramp Breakover Angle (degrees) - FX4/Tremor | 18.1 / 19.9 |
| Ground Clearance (Minimum) (in) - FWD/AWD | 8.3 / 8.6 |
| Ground Clearance (Minimum) - FX4/Tremor | 8.6 / 9.4 |
| Curb Weight (lbs.) - 2.5L Hybrid (FWD Only) | 3,674 |
| Curb Weight (lbs.) - 2.0L EcoBoost - FWD/AWD | 3,563 / 3,731 |
| Cargo Box | Imperial (inches unless otherwise noted) |
| Lift-in Height | 30.1 |
| Pickup Body Height | 20.3 |
| Pickup Body Length at Floor | 54.4 |
| Cargo Width - Wheel House | 42.6 |
| Exposed Cargo Width | 53.3 |
| Cargo Volume (cu. ft.) | 33.3 |
Interior Dimensions
| Inches unless otherwise noted | |
| Head Room - Front | 40.3 |
| Head Room - Front (with moonroof) | 38.0 |
| Head Room - Second | 39.6 |
| Head Room - Second (with moonroof) | 39.5 |
| Leg Room - Front | 42.8 |
| Leg Room - Second | 35.9 (2.5L Hybrid) / 36.9 (2.0L) |
| Hip Room - Front | 55.4 |
| Hip Room - Second | 54.1 |
| Shoulder Room - Front | 57.3 |
| Shoulder Room - Second | 55.6 |
| Passenger Volume (cu. ft.) | 100.3 |
Drivetrain Specifications
| Engine | 2.5-liter FHEV (Optional) | 2.0L EcoBoost® (Standard) |
| Configuration | Aluminum block and head, Atkinson cycle I-4 | Aluminum block and head, I-4 |
| Manufacturing Location | Chihuahua, Mexico | Cleveland, Ohio and Valencia, Spain |
| Intake Manifold | Composite | Composite |
| Exhaust Manifold | Integrated | Integrated |
| Valvetrain | DOHC, IVCT | DOHC, Ti-VCT |
| Pistons | Aluminum | Aluminum |
| Connecting Rods | Powder Forged | Powder Forged |
| Bore and Stroke | 3.50 x 3.94 in. | 3.44 x 3.27 in. |
| Displacement | 152 cu. In. | 122 cu. In. |
| Compression Ratio | 13.0:1 | 9.3:1 |
| Crankshaft | Forged Steel | Forged Steel |
| Horsepower* | 191 Total , 162 Combustion hp @ 5,600 rpm | 250 hp @ 5,500 rpm |
| Torque* | 155 lb.-ft. @ 4,000 rpm | 277 lb.-ft. @ 3,000 rpm |
| Fuel Delivery | SMFI | GTDI |
| Oil Capacity | 5.7 Quarts | 5.5 Quarts |
| Coolant Capacity | 11.6 Quarts (Gas Engine)/4.7 Quarts (Electric) | 9.2 Quarts |
| Electric Motor Type | Permanent Magnet Electric Traction (Ford In House E_Motor) | |
| Electric Motor Output | 94 kW/173 lb.-ft. battery peak | |
| Battery Cooling System | Liquid | |
| Battery Location | Passenger Side Under Cabin | |
| Transmission | Power-Split: Electronic Continuously Variable Transmission (2.5L FHEV) | 8-Speed Automatic (2.0L EcoBoost®) |
| Gear Ratios | N/A | 1st: 4.69 |
| N/A | 2nd: 3.31 | |
| N/A | 3rd: 3.01 | |
| N/A | 4th: 1.92 | |
| N/A | 5th: 1.45 | |
| N/A | 6th: 1 | |
| N/A | 7th: 0.75 | |
| N/A | 8th: 0.62 | |
| Final Gear Ratio | 2.91:1 | 3.63 Standard/3.81 with 4K Trailer Tow Pkg / 3.81 with Tremor® Off-Road Package |
| Reverse | N/A | -2.96 |
| Fuel Economy | N/A | N/A |
| *Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary. |
Chassis
| Steering | Electric power-assisted steering (EPAS) | |
| Turning Circle (Curb to Curb) | 40 Feet | |
| 2.5-liter FHEV (Optional) | 2.0L EcoBoost® (Standard) | |
| Front Suspension | Independent MacPherson strut-type suspension with coil springs, twin-tube hydraulic gas-pressurized shocks, stabilizer bars, aluminum lower control arm, steel sub-frame and cast knuckle | Independent MacPherson strut-type suspension with coil springs, twin-tube hydraulic gas-pressurized shocks, stabilizer bars, aluminum lower control arm, steel sub-frame and cast knuckle |
| Rear FWD Suspension | Independent twist-beam rear suspension with integrated stabilizer bar, Ford patented “force vectoring springs”, twin-tube hydraulic gas-pressurized dampers | Independent twist-beam rear suspension with integrated stabilizer bar, Ford patented “force vectoring springs”, twin-tube hydraulic gas-pressurized dampers |
| Rear AWD Suspension | N/A | Independent multi-link trailing arm suspension with twin-tube hydraulic gas-pressurized dampers, coil springs, stabilizer bar, steel sub-frame and cast knuckle |
| Rear AWD with FX4 Package Suspension | N/A | Independent multi-link trailing arm suspension with mono-tube hydraulic gas-pressurized dampers with hydraulic rebound stop, coil springs, stabilizer bar, steel sub-frame and cast knuckle |
| Brakes | 4-wheel disc brakes with ABS and regenerative braking system | 4-wheel disc brakes with ABS |
Capability
| Towing | ||
| Engine | Base (FWD/AWD) | 4K Tow Package (AWD) |
| 2.5L Hybrid | 2,000 lbs. (FWD Only) | N/A |
| 2.0L EcoBoost® | 2,000 lbs. / 2,000 lbs. | 4,000 lbs. |
| Payload | ||
| Engine | Base (FWD/AWD) | |
| 2.5L Hybrid | 1,500 lbs. | |
| 2.0L EcoBoost® | 1,500 lbs. | |
| 2.0L EcoBoost® (FWD) | 1,500 lbs. | |
| 2.0L EcoBoost® (AWD) | 1,500 lbs. | |
| 2.0L EcoBoost® (AWD - Tremor) | 1,200 lbs. | |
| 2.5L Hybrid (FWD) | 1,500 lbs. | |
| Max. payload varies and is based on accessories and vehicle configuration. See label on doorjamb for carrying capacity of a specific vehicle. Always properly secure cargo. When properly equipped. Max towing varies based on cargo, vehicle configuration, accessories and number of passengers. |
