Power
Standard
- 3.5L EcoBoost® Engine
- Auto Stop-Start Technology
- 10-Speed SelectShift® Automatic Transmission
- Battery saver
- ABS with Brake Assist and EBD (Electronic Brakeforce Distribution)
Optional
- 3.5L EcoBoost® High-Output Engine
2023 Expedition Limited MAX
Key Features

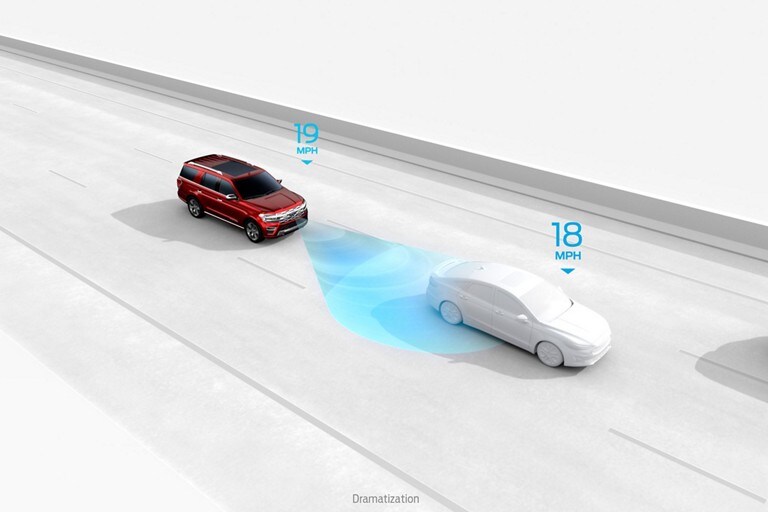

Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Speed Sign Recognition
Adaptive Cruise Control with Stop-and-Go detects traffic slowing ahead. It can bring the Expedition SUV to a complete stop, and you can accelerate back up to the preset speed if the vehicle in front moves forward. This system can utilize the forward-facing camera to perform Speed Sign Recognition to identify the speed limit of the road. It will then update the set speed to the new speed limit, plus or minus the driver’s preference. *
...less
*If the vehicle is stopped for more than three seconds, the driver must intervene and press the “RES” button or accelerator pedal to resume system operation.
LED Reflector Headlamps with LED Signature Lighting
LED reflector headlamps with LED signature lighting self-adjust to help guide you through the darkness. With LED lighting in the front and rear, you get superior light quality while conserving energy. Available on XLT and higher.
...less

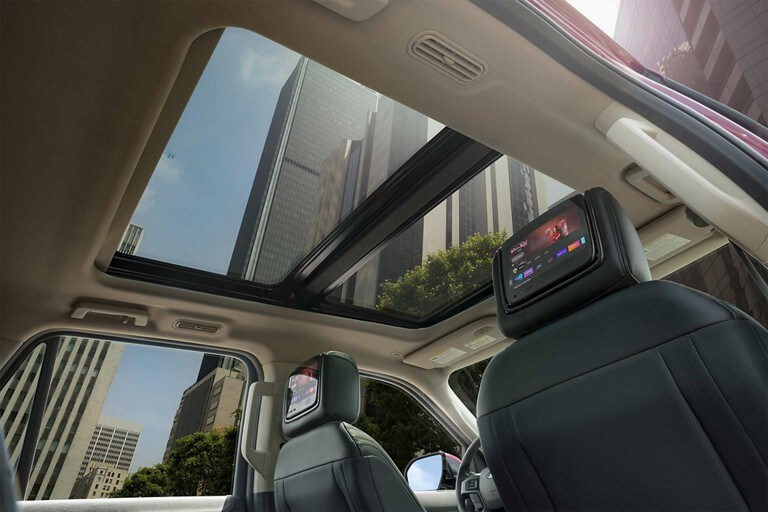

Panoramic Vista Roof®
The panoramic Vista Roof® features two panels over the first and second rows. The front panel opens for an open-air driving experience.
...less
Power and Handling
Handling
Standard
- Non-limited-slip 3.31 rear axle
- Fully Boxed Frame
- Suspension - Multilink Independent Rear suspension
- Electronic Power-Assist (EPAS) Rack-and-Pinion Steering
- Front and Rear Stabilizer Bars
- AdvanceTrac™ with RSC® (Roll Stability Control™) Open image overlay for AdvanceTrac™ with RSC® (Roll Stability Control™)
- Electronic Stability Control
- Trailer Sway Control
- Lane-Centering Assist
- Traction Control
- Hill Start Assist (Included on 4x2 and 4x4 Models) and Hill Descent Control™ (Included on 4x4 Models Only) Open image overlay for Hill Start Assist (Included on 4x2 and 4x4 Models) and Hill Descent Control™ (Included on 4x4 Models Only)
Optional
- Non-limited-slip 3.73 rear axle
- Control Trac with eLSD (Electronic Limited-slip Differential 3.73) Rear Axle and Two-Speed Transfer Case (4High/4Low) with Neutral Towing Capability
- Intelligent 4WD with Terrain Management System™ Open image overlay for Intelligent 4WD with Terrain Management System™
- Integrated Trailer Brake Controller With Heavy-Duty Trailer Tow Package Open image overlay for Integrated Trailer Brake Controller With Heavy-Duty Trailer Tow Package
- Continuously Controlled Damping (CCD) with Suspension Road Preview Open image overlay for Continuously Controlled Damping (CCD) with Suspension Road Preview
Wheels & Tires
Standard
- 20-Inch Bright-Machined Aluminum With Dark Carbonized Gray-Painted Pocket Wheels Open image overlay for 20-Inch Bright-Machined Aluminum With Dark Carbonized Gray-Painted Pocket Wheels
- Underbody-mounted full-size spare tire
- P275/55R20 all-season tires
Optional
- 22-Inch 6-Spoke Polished Aluminum Wheels Open image overlay for 22-Inch 6-Spoke Polished Aluminum Wheels
- 22-inch Premium Black-Painted Wheels
- P285/45R22 all-season tires
Interior Features
Seating
Standard
- 7 Passenger Seating
- Leather Trimmed Seats
- Front Perforated, Leather-Trimmed, Heated and Ventilated Captain’s Chairs Open image overlay for Front Perforated, Leather-Trimmed, Heated and Ventilated Captain’s Chairs
- Second Row Power-Folding Tip and Slide Captain's Chairs
- Third Row: 60/40 PowerFold® with Power Recline
- Third Row: 60/40 PowerFold® Seat with Power Recline and Power-Folding Head Restraints
- First Row: Heated and Ventilated Seats Open image overlay for First Row: Heated and Ventilated Seats
- Second Row: Heated Seats
- 10-way Power Driver with Memory (Power Tilt, Lumbar and Power Recline) and 8-way Power Passenger Seats (Power Lumbar and Power Recline)
Optional
- 8 Passenger Seating
- Second Row: 40/20/40 Power Folding Tip and Slide seats
Climate
Standard
- Cabin Particulate Air Filter
- Tri-Zone Electronic Automatic Temperature Control
- Rear Auxiliary Climate Controls - Second and Third Row
Entertainment Systems
Standard
- SYNC® 4 with 12-inch Center Stack Screen Open image overlay for SYNC® 4 with 12-inch Center Stack Screen
- 8-inch Screen in Gauge Cluster (Productivity Screen)
- FordPass™ Connect With 4G LTE Wi-Fi Hotspot Open image overlay for FordPass™ Connect With 4G LTE Wi-Fi Hotspot
- SiriusXM® Radio with 360L
- Connected Built In Navigation (3 years)
- HD Radio™
- B&O® Sound System by Bang & Olufsen®, 12 Speakers including Subwoofer Open image overlay for B&O® Sound System by Bang & Olufsen®, 12 Speakers including Subwoofer
- Smart-Charging Multimedia USB Ports, Second Row — Two (2)
- Smart-Charging USB Ports, 3rd Row-Two (2)
- Wireless Charging Pad Open image overlay for Wireless Charging Pad
Optional
- SYNC® 4A With 15.5-inch Display Open image overlay for SYNC® 4A With 15.5-inch Display
- 12.4-inch Screen in Gauge Cluster Display
- B&O® Unleashed Sound System by Bang & Olufsen®, 22 Speakers including Subwoofer Open image overlay for B&O® Unleashed Sound System by Bang & Olufsen®, 22 Speakers including Subwoofer
- Dual-Headrest Rear Seat Entertainment System with Amazon Fire TV Open image overlay for Dual-Headrest Rear Seat Entertainment System with Amazon Fire TV
Comfort and Convenience
Standard
- Overhead console with sunglass holder
- (15) Beverage Holders
- Power door locks and rear-door child-safety locks
- Carpeted Flooring
- Carpeted First- and Second-Row Floor Mats
- Cargo Management System Open image overlay for Cargo Management System
- Cargo Protector
- Front and Rear Scuff Plates
- Illuminated Entry System with Courtesy Lamp Delay
- Memory feature for the driver's seat, power-adjustable foot pedals and exterior mirrors
- Power-Adjustable Brake and Accelerator Pedals
- Auto-Dimming Rearview Mirror
- Powerpoints 12V (4)
- 110V/150W AC power outlet Open image overlay for 110V/150W AC power outlet
- Rotary Gear Shift Dial Open image overlay for Rotary Gear Shift Dial
- Leather-wrapped power tilt/telescoping steering wheel with audio controls
- Heated Steering Wheel
- Cruise Control
- Universal Garage Door Opener
- Rear Cargo Area Light
- Second and Third Row Dome Lights
- Sliding Sun Visors with Illuminated vanity Mirrors (Driver and Passenger)
- Grab Handles-Front Row, Second Row Pillar and Headliner Mounted
- Smart-Charging Multimedia USB Ports in Media Hub -Two (2) Open image overlay for Smart-Charging Multimedia USB Ports in Media Hub -Two (2)
- Coat Hooks (4) - Second Row (2), Third Row (2)
- Center Console – Armrest and Covered Media Bin Open image overlay for Center Console – Armrest and Covered Media Bin
- Push-Button Start (In Vehicle)
- Intelligent Access with Push-Button Start
- Remote Start System (Using Key Fob)
- Front Parking Sensors
- Ambient Lighting
BLIS® (Blind Spot Information System) with Cross-Traffic Alert
Open image overlay forBLIS® (Blind Spot Information System) with Cross-Traffic Alert
- Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Speed Sign Recognition Open image overlay for Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Speed Sign Recognition
- Auto High-Beam Headlamp
- Lane-Keeping System (Includes Lane-Keeping Alert, Lane-Keeping Aid and Driver Alert)
- Pre-Collision Assist with Emergency Braking (AEB) (includes Pedestrian Detection, Forward Collision Warning and Dynamic Brake Support)
Optional
- Floor Liners, First and Second Row (with carpet mats)
- Advanced Cargo Manager
- Cargo Mat-Reversible
- Cargo Net
- 360-Degree Camera with Split View and Front/Rear Washer Open image overlay for 360-Degree Camera with Split View and Front/Rear Washer
- BLIS® with Cross-Traffic Alert and Trailer Coverage
- Active Park Assist 2.0 System with Parallel Parking, Park Out Assist and Reverse Perpendicular Parking
- Pro Trailer Backup Assist™ Open image overlay for Pro Trailer Backup Assist™
Exterior Features
Appearance
Standard
- Rain-Sensing Front Wipers (Front Wiper Only)
- Rear Window Defroster and Washer
- Power Liftgate with manual Liftglass
- Exhaust-Single
- Door Handles-Body Color with Chrome Inserts
- LED Fog Lamps
- LED Reflector Headlamps with LED Signature Lighting Open image overlay for LED Reflector Headlamps with LED Signature Lighting
- Taillamps - LED
- Configurable Daytime Running Lamps (DRL)
- Roof-Rack Side Rails-Bright Stainless With Black Caps
- Running Boards Accent Color with Bright Chrome Plated Accent
- Easy Fuel® capless fuel filler
- Panoramic Vista Roof® Open image overlay for Panoramic Vista Roof®
- Grille – Chrome Twin Spar Grille
- Class IV Trailer hitch receiver
Optional
- Dual Exhaust
- License plate bracket (front)
- Door Handles-Body Color
- Roof-Rack Side Rails-Black
- Roof-Rail Crossbars
- Available Power-Deployable Running Boards-Magnetic Painted with Polished Stainless Accent Open image overlay for Available Power-Deployable Running Boards-Magnetic Painted with Polished Stainless Accent
- Power-Deployable Running Boards — Ebony Black Painted
- Front Tow Hooks (included on 4x4 models only) Open image overlay for Front Tow Hooks (included on 4x4 models only)
- Grille – Twin Spar, Ebony Black-Painted Open image overlay for Grille – Twin Spar, Ebony Black-Painted
Windows & Glass
Standard
- Sideview Mirrors: Power-Folding with Autofold, Power and Heated Glass, Turn Signal Indicators, Security Approach Lamps, Driver/Passenger Side Memory, Driver's Side Auto-Dimming
- Body-Color Mirror Caps
- Privacy Glass-Second Row, Third Row, and Liftgate
- Acoustic-Laminate
- Windows, Second Row Power- One-Touch Up/Down Feature
- Windows, Power-Front One-Touch Up/Down Feature
Optional
- Gloss Black Mirror Caps
Safety
Safety
Standard
- Rear Parking Sensors
- Rear View Camera
- Dual-stage front airbags
- Three-point safety belts at all seating positions
- Safety Canopy® System (Includes Third Row)
- Front-Seat Side-Impact Airbags
- Rear-door child-safety locks
- LATCH (Lower Anchors and Tether Anchors for Children)
- Four-Wheel Disc Brakes with Anti-Lock Brake System
- Individual Tire Pressure Monitoring System (TPMS)
- SOS Post-Crash Alert System™
Optional
- 360-Degree Camera with Trailer Reverse Guidance
Security
Standard
- SecuriLock® Passive Anti-Theft System
- Inclination/Intrusion Sensors
- Remote Keyless Entry System
- Perimeter Alarm
- Personal Safety System™
- SecuriCode™ Keyless Entry Keypad
- MyKey®
Packages
Packages
Standard
- Advanced Security Package
- Ford Co-Pilot360™
- Ford Co-Pilot360™ Assist+ Open image overlay for Ford Co-Pilot360™ Assist+
Optional
- Heavy-Duty Trailer Tow Package
- Stealth Edition Package Open image overlay for Stealth Edition Package
- Stealth Performance Edition Package
- Ford Co-Pilot360™ Assist 2.0
Value Packages
Optional
- Equipment Group 301A
- Equipment Group 303A
- Equipment Group 302A
- Equipment Group 304A
Specifications
Highlights
| Fuel Economy and Engine Highlights | |
| Engine Type | 3.5L EcoBoost® V6 |
| Vehicle Highlights | |
| Maximum Seating Capacity* | 8 |
| *XL STX, King Ranch and King Ranch Max seating for up to 7 | |
| Drivetrain | Rear Wheel Drive (standard) |
| Control Trac® Four Wheel Drive (optional) | |
| Transmissions | 10-speed automatic with SelectShift® |
| Wheelbase | 4x2/4x4 Expedition - 122 (in.) |
| 4x2/4x4 Expedition MAX - 131 (in.) | |
| Maximum Towing Capacity | Expedition 4x2 - 9,300 lbs. |
| Expedition 4x4 - 9,200 lbs. | |
| Expedition MAX 4x2 - 9,000 lbs. | |
| Expedition MAX 4x4 - 9,000 lbs. | |
| Wheels Available | 18" Machined-Face Aluminum with Magnetic-Painted Pockets |
| 18" Ebony-Painted with Laser-etched Timberline Logo | |
| 20" Sparkle Silver Aluminum | |
| 20" Bright Machined Aluminum with Dark Carbonized Gray-Painted Pockets | |
| 20" 6-Spoke Gloss Black-Painted | |
| 22" 12-Spoke Polished Aluminum | |
| 22" 6-Spoke Polished Aluminum | |
| 22" Premium Black-Painted Aluminum | |
| Bumper to Bumper: 3 years / 36,000 miles | |
| Warranty | Powertrain: 5 years / 60,000 miles |
| Safety Restraint System: 5 years / 60,000 miles | |
| Corrosion (Perforation Only): 5 years / Unlimited miles | |
| Roadside Assistance Program: 5 years / 60,000 miles |
Exterior
| Exterior Dimensions | ||
| 4x2/4x4 Expedition (in.) | 4x2/4x4 Expedition MAX (in.) | |
| Wheelbase | 122.5 | 131.6 |
| Length | 210.0 | 221.9 |
| Height | 76.6/76.4 | 76.4/76.2 |
| Width - Excluding Mirrors | 79.9 | 79.9 |
| Width - Including Mirrors | 93.4 | 93.4 |
| Width - with Mirrors Folded | 83.6 | 83.6 |
| Front Track | 67.6 | 67.6 |
| Rear Track | 67.2 | 67.2 |
| Front Overhang | 38.2 | 38.2 |
| Rear Overhang | 49.3 | 52.0 |
| Approach Angle (degrees) | 23.4/23.3 | 24.0/23.7 |
| Departure Angle (degrees) | 22.2/21.9 | 21.5/21.3 |
| Ramp Breakover Angle (degrees) | 21.5/21.4 | 20.3/20.1 |
| Minimum Running Ground Clearance | 9.8 | 9.8/9.7 |
| Timberline | ||
| Timberline Trim Minimum Running Ground Clearance | 10.6 | N/A |
| Approach Angle (degrees) | 28.5 | N/A |
| Departure Angle (degrees) | 23.7 | N/A |
| Ramp Breakover Angle (degrees) | 21.9 | N/A |
Interior
| Interior Dimensions | ||
| 4x2/4x4 Expedition (in.) | 4x2/4x4 Expedition MAX (in.) | |
| Head Room - 1st Row | 42.0 | 42.0 |
| Head Room - 2nd Row | 40.0 | 40.0 |
| Head Room - 3rd Row | 37.3 | 37.4 |
| Max Leg Room - 1st Row | 43.9 | 43.9 |
| Leg Room - 2nd Row | 41.5 | 41.5 |
| Leg Room - Second Row (Seat Full Rearward) [in] | 42.6 | 42.6 |
| Leg Room - 3rd Row | 36.1 | 36.1 |
| Leg Room - Third Row (Second Row Seat Full Forward) [in] | 40.9 | 40.9 |
| Hip Room - 1st Row | 62.2 | 62.2 |
| Hip Room - 2nd Row | 62.6 | 62.6 |
| Hip Room - 3rd Row | 51.4 | 51.4 |
| Shoulder Room - 1st Row | 64.9 | 64.9 |
| Shoulder Room - 2nd Row | 64.8 | 64.8 |
| Shoulder Room - 3rd Row | 64.2 | 64.3 |
Capacities
| Capacities: Interior Volume | ||
| 4x2/4x4 Expedition (cu. ft.) | 4x2/4x4 Expedition MAX (cu. ft.) | |
| Passenger Volume | 171.9 | 172.0 |
| Cargo Volume Behind First Row | 104.6 | 121.5 |
| Cargo Volume Behind Second Row | 57.5 | 73.3 |
| Cargo Volume Behind Second Row - Second Row Seat Full Forward [cu.ft.] | 63.6 | 79.6 |
| Cargo Volume Behind Third Row | 19.3 | 34.3 |
| Cargo Volume Behind Third Row - Third Row Seat Full Upright [cu.ft.] | 20.9 | 36.0 |
| Capacities: Fuel | ||
| 4x2/4x4 Expedition (gallons) | 4x2/4x4 Expedition MAX (gallons) | |
| Fuel Capacity | 23.2 | 27.8 |
| Capacities: Weight | ||
| 4x2/4x4 Expedition (lbs.) | 4x2/4x4 Expedition MAX (lbs.) | |
| Base Curb Weight | 5,368/5,623 | 5,534/5,794 |
| Maximum Seating Capacity* | 8 | 8 |
| *XL STX, King Ranch and King Ranch Max seating for up to 7 |
Engine
| Engine Specifications | |
| Drive type | Rear-wheel drive (std.); Intelligent four-wheel drive (opt.) |
| Engine type | 3.5L EcoBoost® V6 |
| Transmission | 10-speed automatic with SelectShift® |
| Final drive ratio | 3.31 Non-Limited Slip (Standard on all 4x2/4x4 Expedition & Expedition MAX, excluding Timberline) |
| 3.73 Non-Limited Slip (optional on all 4x2/4x4 trims, excluding Timberline) | |
| 3.73 Control Trac® with eLSD (Electronic Limited-Slip Differential) | |
| Includes Two-Speed Automatic 4WD with Neutral Towing Capability (optional on all 4x4 trims; Standard on Timberline) | |
| Recommended fuel | Regular Unleaded |
| Horsepower (SAE net@rpm) | 380 @ 5,000 (XL-STX, XLT). 400 @ 5,000* (Limited , King Ranch, Platinum) |
| Torque (lb.-ft@rpm) | 470 @ 2,250 (XL-STX, XLT) 480 @ 5,000* (Limited, King Ranch, Platinum) |
| H.O. Tune Horsepower (SAE net@rpm) | 440 @ 5,000 *(Limited Stealth Performance, Timberline) |
| H.O. Tune Torque (lb.-ft@rpm) | 510 @ 2,250 *(Limited Stealth Performance, Timberline) |
| *Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. | |
| Compression ratio | 10.5:1 |
| Valvetrain | Twin independent Variable Camshaft Timing |
| (Ti-VCT) | |
| Fuel delivery | Gasoline Direct Injection |
| Exhaust | Single, stainless steel |
| Engine block type | Die-cast aluminum |
| Cylinder head material | Aluminum alloy |
Chassis
| Chassis Specifications | |
| Front suspension | Independent Short- and Long-Arm (SLA) coil-over-shocks with stabilizer bar |
| Front shocks | Gas charged (Opt. Continuously Controlled Damping) |
| Rear suspension | Independent multi-link with stabilizer bar (Opt. rear mechanical load-leveling) |
| Rear shocks | Gas charged (Opt. Continuously Controlled Damping) |
| Brakes | Power 4-wheel Disc Anti-Lock Brake System with Brake Assist and Electronic Brakeforce Distribution (EBD) |
| Steering | Electric power-assisted rack-and-pinion steering |
Towing
| Maximum Towing Capabilities - Conventional Towing | ||||
| Maximum Loaded Trailer Weight (Lbs.) | ||||
| Model | Axle Ratio | GCWR (4x2/4x4) (Lbs.) | 4x2 | 4x4 |
| Expedition | 3.31 | 12,000 / 12,300 | 6,000 | 6,000 |
| Expedition MAX | 3.73 | 12,500 / 12,400 | 6,300 | 6,000 |
| Maximum Towing Capabilities - Optional Heavy-Duty Trailer Towing Package | ||||
| Maximum Loaded Trailer Weight (Lbs.) | ||||
| Model | Axle Ratio | GCWR (4x2/4x4) (Lbs.) | 4x2 | 4x4 |
| Expedition | 3.31/3.73 | 15,300 / 15,500 | 9,300 | 9,200 |
| Expedition MAX | 3.73 | 15,200 / 15,500 | 9,000 | 9,000 |
