2024 Bronco® Black Diamond™

Build & Price

Seating for (2-door/4-door)

4/5

Seating for (2-door/4-door)

Key Features

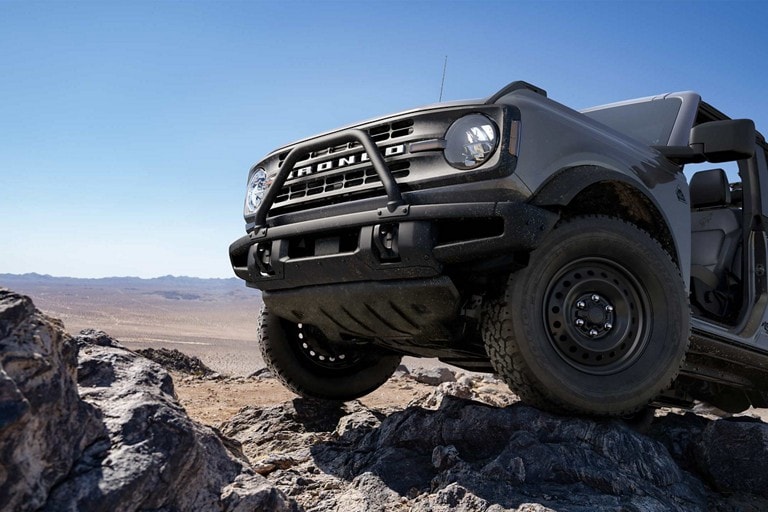

Heavy-Duty Modular Front Bumper

The available heavy-duty modular front bumper offers increased protection off-road and makes it easy to upfit your Bronco.^®

Always consult the Owner’s Manual before off-road driving, know your terrain and trail difficulty, and use appropriate safety gear.

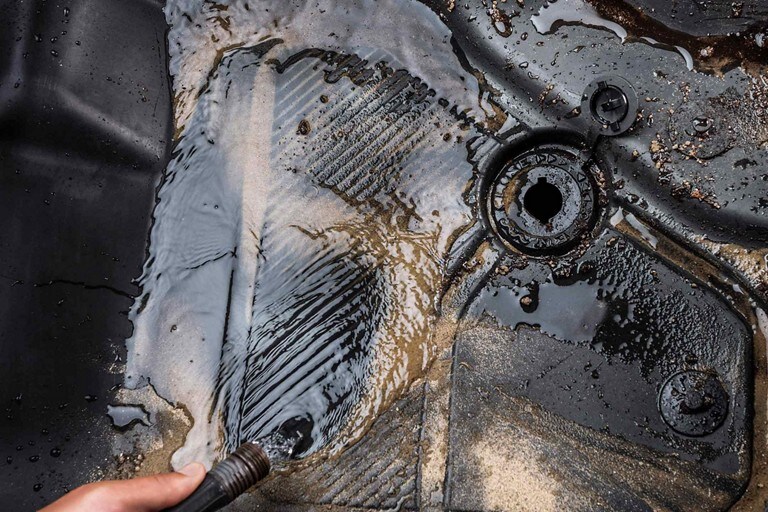

Close-up of rubberized flooring being cleaned

Rubberized Flooring - Washout Capable with Drain Plugs

Clean-up is fast and simple with available washable rubberized floors with integrated passive and active drains, plus marine-grade vinyl seating surfaces that resist mildew and clean up with a wipe. Standard on Black Diamond.^™

2024 Ford Bronco® Black Diamond™ in Carbonized Gray Metallic with underbody bash plates shown

Bash Plates - Full Underbody

Available bash plates offer strong protection to the rockers and the undercarriage of your Bronco^® from damage caused by rocks, stumps and other trail obstacles.

Always consult the Owner’s Manual before off-road driving, know your terrain and trail difficulty, and use appropriate safety gear.

Exterior Features

Appearance

Standard

Manual Swing-gate with up to 150-degree swing
Soft Top (4-Door)
Hardtop (2-Door) Carbonized Gray Molded-in-Color
Removable Doors and Top
Door Handles - Molded-in-Color, Black
Grille - Black Molded-in-Color with White "BRONCO^®" Lettering
Daytime Running Lamps (DRL) (Configurable)
LED Fog Lamps
Mirrors, Sideview - Heated, Power Glass, Manual-Fold, Black Molded-In-Color Finish
Bash Plates - Front Section
Bash Plates - Full Underbody
Rock Rails
Tow Hooks - 2 Front, 1 Rear
Powder Coated Steel Front Bumper

Optional

Hardtop (4-Door) Carbonized Gray Molded-in-Color
Hardtop Modular Shadow Black-Painted
Dual Tops - Carbonized Gray Molded-in-Color Hardtop + Black Soft Top (4-Door)
Dual Tops - Modular Shadow Black-Painted Hardtop + Black Soft Top (4-Door)
Removable Hoop Step
Heavy-Duty Modular Front Bumper
Brush Guard (Requires Heavy-Duty Modular Front Bumper)
Roof Rails with Crossbars (requires Hardtop; This option may reduce SiriusXM satellite radio reception performance)
Top Mesh Shade Bimini
Top Retractable - Full Twill Soft
Top Retractable - Front Row Twill Soft
Top Soft Canvas Bimini
Tube Doors - 2-Door
Tube Doors - 4-Door
32" Spare Tire Cover - Abstract Bronco^®
32" Spare Tire Cover - Bronco^® 66
32" Spare Tire Cover - Ford TG Stamping
Wheel Lock Kit
Body Appearance Kit
Body Armor - Protective Moldings

Windows & Glass

Standard

Privacy Glass - 2nd Row Side and Flip-up Glass (Hardtop)

Interior Features

Climate

Standard

Manual Climate Control with Air Conditioning - Single Zone

Optional

Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

Remote Keyless Access with Push-Button Start
8-inch Color LCD Instrument Panel (In gauge cluster)
Rubberized Flooring - Washout Capable with Drain Plugs
Carpeted floor mats, first row
Pre-Collision Assist with Automatic Emergency Braking
Sliding Visor Vanity Mirrors (Driver and Front Passenger)
Terrain Management System (TMS) with 7 G.O.A.T. Modes
Manual day/night rearview mirror
Powerpoints (12V) – Two – Front Center Floor Console (1) and Cargo Area (1)
Dual Smart Charging USB Ports - Type C + Std A, Front Row
Dual Smart Charging USB Ports - Type C + Std A, Second Row (Back of Center Floor Console)
Leather-Wrapped Steering Wheel with Bronco^® Badge, Cruise and Audio Controls
Manual tilt and telescoping steering column
Power Front Row with One-Touch Up/Down Feature
Second Row window controls (4-door): Located on the back side of the Center Floor Console
MOLLE Panel (Driver and Front Passenger Seatback)

Optional

Intelligent Access with Push-Button Start
Remote Start System (Automatic Transmission)
Cargo Area Protector
Slide-Out Tailgate (requires 4-Door)
Floor Liners Front and Rear (Without Carpet Floor Mats)
Floor Liners Front and Rear with (With Carpet Floor Mats)
Lane-Keeping System
BLIS^® with Cross-Traffic Alert
Illuminated Sliding Visor Vanity Mirrors (Driver and Front Passenger)
Ambient Footwell Lighting
Auto-dimming rearview mirror
AC Power Outlet - Back Side Of Center Floor Console
Assistance Kit, Off-Road
Assistance Kit, On-Road
Cargo Area Rug
Cargo Net Kit
First Aid Kit
Safe Deposit - Console Lock Box
Tailgate Table
Storage - Roof Bag, 2-Door Modular Roof Porthole Panel (requires 2-Door)
Storage - Roof Bag, Second Row Panel (requires 4-Door)
Hardtop Sound Deadening Headliner (requires Hardtop)

Entertainment Systems

Standard

AM/FM stereo with 7 speakers including subwoofer
SYNC^® 4 - 12" LCD Capacitive Touchscreen with Swipe Capability and Enhanced Voice Recognition
AppLink^® with App Catalog
911 Assist^®
Wireless Apple Carplay^™ and Android Auto^™ Compatibility
SiriusXM^® With 360L
SYNC^®4
FordPass Connect^™

Optional

Connected Voice-Activated Touchscreen Navigation System with Pinch-to-Zoom Capability - 90-day trial subscription

Seats

Standard

Marine Grade Vinyl
6-way Manual Driver Seat
6-way Manual Passenger
Second-Row, 60/40 Split-Fold (4-Door)
Second-Row, 50/50 Split-Fold (2-Door)

Optional

Heated Front Seats

Packages

Power and Handling

Handling

Standard

Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS) and Electronic Stability Control
HOSS 1.0 System
4x4 with Part-Time Selectable Engagement
Hill Decent Control (requires manual transmission)
Hill start assist
Trail One-Pedal Drive (Requires 2.7L or 3.0L Engine and 10 speed auto)
Electronic-Locking Rear Axle

Optional

HOSS 2.0 System with Bilstein PSDs, and high clearance ride height
Advanced 4x4 with Automatic On-Demand Engagement
Reverse Parking Sensors
Trail Control^™ (requires 10-speed transmission)
Trail Turn Assist (requires 10-speed transmission)
Electronic-Locking Front and Rear Axle

Power

Standard

Post-Collison Braking
Electric Parking Brake
2.3L EcoBoost^® I-4 Engine
Electric Power-Assisted Steering (EPAS)
7-Speed Manual Transmission (2-Door)
7-Speed Manual Transmission (4-Door)

Optional

Engine Block Heater
2.7L EcoBoost^® V6 Engine
10-Speed Automatic Transmission (2-Door)
10-Speed Automatic Transmission (4-Door)

Wheels & Tires

Standard

17" Black High Gloss-Painted Aluminum
LT265/70R17 All-Terrain (A/T) (32")

Optional

17" Black High Gloss-Painted Aluminum with Warm Alloy Beauty Ring, Beadlock Capable Wheels
LT315/70R17 BSW Mud-Terrain (M/T) (35")

Safety

Standard

Personal Safety System^™
First Row: Driver and Passenger Dual-Stage Front
First Row: Driver and Passenger Seat Side
All Rows: Safety Canopy^® Side-Curtain with Rollover Sensor
Lower Anchors and Tether Anchors for Children (LATCH) - Each Second Row Seating Position
Individual Tire Pressure Monitoring System (ITPMS)
Belt-Minder^® (Front Row)
Perimeter alarm
Headlamps LED
Auto High-Beam Headlamps
Rear View Camera with Backup Assist Grid Lines
AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Trailer Sway Control

Optional

Keyless-Entry Keypad

Specifications

Highlights

Vehicle Highlights	2-Door	4-Door
Max Seating Capacity	4	5
Drive Type	4x4	4x4
Transmission	10-Speed Automatic/7-Speed Manual Transmission	10-Speed Automatic/7-Speed Manual Transmission
Wheelbase	100.4 in.	116.1 in.
Maximum Towing Capacity	3,500	3,500/4,500 (Raptor^®)
Wheels Available	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^®	17" Carbonized Gray-Painted Aluminum - Standard on Big Bend^®
	17" Black Gloss-Painted aluminum - Standard on Black Diamond^™	17" Black Gloss-Painted aluminum - Standard on Black Diamond^™
	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^®	18" Bright Machined Black High Gloss-Painted Aluminum - Standard on Outer Banks^®
	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^®	17" Black High Gloss-Painted Forged Aluminum with Black Beauty Ring, Beadlock Capable - Standard on Wildtrak^®
	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch Package for all series except Wildtrak^®) Package is optional on Big Bend^®, Black Diamond^™, Outer Banks^®, Badlands^®	17" Machined Carbonized Gray-Painted Aluminum - Standard on Badlands^®
	17" Unique White Wheels - Standard on Heritage Edition (Late Availability)	17" Black High Gloss-Painted Aluminum, with Warm Alloy Beauty Ring, Beadlock Capable (Included in Sasquatch Package for all series except Wildtrak^®) Package is optional on Big Bend^®, Black Diamond^™, Outer Banks^®, Badlands^®
	17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition (Late Availability)	17" Carbonized Gray-Painted Alloy Wheels - Standard on Everglades^™
		17" Black High Gloss Painted Alloy - Standard on Raptor^®
		17" Dark Carbonized Gray Alloy Painted, Beadlock Capable Forged Wheels - Optional on Raptor^®
		17" Unique White Wheels - Standard on Heritage Edition (Late Availability)
		17" Dog-Dish style Black High Gloss-Painted Aluminum with White Wall - Standard on Heritage Limited Edition (Late Availability)
Warranty	Bumper to Bumper: 3 years / 36,000 miles	Bumper to Bumper: 3 years / 36,000 miles
	Powertrain: 5 years / 60,000 miles	Powertrain: 5 years / 60,000 miles
	Safety Restraint System: 5 years / 60,000 miles	Safety Restraint System: 5 years / 60,000 miles
	Corrosion (Perforation only): 5 years / Unlimited miles	Corrosion (Perforation only): 5 years / Unlimited miles
	Roadside Assistance Program: 5 years / 60,000 miles	Roadside Assistance Program: 5 years / 60,000 miles

Interior

Interior Dimensions (projected)	2-Door	4-Door
Head room (in.)
First row (Hardtop)	41.0	40.8
First row (Soft Top)	N/A	43.3
Second row (Hardtop)	39.8	40.1
Second row (Soft Top)	N/A	41.1
Leg room (in.)
First Row	43.1	43.1
Second row	35.7	36.3
Hip room (in.)
First Row	56.3	55.9
Second row	43.3	54.8
Shoulder room (in.)
First Row	57.1	57.1
Second row	51.8	56.5

Capacities

Capacities: Passengers, Luggage, Fuel (Projected)	2-Door	4-Door	Everglades^™ (4-door)	Raptor^® (4-door)
Seating capacity	4	5	5	5
Passenger volume (cu. ft.) Hardtop	99	103.7	103.7	103.7
Passenger volume (cu. ft.) Soft top	N/A	108.2	N/A	N/A
Behind 1st row (Hardtop) (cu. ft.)	52.3	77.6	77.6	73
Behind 1st row (Soft top) (cu. ft.)	N/A	83.0	N/A	N/A
Behind 2nd row (Hardtop) (cu. ft.)	22.4	35.6	35.6	33.4
Behind 2nd row (Soft top) (cu. ft.)	N/A	38.3	N/A	N/A
Fuel capacity (gal.) 2.3L EcoBoost^®	16.9	20.8	20.8	N/A
Fuel capacity (gal.) 2.7L EcoBoost^®	16.9	20.8	N/A	N/A
Fuel capacity (gal.) 3.0L EcoBoost^®	N/A	N/A	N/A	21.2

Estimated base curb weights (lbs.)*
2.3L EcoBoost^® (Manual/Automatic)	4,319/4,339 - 4,957/4,977	4,499/4,509 - 4,997/5,226	4,864 - 4,934	N/A
2.7L EcoBoost^®	4,491 - 5,129	4,661 - 5,320	N/A	N/A
3.0L EcoBoost^®	N/A	N/A	N/A	N/A
*Weights are projected and given as a range from base - full content.

Exterior

Exterior Dimensions	2-Door	4-Door	Everglades^™ (4-door)	Raptor^® (4-door)
Drive system	4x4	4x4	4x4	4x4
Wheelbase (in.)	100.4 in.	116.1 in.	116.1 in.	116.5 in.
Length (in.)	173.7	189.4	198.9	191
Vehicle height	71.9 (Hardtop)	73.0 (soft top)	78.7 (Hardtop w/ roof rack)	77.8 (Hardtop - no roof rack)
Vehicle width with mirrors (in.)	86.2	86.2	86.2	86.9
Vehicle width without mirrors (in.)	75.9	75.9	79.4	85.7
Vehicle width with mirrors folded (in.)	75.9	75.9	79.4	85.7
Track, front (in.)	65	65	66.9	73.2
Track, rear (in.)	65	65	66.9	73.6

Engine

Engine Specifications	2.3L EcoBoost^®	2.7L EcoBoost^®	3.0L EcoBoost^®
Engine type	2.3L Ti-VCT GTDI I-4	2.7L Ti-VCT GTDI V6	3.0L Ti-VCT GTDI V6
Drive type	4x4	4x4	4x4
Exhaust	Single	Single	Single with active valve technology
Transmission type	7-Speed Manual/10-Speed Automatic	10-Speed Automatic	10-Speed Automatic
Horsepower (regular fuel)	275	315	N/A
Torque (regular fuel)	315	410	N/A
Horsepower (premium fuel)	300,*	330,*	418,*
Torque (premium fuel)	325,*	415,*	440,*
Compression ratio	10.0:1	10.0:1	10.5:1
Valve lifters	Direct Acting Mechanical Buckets	Roller Finger Follower	Roller Finger Follower
Engine block material	Aluminum	Compacted Graphite Iron (CGI)	Compacted Graphite Iron (CGI)
Cylinder head material	Aluminum	Aluminum	Aluminum
Induction system	Turbocharged	Turbocharged	Turbocharged
Fuel delivery	Direct injection	Ported Fuel/Direct injection (PFDI)	Direct injection
Fuel (minimum)	Regular unleaded	Regular unleaded	Regular unleaded
*Horsepower and torque ratings based on premium fuel per SAE J1349 standard.
**Horsepower and torque are independent attributes and may not be achieved simultaneously.

Chassis

Chassis Specifications
Front suspension	Front: Independent HOSS 1.0 (High-Performance, Off-Road, Stability, Suspension) System with twin alloy A-arms and coil-over springs for optimum off-road stability and control with available HOSS 2.0 System with Bilstein^® Position-Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Rear suspension	Rear: Solid five-link rear axle HOSS (High-Performance, Off-Road, Stability, Suspension) System with coil-over springs for optimum off-road capability and durability with available HOSS System with Bilstein Position Sensitive Dampers, HOSS 3.0 with FOX^™ Internal Bypass Dampers, and HOSS 4.0 with FOX^™ Live Valve 3.1 internal bypass semi- active shocks
Traction assist	AdvanceTrac^® with RSC^® (Roll Stability Control^™)
Brakes	Power 4-wheel disc with Anti-Lock Brake System (ABS)
Steering	Electric power-assisted steering (EPAS)

Towing

	Towing
Body Style	Engine	Transmission	Available Features	Max. Trailer Weight Up-to (Lbs.)
2-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
2-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
2-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Manual	Class II Trailer Tow Package	3,500
4-Door	2.3L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	2.7L EcoBoost^®	Automatic	Class II Trailer Tow Package	3,500
4-Door	3.0L EcoBoost^®	Automatic	Class II Trailer Tow Package	4,500

Capability

Capability	2-Door	4-Door	Everglades^™ (4-dr.)	Raptor^® (4-dr.)
Approach Angle (Deg.)	35.5-43.2 (with 35" tire)	35.5-43.2 (with 35" tire)	37.8 (with winch)	47.2
Breakover Angle (Deg.)	21.1-29.0 (with 35" tire)	20.0-26.3 (with 35" tire)	26.3	30.8
Departure Angle (Deg.)	29.8-37.2 (with 35" tire)	29.7-37.0 (with 35" tire)	37.1	40.5
Ramp Travel Index (Badlands^® & Raptor^® only) Stabilizer bar connected/disconnected	560/700	500/620	N/A	N/A
Ground Clearance	8.4-11.6 (with 35" tire)	8.3-11.5 (with 35" tire)	11.7	13.1
Water Fording (max.)	33.5" (with 33 & 35" tire)	33.5" (with 33 & 35" tire)	36.4	37

Build & Price

SUVs & Cars

Capable, convenient and versatile

Trucks & Vans

Hauling, towing, and off-roading

Electrified

What does going electric mean?

Performance Vehicles

Motorsports, Parts & Clubs

Commercial Vehicles

Ford Pro offers the tools, software and services to keep your business on track and crews on the road.

Future Vehicles

Moving ahead to move you

2024 Bronco® Black Diamond™

Key Features

Heavy-Duty Modular Front Bumper

Rubberized Flooring - Washout Capable with Drain Plugs

Bash Plates - Full Underbody

Exterior Features

Appearance

Standard

Optional

Windows & Glass

Standard

Interior Features

Climate

Standard

Optional

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seats

Standard

Optional

Packages

Packages

Standard

Optional

Power and Handling

Handling

Standard

Optional

Power

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Optional

Specifications

Highlights

Interior

Capacities

Exterior

Engine

Chassis

Towing

Capability
