Comfort and Convenience
Optional
- Front Parking Sensors
1
2024 Escape® Plug-in Hybrid
Key Features
Connected Navigation (with 1 year of connectivity)
Connected Built-In Navigation with Enhanced Voice Recognition pairs with the available head-up display to put navigation guidance in your line of sight. Get access to live traffic updates, receive real-time route guidance and more. *
...less
*Navigation service requires SYNC® 4 and FordPass™ Connect (optional on select vehicles), complimentary Connected Service and the FordPass™ App (see FordPass™ Terms for details). Customer receives a complimentary three-year trial of navigation services when an eligible vehicle is added to member’s FordPass™ account. Trial period begins with new vehicle warranty start date. At the end of the complimentary period, access to connected navigation services will be discontinued.

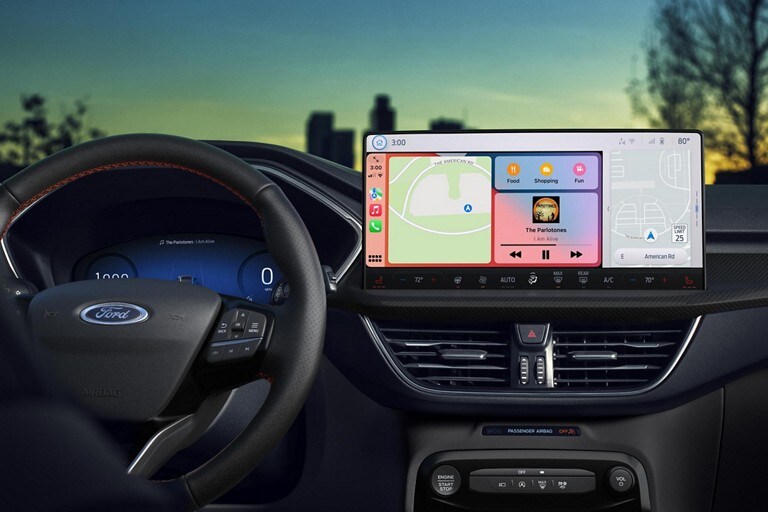

SYNC® 4 with 13.2" LCD Capacitive Touchscreen
An available 13.2-inch touchscreen keeps you connected, with always-visible climate controls that keep comfort at your fingertips.
...less
Power Liftgate
Access your cargo with the touch of a button when your Escape® is equipped with the available power liftgate.
...less
Exterior Features
Appearance
Standard
- Piano Black Grille with Chrome Strip
- Body-color rear spoiler
- Body Color Sideview Mirror Caps
- Mirrors, Sideview - Heated Glass
- Chrome Upper Window Molding with Black Beltline Molding
- Body Color Door Handles
- Configurable Daytime Running Lamps (DRL)
- LED Fog Lamps
- LED Signature Lighting
- Black molded-in-color lower bodyside cladding
- Power Liftgate
- Dual chrome exhaust tips
- Black Roof Rack Side Rails
Optional
- LED Headlamps with coast-to-coast lightbar
- Polished Stainless Steel Beltline Molding
- Black Roof Rack Crossbars
Windows & Glass
Standard
- Privacy Glass - 2nd Row Side and Liftgate
- Front variable intermittent/continuous wipers
- Rear Fixed-intermittent/continuous wiper/washer
Optional
- Rain-Sensing Wipers (front only)
Interior Features
Comfort and Convenience
Standard
- Intelligent Adaptive Cruise Control with Stop-and-Go, Lane Centering and Speed Sign Recognition
- Pre-Collision Assist with Automatic Emergency Braking (AEB), Pedestrian Detection, Forward Collision Warning and Dynamic Brake Support
- Lane-Keeping System (includes Lane-Keeping Assist, Lane-Keeping Alert and Driver Alert)
- Evasive Steering Assist
- Rear Parking Sensors
- BLIS® (Blind Spot Information System) with Rear Cross-Traffic Braking
- Intelligent Access with Push-Button Start
- Remote Start System
- Manual day/night rearview mirror
- Autolamp (Automatic On/Off) with Headlamp Courtesy Delay
- Power Windows with One-Touch-Up/Down Front and Rear
- Carpeted floor mats, front and rear
- Center floor console with armrest
- Rear Center Fold-Down Armrest
- Cup holders, 8 total
- Driver's Side Footrest
- Selectable Drive Modes
- Sliding Sun Visor with Illuminated Vanity Mirrors (Driver and Front Passenger)
- Coat hooks (2), Second-Row
- Grab handles, Front Passenger. Second-Row two
- Outside temperature display
- Center Console with Convenient Media Bin
- Compass
- Ice Blue® Instrument Panel Cluster Lighting
- Second-Row Dome Light
- Front Map Lights
- Message center and trip computer
- 8" Color LCD Instrument cluster
- Manual tilt and telescoping column steering wheel
- Audio Steering Wheel Mounted Controls
- Rotary gear shift dial
- Powerpoints – (2) First Row- (1) USB-A and (1) USB-C
- Powerpoints – (2) Rear – Smart Charging USB Outlets
- Glove Box
- Overhead Console with Sunglasses Storage
- Premium-wrapped heated steering wheel
Optional
- Active Park Assist 2.0
- Auto-dimming rearview mirror
- Floor Liners with Carpet Mats
- Floor Liners without Carpet Mats
- Cargo Mat
- Easy Access Cargo Shade
- Wireless Charging Pad
- Universal Garage Door Opener
- Ambient lighting with Floor Lights
- 12.3" Full Digital Instrument Cluster
- Head-Up Display
- Panoramic Vista Roof®
Entertainment Systems
Standard
- Connected Navigation (with 1 year of connectivity)
- SiriusXM® with 360L
- SYNC® 4 with 13.2" LCD Capacitive Touchscreen
- Wireless Apple CarPlay® and Android Auto™ Compatibility
- FordPass® Connect with 4G LTE Wi-Fi Hotspot
- AM/FM stereo with 6 speakers
Optional
- B&O® Sound System by Bang & Olufsen®, 10-Speakers including subwoofer
Climate
Standard
- Dual-Zone Electronic Automatic Temperature Control
Seating
Standard
- Partial Vinyl and Cloth Sport Contour Bucket Seats
- Heated Front Row Seats
- 4-way Manual Passenger Seat
- 8-way Power Driver Seat
- Second-Row Sliding Seats, 60/40 Split-Fold Down
Optional
- Driver's Seat and Driver/Front Passenger Sideview Mirrors with Memory
- Leather-Trimmed Seats with Quilting Design and Mini-Perforation
- 6-way Power Passenger
- 10-way Power Driver Seat
Packages
Packages
Standard
- Ford Co-Pilot360™
- Cold Weather Package
Optional
- Class II Trailer Tow Package
- PHEV Premium Package
Standard Features
Standard
- Equipment Group 700A
Power and Handling
Handling
Standard
- Electronic Traction Control
- Front-wheel drive
- Four-Wheel Disc Brakes with Anti-Lock Brake System (ABS)
Power
Standard
- Curve Control
- Electric Power-Assisted Steering (EPAS)
- Post-Collision Braking
- eCVT Hybrid/Plug-in Hybrid Transmission
- Plug-in Hybrid 2.5L iVCT Atkinson-Cycle I-4 engine
- Electric Parking Brake
Optional
- Engine Block Heater
Wheels & Tires
Standard
- 18" Machined-face Magnetic Aluminum Wheels with Painted Pockets
- Mini Steel Spare Wheel
Safety
Safety
Standard
- SOS Post-Crash Alert System™
- Tire Pressure Monitoring System (TPMS)
- Head Restraints - two-way manual front and rear
- Personal Safety System™ with dual-stage driver and front-passenger airbags
- Driver Knee Airbag
- Front seat-mounted side-impact airbags
- Safety Canopy® System
- Belt-Minder® (Front and Second-Row)
- Front Row Height Adjustable Retractable Safety Belts with Three-Point on all five (5) Seating Positions
- Lower Anchors and Tether Anchors for Children (LATCH)
Security
Standard
- Auto High-Beam Headlamps
- Rear View Camera
- AdvanceTrac® with RSC® (Roll Stability Control™)
- Torque Vectoring Control
- Keyless-Keysets – Passive Keys, Two (2)
- LED Reflector Headlamps with LED Signature Lighting
- SecuriLock® Passive Anti-Theft System
Optional
- 360-Degree Camera with Split View
- Perimeter alarm
Specifications
Highlights
| Vehicle Highlights | |
|---|---|
| Max Seating Capacity | 5 |
| Drive Type | Front Wheel Drive or available Intelligent All-Wheel-Drive (not available on Plug-in Hybrid) |
| Transmission | 8-Speed Automatic (1.5 and 2.0L only) |
| Wheelbase | 106.7" |
| Maximum Towing Capacity | 3,500 lbs. with available 2.0L EcoBoost and Class II Trailer Tow Package |
| Wheels Available | 17" Shadow Silver-painted Aluminum Wheels - Standard on Active model |
| 18" Rock Metallic painted Aluminum - Standard St-Line and ST-Line Select models | |
| 19" Machined-face Ebony-painted Aluminum - Optional on ST-Line Select and Standard on ST-Line Elite models | |
| 19" Ebony-painted Aluminum -Optional on ST-Line Elite model | |
| 19" Machined-face Aluminum with Dark Tarnished Painted Pockets - Standard on Platinum model | |
| 18" Machined-face Magnetic Aluminum with Painted Pockets- Standard on Plug-in Hybrid models | |
| Warranty | Bumper to Bumper: 3 years / 36,000 miles |
| Powertrain: 5 years / 60,000 miles | |
| Safety Restraint System: 5 years / 60,000 miles | |
| Corrosion (Perforation only): 5 years / Unlimited miles | |
| Roadside Assistance Program: 5 years / 60,000 miles | |
| Hybrid Component Warranty: 8 years / 100,000 miles |
Exterior
| Exterior Dimensions | |
|---|---|
| Drive system | Front-Wheel Drive or Available Intelligent All-Wheel Drive |
| Wheelbase (in.) | 106.7 |
| Length (FWD/AWD) (in.) | 180.1/181.2 |
| Vehicle height (without options) (in.) | 66.0 |
| Vehicle height (without options, Hybrid/Plug-in Hybrid) (in.) | 66.1 |
| Vehicle width with mirrors (in.) | 85.6 |
| Vehicle width without mirrors (in.) | 74.1 |
| Vehicle width with mirrors folded (in.) | 78.7 |
| Track, front (in.) | 62.4 |
| Track, rear (in.) | 61.8 |
Interior
| Interior Dimensions | |
|---|---|
| Head room (without options) (in.) | |
| First row | 40.0 |
| Second row | 39.3 |
| Leg room (in.) | |
| First row (maximum) | 42.4 |
| Second row | 40.7 |
| Second row (Hybrid/Plug-in Hybrid) | 38.9 |
| Hip room (in.) | |
| First row | 55.2 |
| Second row | 53.3 |
| Shoulder room (in.) | |
| First row | 57.6 |
| Second row | 56.0 |
Capacities
| Capacities: Passengers, Luggage, Fuel | |
|---|---|
| Seating capacity | 5 |
| Passenger volume (cu. ft.) (1.5L/2.0L) | 104 |
| Passenger volume (cu. ft.) (Hybrid/Plug-in Hybrid) | 102.2 |
| Behind 1st row (1.5L/2.0L) | 65.4 |
| Behind 1st row (Hybrid/Plug-in Hybrid) | 60.8 |
| Behind 2nd row (maximum) (1.5L/2.0L) | 37.5 |
| Behind 2nd row (maximum) (Hybrid/Plug-in Hybrid) | 34.4 |
| Fuel capacity (gal.) 1.5L EcoBoost (FWD/AWD) | 14.8/15.7 |
| Fuel capacity (gal.) 2.0L EcoBoost | 15.7 |
| Fuel capacity (gal.) 2.5L Hybrid | 14.3 |
| Fuel capacity (gal.) 2.5L Plug-in Hybrid | 11.1 |
| Estimated base curb weights (lbs.) | |
| 2.5L i-VCT Hybrid FWD - ST-Line | 3,519 |
| 2.5L i-VCT Hybrid AWD - ST-Line Select | 3,686 |
| 2.5L i-VCT Plug-in Hybrid FWD | 3,904 |
| 1.5L EcoBoost® FWD - Base | 3,283 |
| 1.5L EcoBoost® AWD - Base | 3,419 |
| 2.0L EcoBoost® AWD - ST-Line Select | 3,543 |
Engine
| Engine Specifications | ||||
|---|---|---|---|---|
| 2.5L hybrid | 2.5L plug-in hybrid | 1.5L EcoBoost® | 2.0L EcoBoost® | |
| Engine type | 2.5L iVCT Atkinson Cycle I-4 Hybrid | 2.5L iVCT Atkinson Cycle I-4 Plug-In Hybrid | 1.5L Ti-VCT GTDI I-3 | 2.0L Ti-VCT GTDI I-4 |
| Drive type | Front-Wheel Drive (FWD)or Intelligent AWD | Front-Wheel Drive (FWD) | Front-Wheel Drive (FWD) or optional Intelligent AWD | Intelligent AWD |
| Exhaust | Dual-Chrome Exhaust Tips | Dual-Chrome Exhaust Tips | Dual-Chrome Exhaust Tips | Dual-Chrome Exhaust Tips |
| Transmission type | eCVT | eCVT | 8-speed Automatic Transmission | 8-speed Automatic Transmission with SelectShift® with Paddle shifters |
| Horsepower (SAE net@rpm) | 163 @ 6,250** | 163 @ 6,250 rpm** | 180 @ 6,000 rpm* | 250 @ 5,500 rpm* |
| Torque (lb.-ft.@rpm) | 155 @ 4,500** | 155 @ 4,500 rpm** | 199 @ 3,000 rpm* | 280 @ 3,000 rpm* |
| Total System Horsepower (Hybrid and Plug-in Hybrid) | 192** | 210** | - | - |
| Compression ratio | 13.0:1 | 13.0:1 | 11.0:1 | 10.8:1 |
| Valve lifters | Direct acting mechanical bucket | Direct acting mechanical bucket | Direct acting mechanical bucket | Roller finger follower |
| Engine block material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cylinder head material | Aluminum | Aluminum | Aluminum | Aluminum |
| Induction system | Naturally aspirated | Naturally aspirated | Turbocharged | Turbocharged |
| Fuel delivery | Sequential multi-port electronic fuel injection | Sequential multi-port electronic fuel injection | Direct injection | Direct injection and port fuel injection |
| Fuel (minimum) | Regular unleaded | Regular unleaded | Regular unleaded | Regular unleaded (Premium recommended) |
| EPA-Estimated Ratings FWD (Actual mileage will vary) | 42 City/36 Hwy/39 Comb. MPG | 101 Comb. MPGe | 27 City/34 Hwy/30 Comb MPG | N/A |
| EPA-Estimated Ratings AWD (Actual mileage will vary) | 42 City/36 Hwy/39 Comb. MPG | N/A | 26 City/32 Hwy/28 Comb MPG | 23 City/31 Hwy/26 Comb MPG |
| *Horsepower and torque ratings based on premium fuel per SAE J1349 standard. Your results may vary. | ||||
| ** Calculated via combined performance of the engine and electric motor(s) with peak battery power. The calculations utilize SAE J1349® engine results and Ford electric motor dyno testing. Your results may vary. |
Chassis
| Chassis Specifications | |
|---|---|
| Front suspension | Independent MacPherson strut-type with stabilizer bar, twin-tube hydraulic gas-pressurized shocks |
| Rear suspension | Independent double lateral link semi-trailing arms with stabilizer bar, progressive-rate springs and hydraulic gas-pressurized shocks |
| Traction assist | AdvanceTrac® with RSC® (Roll Stability Control™) |
| Brakes | Power 4-wheel disc with Anti-Lock Brake System (ABS) |
| Steering | Electric power-assisted steering (EPAS) |
Towing
| Towing | |
|---|---|
| Engine | Maximum Towing Capacity |
| 2.0L EcoBoost AWD (requires Class II Trailer Tow Package) | 3,500 |
| 2.5L Hybrid | 1,500 |
| 2.5L Plug-in Hybrid | 1,500 |
| 1.5L EcoBoost FWD/AWD | 2,000 |
