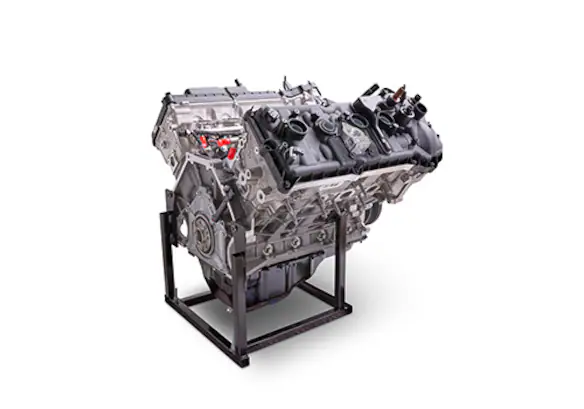

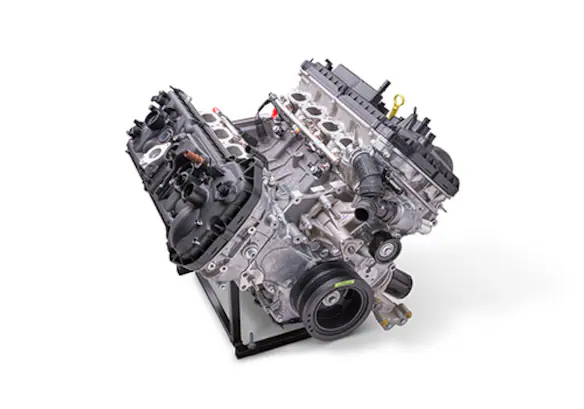

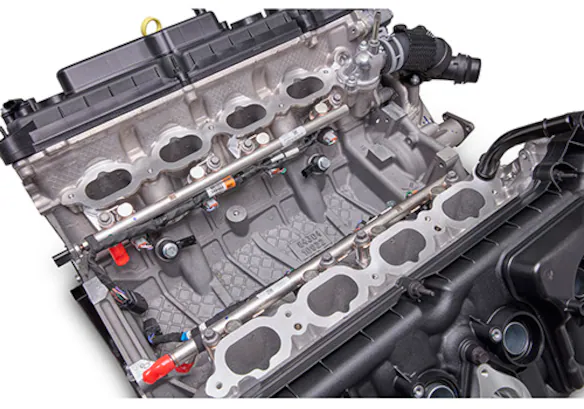

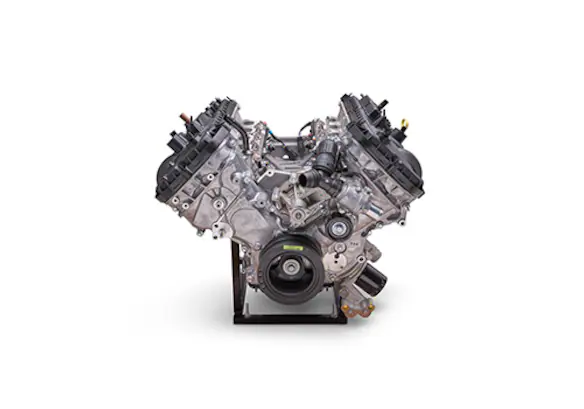

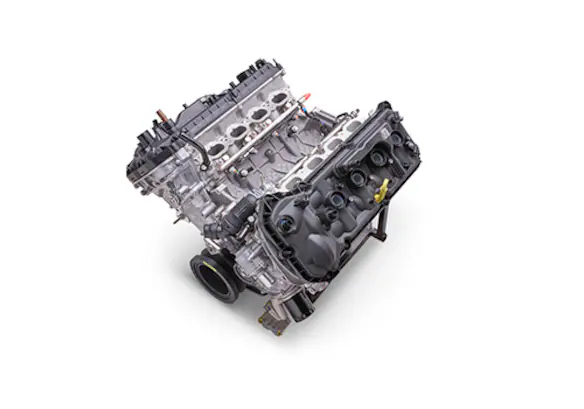

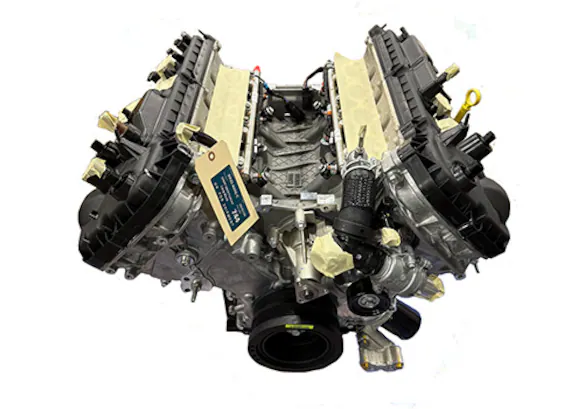

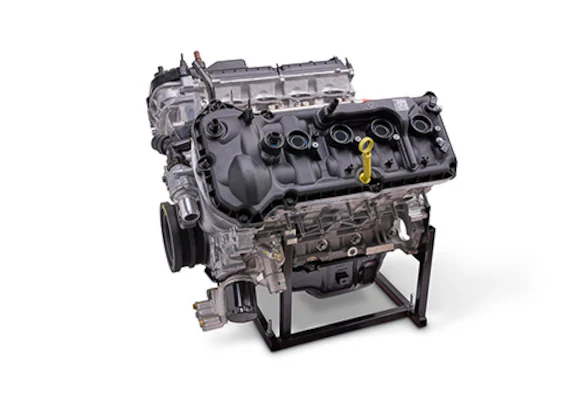

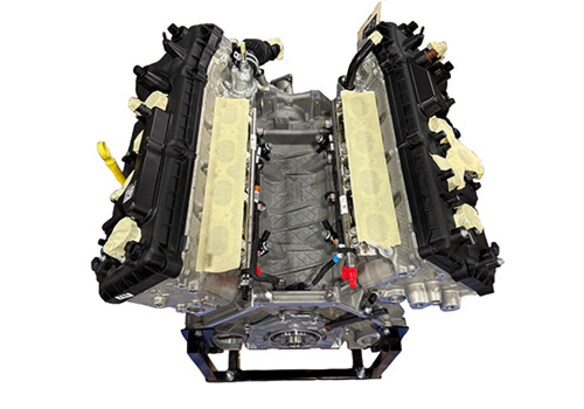

GEN 4 5.0L COYOTE DARK HORSE™ LONG BLOCK
SKU: M6006M50DH
Select vehicle to check fit:
No Vehicle selectedShipping: Ships by Jul 29
Pickup: Free at Dealer by Jul 31
About This Item
About This Item
This long block assembly is a replacement for your 2024 Mustang Dark Horse™ 5.0L and an upgrade for your 2024 Mustang GT 5.0L. The 2024 Mustang 5.0L DOHC 32-valve V-8 uses advanced features such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies and high compression to deliver 500 horsepower in the Dark Horse™.
The lightweight plasma transferred wire arc spray aluminum cylinder block features cross-bolted main bearing caps, thick main bearing bulkheads for bottom-end strength, and optimized oil drainback and windage control to improve high-rpm performance.
- 12.0:1 Compression ratio
- Bore 93 mm x Stroke 92.7 mm
- Hypereutectic aluminum pistons
- Sintered steel connection rods
- Forged steel crankshaft
- Aluminum block that features plasma transferred wire arc spray weld liner coating
- Longer, 12 mm head bolts for higher clamp load
- 9.5 qt capacity steel oil pan
***NOTE: Driver side exhaust flange utilizes 5.2L bolt pattern***
The long block assembly does NOT include:
- Intake manifold/throttle bodies
- Fuel rails/fuel injectors
- Water pump pulley
- Alternator
- Exhaust manifolds
- Flywheel/flex plate
- Engine wiring/PCM
