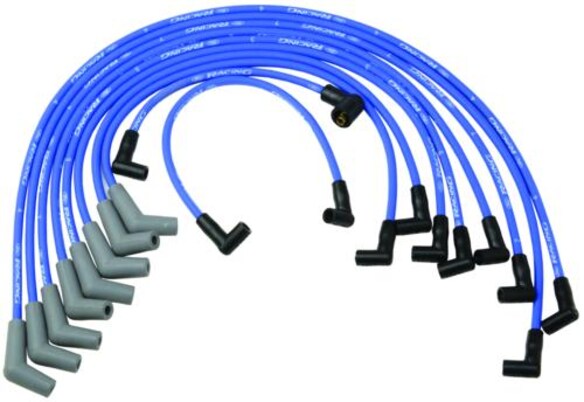

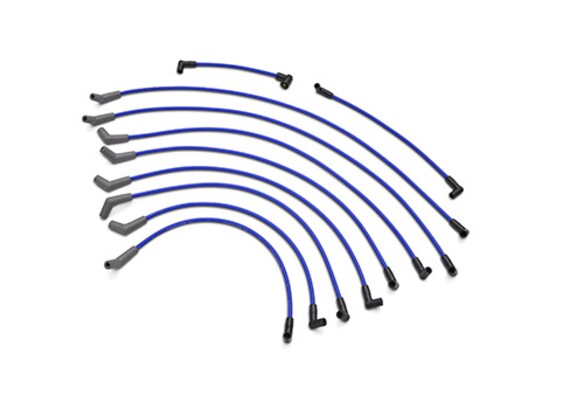

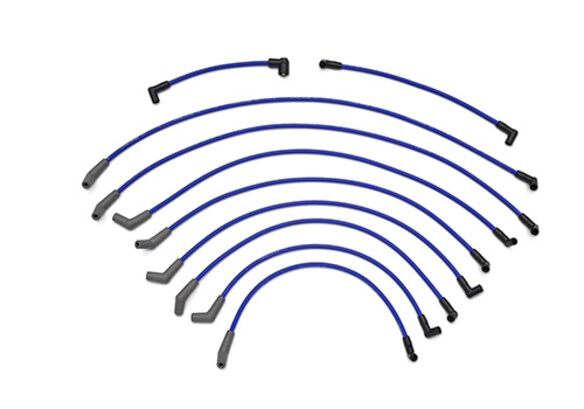

Mustang 1964-1973 Ford Racing 9mm Spark Plug Wire Sets

Rev up your engine's performance with Ford Racing's 9MM Ignition Wire Set, crafted to reduce spark loss and endure the toughest conditions. Available in four dynamic colors, these wires deliver unrivaled reliability and power for your V-8 or Mustang, making every drive a thrilling experience.

9MM SPARK PLUG WIRE SETS - "FORD RACING"

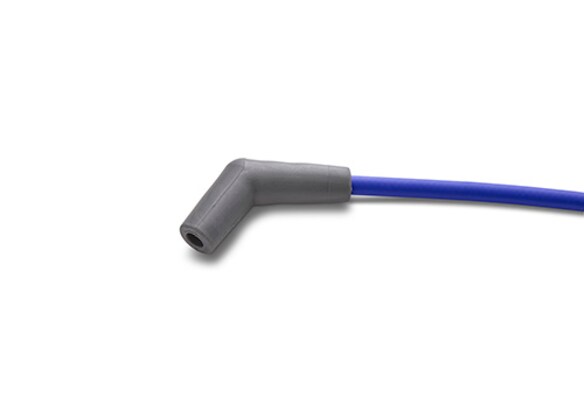

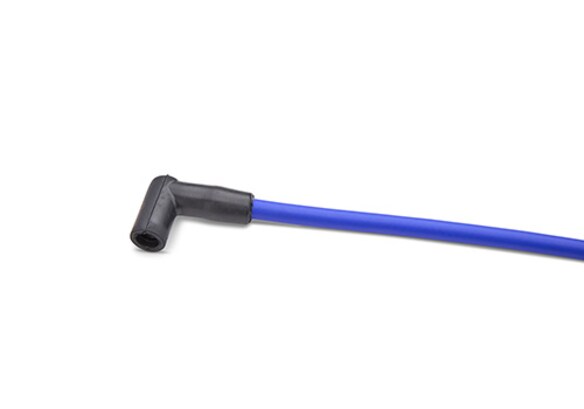

Wire-wound custom ignition wire sets feature low resistance for minimum spark loss. Silicone insulation and boots withstand high temperatures and voltage loss for minimum cross-fire and are highly resistant to fuels, oils and solvents. Long-life, tough stainless steel terminals for post type distributor caps. Includes coil wire for socket-type coil and Ford Racing identification. Cylinder number appears on each wire.

NEW AND IMPROVED Spark plug wires feature high quality 9mm wire available in 4 colors: blue, black, yellow and red.

PART NUMBER	APPLICATION	WIRE COLOR	END CONFIG.
M-12259-C301**	5.0/5.8L V-8 Engine	Blue	45 Boot
M-12259-R301**	5.0/5.8L V-8 Engine	Red	45 Boot
M-12259-M301**	5.0/5.8L V-8 Engine	Black	45 Boot
M-12259-Y301**	5.0/5.8L V-8 Engine	Yellow	45 Boot
M-12259-C460**	7.0/7.5L V-8 Engine	Blue	45 Boot
M-12259-R460**	7.0/7.5L V-8 Engine	Red	45 Boot
M-12259-C302**	V-6 & V-8 Universal	Blue	45 Boot
M-12259-M302**	V-6 & V-8 Universal	Black	45 Boot
M-12259-C462**	4.6L 2V Mustang	Blue	45 Long Boot
M-12259-R462**	4.6L 2V Mustang	Red	45 Long Boot
M-12259-C464**	4.6L 4V Mustang	Blue	45 Long Boot
M-12259-R464**	4.6L 4V Mustang	Red	45 Long Boot
M-12259-T462**	4.6L 2V F-150 Truck	Blue	45 Long Boot

NOTES: Universal sets can be cut to length with a crimping tool. Includes terminals for post and socket type coils, plus easy to follow instructions.
Wire sets M-12259-C301/R301/M301/Y301/C302/M302 do not fit distributorless ignition system (DIS) 5.0L/302 Explorer engines. The universal wire sets do not fit distributorless ignition system (DIS).
