7.3L LH CNC PORTED CYLINDER HEAD

SKU: M6050SD73P

$2,035.00

 to redeem up to
Select vehicle to check fit:No Vehicle selected
Shipping: Ships by Jun 15
Pickup: Free at Dealer by Jun 17

Add to Cart

Add to Cart

About This Item

About This Item

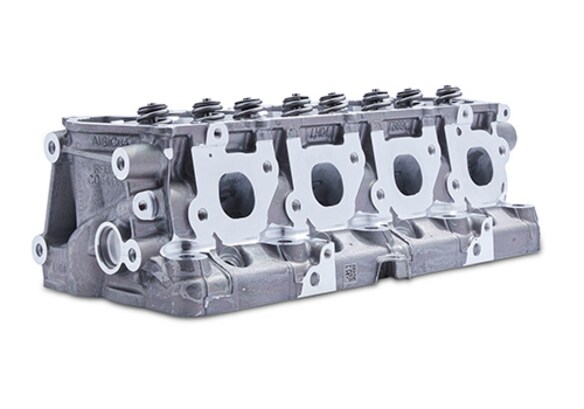

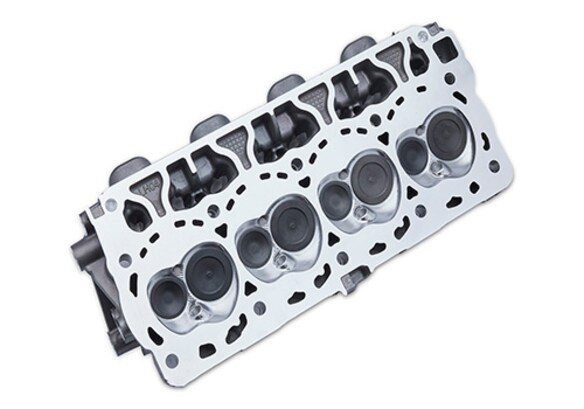

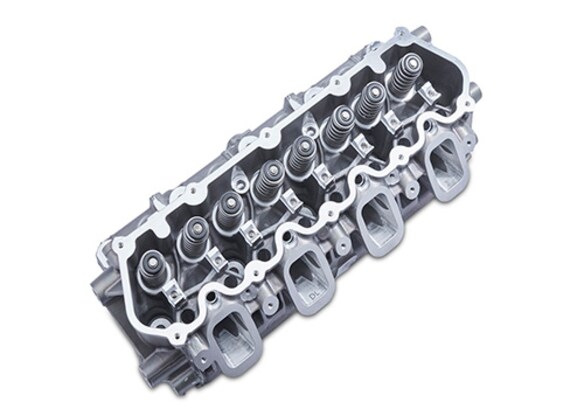

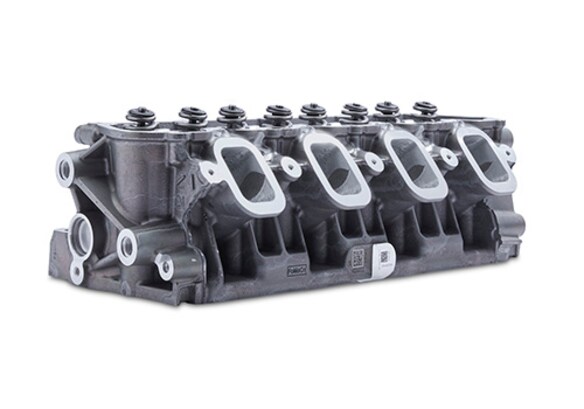

 Ford Performance CNC ported left side cylinder head for 2020+ Super Duty 7.3L gasoline engine.

  • Assembled ready for installation
  • CNC ported Cast aluminum
  • As used in the Ford Performance Megazilla™ 615HP crate engine
  • 62.4 cc combustion chamber
  • PAC 1282LX valve springs / PAC R393 retainers
  • 140-150# @ 2.350" installed height
  • 390-415# @ 1.750" open
  • Valve stem diameter: 8 mm
  • Intake valve diameter: 55mm (2.165")
  • Exhaust valve diameter 42.4mm (1.670")
  • Flow data (CFM) @ 28" H20 on 4.250" bore
  • For right side see M-6049-SD73P

Stock Intake Port   M-6049-SD73P Intake
Lift CFM Lift CFM
0.100" 70.9 0.100" 75.1
0.200" 147.6 0.200" 150.9
0.300" 218.6 0.300" 223.4
0.400" 265 0.400" 271.0
0.500" 299 0.500" 314.0
0.600" 297.8 0.600" 324.7
0.700" 298.4 0.700" 332.3
Stock Exhaust   M-6049-SD73P Exhaust
Lift CFM Lift CFM
0.100" 53.9 0.100" 57.0
0.200" 104.6 0.200" 107.0
0.300" 150.7 0.300" 147.9
0.400" 178.3 0.400" 183.1
0.500" 187.8 0.500" 209.0
0.600" 192.8 0.600" 216.0
0.700" 195.8 0.700" 219.0
