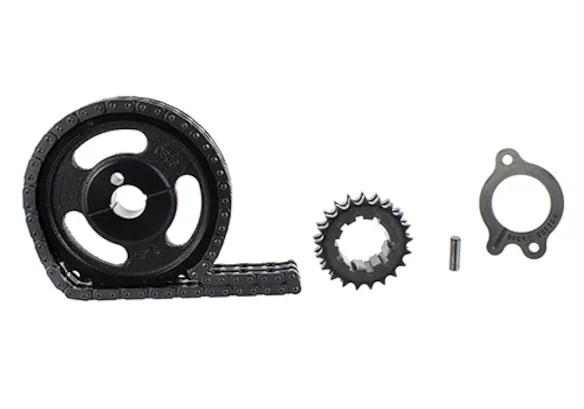

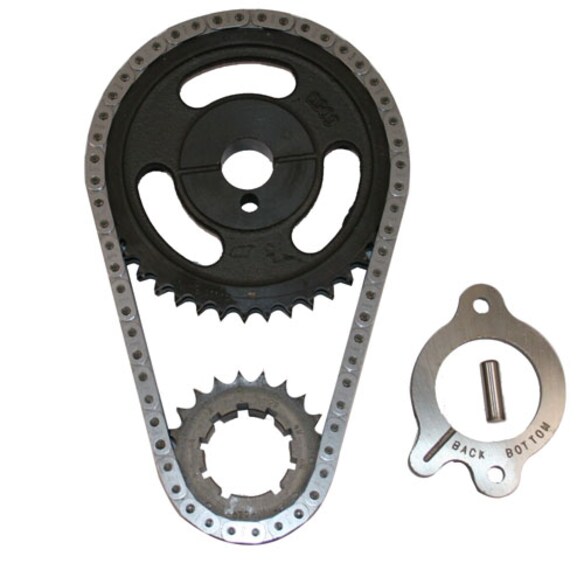

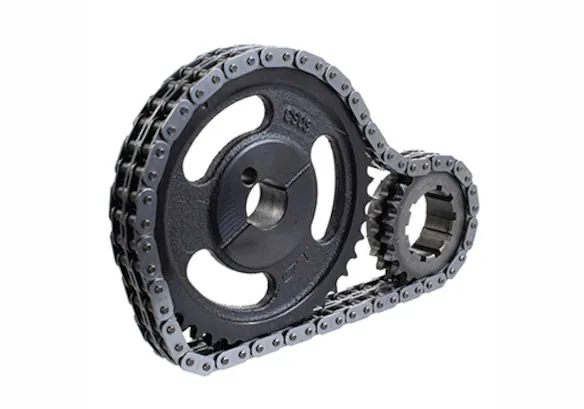

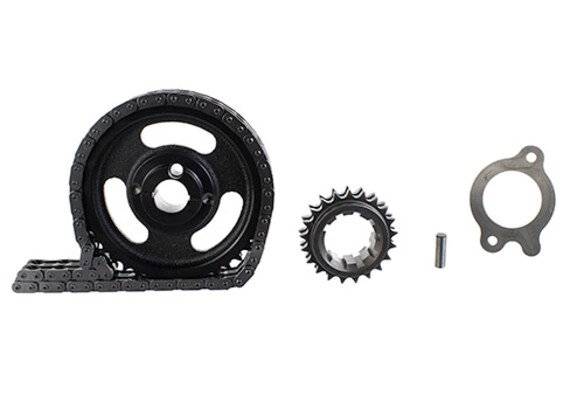

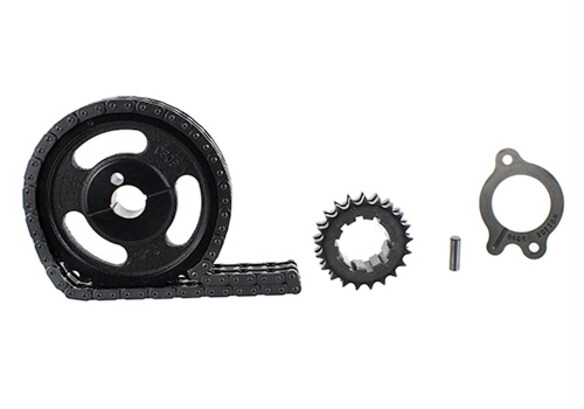

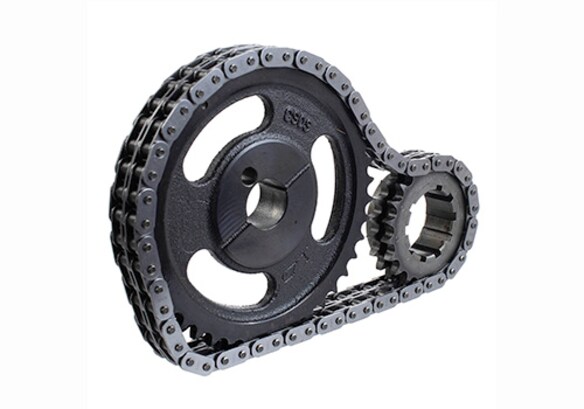

302/351W DOUBLE ROLLER TIMING CHAIN SET - CAST IRON GEAR

SKU: M6268A302

0 No Reviews

$225.00

 to redeem up to
Error IconA triangle shape with a exclamation punctuation mark inside to signal a warning or error
Select vehicle to check fit:No Vehicle selected
Shipping: Ships by Jun 14
Pickup: Free at Dealer by Jun 16
Add to Cart

About This Item


  • Fits:289/302/351W
  • Full roller chain with 9-position multi-index crank sprocket.  The crank sprocket has 2 degree increments for timing adjustment of up to 8 degrees retarded, 8 degrees advanced, or straight-up (no advance or retard).

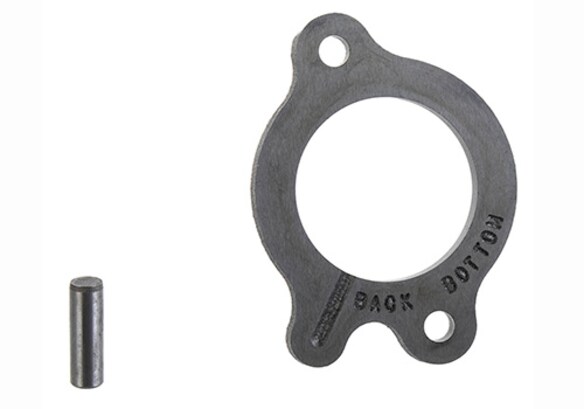

  • Includes thrust plate M-6269-A302 and 1 inch camshaft dowel pin.

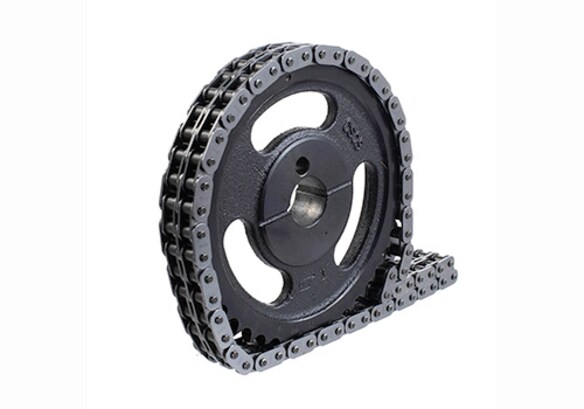

  • Cam sprocket is made from cast iron. Crank sprocket is made from induction-hardened, billet steel

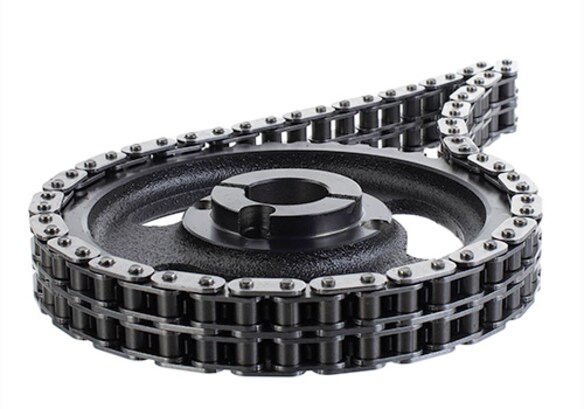

  • Chain is rugged, double-row type with oversized 0.250 inch rollers that deliver long life and reliability
  • Compatible with one-piece fuel pump eccentric M-6287-B302. Depending on camshaft manufacturer and application, other dowel pin length may be required. Not compatible with two-piece fuel pump eccentric
