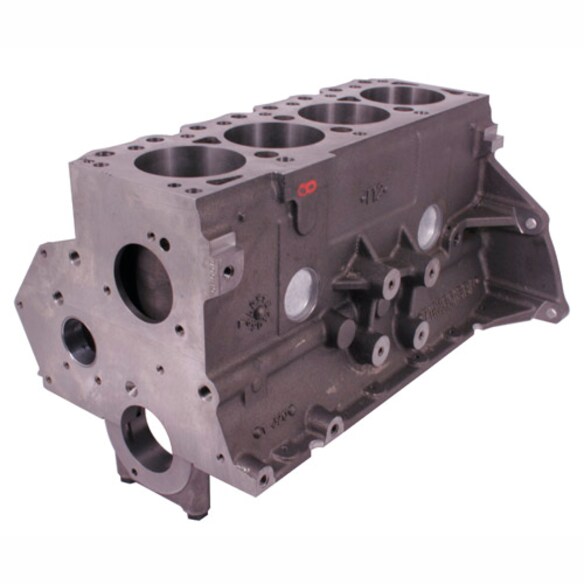

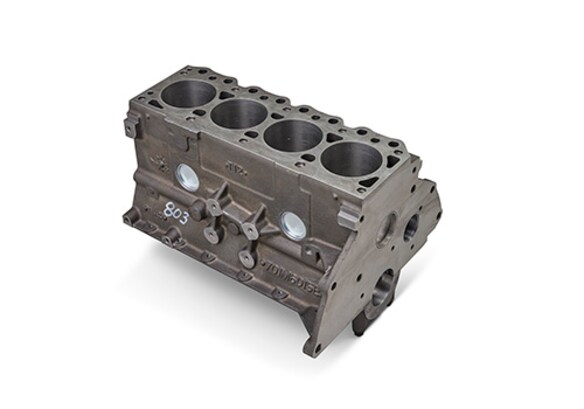

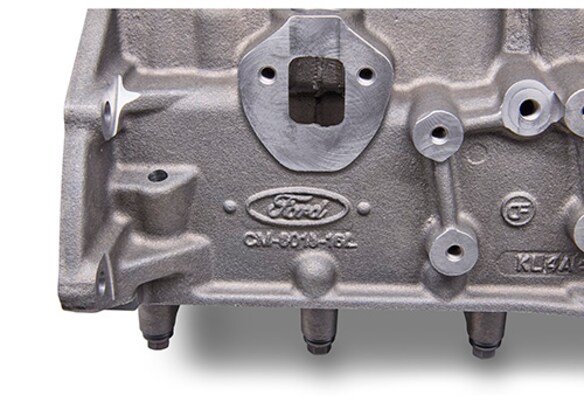

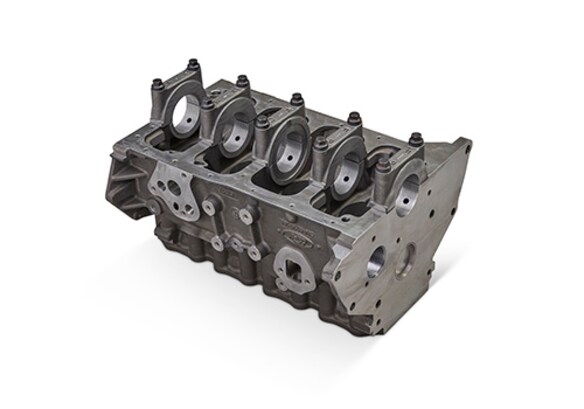

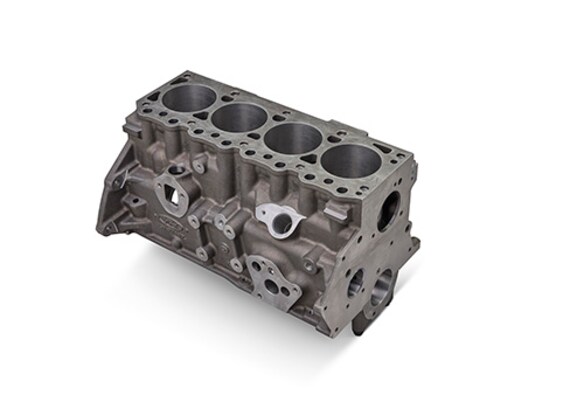

1.6 LITER 4-CYLINDER LOTUS ENGINE BLOCK

SKU: M601016L

Product Thumbnail Section

About This Item

About This Item

The Lotus block features an all new grey iron casting that is stronger than the original and accepts the Lotus cylinder head.

  • Standard 7.800" deck height with extra material for decking
  • Machined and delivered with cylinder bores semi-finished at 3.228 - 3.226" (81.99 - 81.94mm) diameters
  • Block is designed for standard bore engine builds
  • Lifter bore diameter: .5155" - .5145"
  • Block cast from 40,000 PSI grey iron
  • Lower clutch housing bolt bosses reinforced
  • Select areas around main bearing webs strengthened
  • Center main will accept upper and lower crankshaft thrust bearing inserts
  • Includes cam bearings (Installed)
