2020 Ford® Ranger XLT Truck | Model Details & Specs

Exterior Features

Appearance

Standard

Autolamp - automatic on/off headlamps
Bumper, Front: Steel, Frame-Mounted
Bumper, Front - Body-Color
Bumper, Rear: Steel
Bumper, Rear - Body-Color
Cargo lamp, integrated with center high-mounted stop lamp (CHMSL) - Halogen
Daytime Running Lamps - Halogen
Easy Fuel^® capless fuel filler
Headlamps - Halogen
Fog lamps - Halogen
Grille - Carbon Black Mesh with Silver Surround Open image overlay for Grille - Carbon Black Mesh with Silver Surround
Hooks - Front Tow, two (4x2)
Hooks - Front Tow, two (4x4)
Hooks - cargo box tie-down (4)
Handles, door and tailgate - Black
Exhaust - Single Rear
Side Mirrors - Manual Folding, Dual Power Glass Open image overlay for Side Mirrors - Manual Folding, Dual Power Glass
Side Mirrors, Skull Caps - Black
Tailgate - Power Locking
Wheel-lip Moldings - Body Color
Spare Tire Carrier - Rear underframe

Optional

Bumper, Front - Chrome
Bumper, Rear - Chrome
Grille - Unique Chrome (Chrome Appearance Package)
Grille - Black Grille with Magnetic Surround (Sport appearance Package)
Grille - Black Mesh Grille with Black Surround (Black appearance Package)
Bash Plate - Exposed Steel (4x4)
Handles, door and tailgate - Chrome
Exhaust - Chrome Tip
Running Boards, 5" Rectangular, Black Open image overlay for Running Boards, 5" Rectangular, Black
Running Boards, 5” Rectangular, Chrome Open image overlay for Running Boards, 5” Rectangular, Chrome
Wheel-lip Moldings - Magnetic

Comfort and Convenience

Standard

Reverse Sensing System Open image overlay for Reverse Sensing System

Windows & Glass

Standard

Window - Rear - Fixed glass with privacy tint and defroster
Windows - First-row - Power, one-touch up/down driver side
Windows - Second-row - Fixed (SuperCab)
Windows - Second-row - Power (SuperCrew^® )

Optional

Window - Rear - Manual sliding glass with privacy tint and defroster Open image overlay for Window - Rear - Manual sliding glass with privacy tint and defroster

Interior Features

Climate

Standard

Manual air conditioning, Single Zone
Dual-Zone Electronic Automatic Temperature Control Open image overlay for Dual-Zone Electronic Automatic Temperature Control

Comfort and Convenience

Standard

110-volt Power Outlet - Rear Flow-Through Console Open image overlay for 110-volt Power Outlet - Rear Flow-Through Console
4.2" Color Productivity Screen
8" LCD Capacitive Touchscreen in Center Stack with SYNC^® 3

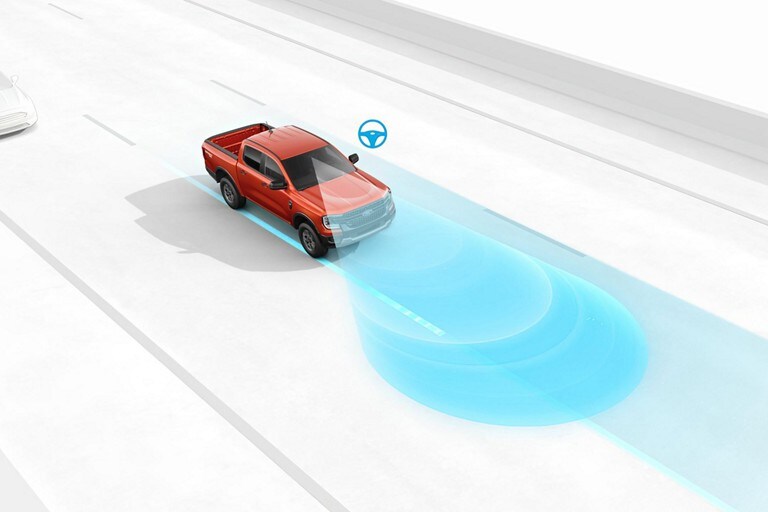

Pre-Collision Assist with Automatic Emergency Braking Open image overlay for Pre-Collision Assist with Automatic Emergency Braking
BLIS^® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Monitoring Open image overlay for BLIS^® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Monitoring
Automatic high beams
Color-coordinated carpet with carpeted floor mats
Locking Glove Box
Cruise control
Delayed accessory power
Dome light
Fade-to-off interior lighting
Flow-through center console with floor shifter
Grab handles (A-Pillar) - Front, Passenger-side
Horn, dual-note
Intermittent windshield wipers
Lane-Keeping System Open image overlay for Lane-Keeping System
MyKey^®
Outside temperature display
Power Door Locks
Power door locks with flip key and integrated key transmitter keyless entry including auto-lock
Powerpoint, 12v - Front, Two (2)
Powerpoint, 12v - Rear
Rearview mirror, Day/Night
Steering wheel - Black urethane
Steering wheel, manual tilt/telescoping
Visors with driver- and passenger-side covered mirrors

Optional

Adaptive Cruise Control Open image overlay for Adaptive Cruise Control
Overhead console
Rearview mirror, Auto-dimming
Steering wheel - Leather-wrapped

Entertainment Systems

Standard

SiriusXM^® Satellite Radio Open image overlay for SiriusXM^® Satellite Radio
Speakers - 6 Audio Speakers
FordPass Connect^™ with 4G LTE Wi-Fi hotspot Open image overlay for FordPass Connect^™ with 4G LTE Wi-Fi hotspot
SYNC^®
911 Assist^®
Applink^®
Smart-Charging USB port - one (1)
SYNC^® 3 Open image overlay for SYNC^® 3

Optional

Voice-activated Navigation with SiriusXM Traffic and Travel Link^®

Seating

Standard

Seats - Front - Bucket seats with center flow-through console, Cloth
Seats - Front - 4-way manual driver with manual lumbar, 4-way manual passenger with manual lumbar
Seats - Rear - Dual Fold Cloth Bench with removable cushions and underseat storage (SuperCab)
Seats - Rear - flip up bench with underseat storage (SuperCrew^® ) Open image overlay for Seats - Rear - flip up bench with underseat storage (SuperCrew^® )

Optional

Seats - Front - 8-way power driver and passenger heated seats with power lumbar

Packages

Standard

Ford Co-Pilot360^™ Technology Open image overlay for Ford Co-Pilot360^™ Technology

Optional

XLT Chrome Appearance Package Open image overlay for XLT Chrome Appearance Package
Black Appearance Package Open image overlay for Black Appearance Package
Sport Appearance Package Open image overlay for Sport Appearance Package
Bed Utility Package
XLT Technology Package Open image overlay for XLT Technology Package
FX4 Off-Road Package (4x4 only) Open image overlay for FX4 Off-Road Package (4x4 only)
FX2 Package (4X2 only) Open image overlay for FX2 Package (4X2 only)
Trailer Tow Package Open image overlay for Trailer Tow Package

Standard Features

Standard

Equipment Group 300A

Value Packages

Optional

Equipment Group 301A
Equipment Group 302A

Power and Handling

Power

Standard

2.3L EcoBoost^® Engine with Auto Start Stop Technology Open image overlay for 2.3L EcoBoost^® Engine with Auto Start Stop Technology
Auto Start-Stop Technology Open image overlay for Auto Start-Stop Technology
Electronic 10-speed Transmission with Tow/Haul Mode Open image overlay for Electronic 10-speed Transmission with Tow/Haul Mode
SelectShift^® Automatic Transmission
Fuel Tank - 18-gallon

Handling

Standard

4x2
Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 only) Open image overlay for Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 only)
Axle, Front - Independent Front Suspension
Brakes - 4-Wheel Disc with ABS
Electronic Power-Assist Steering (EPAS) Electric Motor Open image overlay for Electronic Power-Assist Steering (EPAS) Electric Motor
Fully boxed frame
Suspension - Front - Independent short long arm and tubular stabilizer bar
Suspension - Rear - Hotchkiss-type non-independent live, leaf springs
Shock Absorbers, Front - Gas
Shock Absorbers, Rear - Gas
Springs, Front - Coil
Springs, Rear - Leaf, two-stage linear rate
Trailer Sway Control Open image overlay for Trailer Sway Control
Trailer Towing - 4-pin wiring, ball mounting provisions in rear bumper

Optional

4x4
Engine Block Heater
Electronic-Locking Rear Differential Open image overlay for Electronic-Locking Rear Differential
Terrain Management System^™ with four selectable drive modes
Trail Control^™ (Contains Hill Descent Control^™ )

Wheels & Tires

Standard

17-inch Silver-painted Aluminum Wheel Open image overlay for 17-inch Silver-painted Aluminum Wheel
255/65R17 BSW all-season tires (4x2)

Optional

17-inch Chrome-like PVD Wheel Open image overlay for 17-inch Chrome-like PVD Wheel
17-inch Magnetic-painted Aluminum Wheel Open image overlay for 17-inch Magnetic-painted Aluminum Wheel
18-inch Chrome-like PVD Wheel Open image overlay for 18-inch Chrome-like PVD Wheel
18-inch Machined Aluminum Wheel w/Magnetic Pockets Open image overlay for 18-inch Machined Aluminum Wheel w/Magnetic Pockets
18-inch Black Painted Aluminum Wheel with Black Center Cap Open image overlay for 18-inch Black Painted Aluminum Wheel with Black Center Cap
255/65R17 BSW all-terrain tires (4x4)
265/65R17 OWL all-terrain tires (4x4)
LT265/65R17 OWL all-terrain tires (4x4)
265/60R18 BSW all-terrain tires (4x4)
265/60R18 OWL all-terrain tires (4x4)

Safety

Standard

Rear View Camera Open image overlay for Rear View Camera
AdvanceTrac^® with Roll Stability Control^™ (RSC^® ) Open image overlay for AdvanceTrac^® with Roll Stability Control^™ (RSC^® )
Airbags - Front, Driver and passenger
Airbags - Front, Driver and passenger seat-mounted side
Airbags - Safety Canopy^® side curtains
Curve Control Open image overlay for Curve Control
Four-Wheel Anti-Lock Brakes
Child Seat Tether Anchors
Safety belts - Active Restraint System (ARS), three-point manual lap/shoulder belts with height adjusters, pretensioners and energy management retractors on outside front positions
Child-proof rear-door-locks (SuperCrew^® )
Tire Pressure Monitoring System (TPMS) Open image overlay for Tire Pressure Monitoring System (TPMS)

Security

Standard

Perimeter anti-theft alarm
Remote Keyless Entry System
SecuriLock^® passive anti-theft system
SOS Post-Crash Alert System^™
Spare tire and wheel lock

Optional

Remote Start System

Accessories

Specifications

Highlights

Engine Highlights
Available Engines	2.3L Ti-VCT I-4
Horsepower	270
Torque	310
Auto Start/Stop Technology	Standard
Fuel Consumption - 4x2	21/26
Fuel Consumption - 4x4	20/24
Vehicle Capacity Highlights
Available Cab Types	SuperCab	SuperCab	SuperCrew^®	SuperCrew^®
Drive Type	4x2	4x4	4x2	4x4
Max Seating Capacity	4	4	5	5
Wheelbase	126.8 in.	126.8 in.	126.8 in.	126.8 in.
Maximum Conventional Towing (When properly configured)	7,500 lbs.	7,500 lbs.	7,500 lbs.	7,500 lbs.
Maximum Payload (When properly configured)	1,860 lbs.	1,650 lbs.	1,770 lbs.	1,560 lbs.
Min Vehicle Base Curb Weight	4,145 lbs.	4,354 lbs.	4,232 lbs.	4,441 lbs.
Trim Highlights
Available Trims	XL XLT LARIAT
Transmission - 10-Speed SelectShift^® Automatic	Standard
Available Drive Types	4x2 4x4
Warranties
	Time	Distance
Warranty - Bumper to Bumper	3 years	36,000 miles
Warranty - Powertrain	5 years	60,000 miles
Warranty - Safety Restraint System	5 years	60,000 miles
Warranty - Aluminum Body Panels	5 years	Unlimited miles
Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum)	5 years	Unlimited miles
Warranty - Paint Adhesion	5 years	Unlimited miles
Warranty - Roadside Assistance Program	5 years	60,000 miles

Exterior

Exterior Dimensions - Cab
Cab style	SuperCab		SuperCrew^®
Pickup box style	6 ft. Styleside		5 ft. Styleside
Drive system	4x2	4x4	4x2	4x4
Wheelbase	126.8 in.	126.8 in.	126.8 in.	126.8 in.
Overall length	210.8 in.	210.8 in.	210.8 in.	210.8 in.
Cab to Axle (Pick Up Box Delete)	31.3 in.	-	-	-
Cab height	70.9 in.	71.5 in.	71.2 in.	71.8 in.
Width - Excluding mirrors	73.3 in.	73.3 in.	73.3 in.	73.3 in.
Width - Including standard mirrors	85.8 in.	85.8 in.	85.8 in.	85.8 in.
Width - Standard Mirrors folded	77.8 in.	77.8 in.	77.8 in.	77.8 in.
Track width - Front	61.4 in.	61.4 in.	61.4 in.	61.4 in.
Track width - Rear	61.4 in.	61.4 in.	61.4 in.	61.4 in.
Overhang - Front	35.8 in.	35.8 in.	35.8 in.	35.8 in.
Overhang - Rear	48.2 in.	48.2 in.	48.2 in.	48.2 in.
Angle of approach	27.9 degrees	28.7 degrees	27.9 degrees	28.7 degrees
Angle of departure	25.2 degrees	25.4 degrees	25.2 degrees	25.4 degrees
Ramp breakover angle	22.7 degrees	21.5 degrees	22.7 degrees	21.5 degrees
Ground clearance	8.4 in.	8.9 in.	8.4 in.	8.9 in.
Open tailgate to ground	33.1 in.	33.8 in.	33.1 in.	33.8 in.
Front bumper to back of cab	132.1 in.	132.1 in.	143.8 in.	143.8 in.
Exterior Dimensions - Cargo Box
Cargo box style	6 ft. Styleside	5 ft. Styleside
Inside Length (at floor)	72.8 in.	61.0 in.
Width between wheelhouses	44.8 in.	44.8 in.
Inside Height	20.8 in.	20.8 in.
Cargo box volume	51.8 cu. Ft.	43.3 cu. Ft.

Capacities

Passengers and Fuel
Cab style	SuperCab (Pick Up Box Delete)	SuperCab	SuperCab	SuperCrew^®	SuperCrew^®
Pickup box style	6 ft. Styleside	6 ft. Styleside	6 ft. Styleside	5 ft. Styleside	5 ft. Styleside
Wheelbase	126.8 in.	126.8 in.	126.8 in.	126.8 in.	126.8 in.
Drive system	4x2	4x2	4x4	4x2	4x4
Seating capacity	4	4	4	5	5
Fuel Capacity	18 gal.	18 gal.	18 gal.	18 gal.	18 gal.
Curb Weight
Cab style	SuperCab (Pick Up Box Delete)	SuperCab	SuperCab	SuperCrew^®	SuperCrew^®
Pickup box style	6 ft. Styleside	6 ft. Styleside	6 ft. Styleside	5 ft. Styleside	5 ft. Styleside
Drive system	4x2	4x2	4x4	4x2	4x4
Base Curb Weight - 2.3L EcoBoost^®	3,922 lbs.	4,145 lbs.	4,232 lbs.	4,354 lbs.	4,441 lbs.

Interior

Interior Dimensions
Cab style	SuperCab	SuperCrew^®
Head room - Front	39.8 in.	39.8 in.
Head room - Rear	35.9 in.	38.3 in.
Shoulder room - Front	56.6 in.	56.7 in.
Shoulder room - Rear	55.2 in.	56.3 in.
Hip room - Front	55.8 in.	55.8 in.
Hip room - Rear	55.3 in.	53.5 in.
Max Leg room - Front	43.1 in.	43.1 in.
Leg room - Rear	30.4 in.	34.5 in.

Engine

Engine Specifications
Engine type	2.3L EcoBoost^®
Auto Start/Stop Technology	Standard
Engine Control System	PCM
Horsepower (SAE net @ rpm)	270
Torque (lb.-ft. @ rpm)	310
Compression ratio	10.0:1
Bore (in.)	3.45 in.
Stroke (in.)	3.7 in.
Displacement (cu. in.)	140 cu. in.
Fuel delivery	Direct Injection
Recommended Fuel	87 Octane
Oil Capacity	6.2 quarts
Fuel Consumption - 4x2	21/26
Fuel Consumption - 4x4	20/24
Transmission type	Electronic 10-speed automatic
Transmission - Tow/Haul	Standard
Transmission - SelectShift^® w/ Progressive Range Select	Standard
Engine block material	Aluminum
Cylinder head material	Aluminum

Chassis

Chassis Specifications
Chassis Type	Ranger
Front suspension	Independent short long arm and tubular stabilizer bar
Rear suspension	Hotchkiss-type non-independent live, leaf springs and outboard shock absorbers
Front and rear shocks	Gas-Pressurized
Brakes	Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac electronic stability control
Steering	Electric power-assisted, rack-and-pinion

Towing

Maximum Conventional Towing Capabilities
SuperCab
Drive Type	4x2 (Pick Up Box Delete)	4x2	4x4
Engine with Automatic Transmission	2.3L EcoBoost^® I-4	2.3L EcoBoost^® I-4	2.3L EcoBoost^® I-4
Wheelbase	126.8 in.	126.8 in.	126.8 in.
Axle Ratio	3.73	3.73	3.73
GCWR	12,500 lbs.	12,150 lbs.	12,400 lbs.
Maximum Conventional Towing Capabilities	7,500 lbs.	7,500 lbs.	7,500 lbs.
SuperCrew^®
Drive Type	4x2	4x4
Engine with Automatic Transmission	2.3L EcoBoost^® I-4	2.3L EcoBoost^® I-4
Wheelbase	126.8 in.	126.8 in.
Axle Ratio	3.73	3.73
GCWR	12,250 lbs.	12,500 lbs.
Maximum Conventional Towing Capabilities	7,500 lbs.	7,500 lbs.

Payload

Maximum Payload Capabilities
SuperCab
Drive Type	4x2 (Pick Up Box Delete)	4x2	4x4
Wheelbase	126.8 in.	126.8 in.	126.8 in.
GVWR	6,050 lbs.	6,050 lbs.	6,050 lbs.
Maximum Payload Capabilities	2,080 lbs.	1,860 lbs.	1,650 lbs.
SuperCrew^®
Drive Type	4x2	4x4
Wheelbase	126.8 in.	126.8 in.
GVWR	6,050 lbs.	6,050 lbs.
Maximum Payload Capabilities	1,770 lbs.	1,560 lbs.

COMMERCIAL VEHICLES

PERFORMANCE VEHICLES

FUTURE VEHICLES

SUVS & CROSSOVERS

TRUCKS & VANS

ELECTRIFIED

CARS

2020 Ranger XLT

Key Features

Ford Co-Pilot360™ Technology

FX4 Off-Road Package (4x4 only)

Technology Package

Exterior Features

Appearance

Standard

Optional

Comfort and Convenience

Standard

Windows & Glass

Standard

Optional

Interior Features

Climate

Standard

Comfort and Convenience

Standard

Optional

Entertainment Systems

Standard

Optional

Seating

Standard

Optional

Packages

Packages

Standard

Optional

Standard Features

Standard

Value Packages

Optional

Power and Handling

Power

Standard

Handling

Standard

Optional

Wheels & Tires

Standard

Optional

Safety

Safety

Standard

Security

Standard

Optional

Accessories

Exterior

Optional

Factory Invoiced

Optional

Specifications

Highlights

Exterior

Capacities

Interior

Engine

Chassis

Towing

Payload

Ford Co-Pilot360^™ Technology
