Power
Standard
- 2.3L EcoBoost® Engine with Auto Start-Stop Technology
- 10-speed SelectShift® automatic transmission
- Fuel Tank - 18-gallon
EPA-Est. MPG City/Hwy2
21/26
Key Features
Seats - Front - Leather-Trimmed Bucket Front-Seats with power adjustments
Heated front leather-trimmed seating and rear leather-trimmed seats come standard on LARIAT SuperCrew® models. Driver and front passenger bucket seats include 8-Way power adjustable driver including lumbar, 6-Way power adjustable passenger including power lumbar; Manual reclining driver and passenger; Heated front-seats; Flow-through console and floor shift.
...less

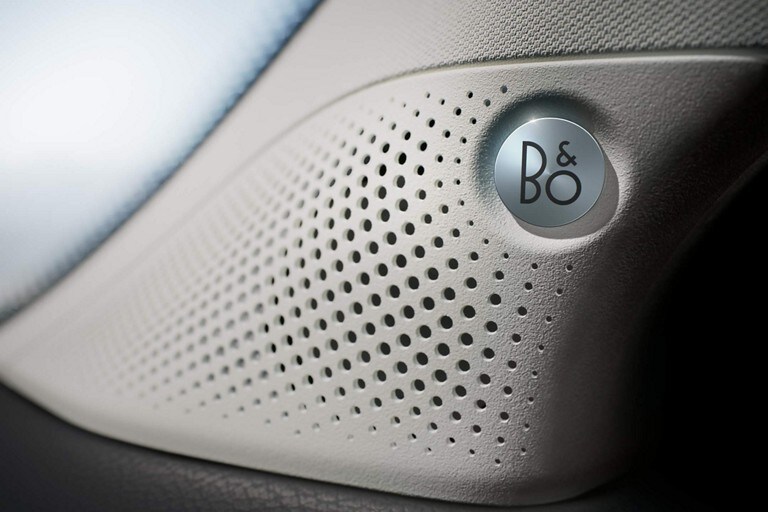

B&O Sound System by Bang & Olufsen with HD Radio™ (SuperCrew only)
Enjoy outstanding entertainment with the power and clarity of the available B&O Sound System by Bang & Olufsen. Featuring 10 premium speakers and up to 660 watts of amplified power, the B&O sound experience is true to the artist’s intent thanks to specifically tailored speaker placement, tuning and calibration.
...less
BANG & OLUFSEN© 2021 and B&O© 2021. BANG & OLUFSEN™ and B&O™ are registered trademarks of Bang & Olufsen Group. Licensed by Harman Becker Automotive Systems Manufacturing Kft. All rights reserved.
Power and Handling
Handling
Standard
- 4x2
- Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 only) Open image overlay for Electronic-Shift-On-the-Fly (ESOF) with Neutral Towing Capability (4x4 only)
- Axle, Front - Independent Front Suspension
- Brakes - 4-Wheel Disc with ABS
- Electronic Power-Assist Steering (EPAS) Open image overlay for Electronic Power-Assist Steering (EPAS)
- Fully-boxed, high-strength steel frame
- Suspension - Front - Independent short long arm and solid stabilizer bar
- Suspension - Rear - Hotchkiss-type non-independent live, parabolic leaf springs
- Shock Absorbers, Front - Gas
- Shock Absorbers, Rear - Gas
- Springs, Front - Coil
- Springs, Rear - Leaf, two-stage linear rate
- Trailer Sway Control
- Trailer Towing - 4-pin wiring, ball mounting provisions in rear bumper
Optional
- 4x4
- Engine Block Heater
- Electronic-Locking Rear Differential Open image overlay for Electronic-Locking Rear Differential
- Terrain Management System™ with four selectable drive modes
- Trail Control™ (Contains Hill Descent Control™ )
Wheels & Tires
Standard
- 18-inch Machined Aluminum Wheel w/Stealth Gray Pockets Open image overlay for 18-inch Machined Aluminum Wheel w/Stealth Gray Pockets
- 265/60R18 BSW all-season tires (4x2)
- 265/60R18 BSW all-terrain tires (4x4)
Optional
- 17-inch Magnetic-Painted Aluminum Wheels - Sport Open image overlay for 17-inch Magnetic-Painted Aluminum Wheels - Sport
- 17-inch Magnetic-Painted Aluminum Wheels - Tremor
- 18-inch Chrome-Like PVD Wheels Open image overlay for 18-inch Chrome-Like PVD Wheels
- 18-inch Machined Aluminum Wheels w/Magnetic Pockets Open image overlay for 18-inch Machined Aluminum Wheels w/Magnetic Pockets
- 18-inch Black Painted Aluminum Wheels with Black Center Cap
- 265/65R17 OWL all-terrain tires (4x4)
- LT265/65R17 OWL all-terrain tires (4x4)
- 265/60R18 OWL all-terrain tires (4x4)
- LT265/70R17 all-terrain tires (Tremor)
Interior Features
Seating
Standard
- Seats - Front - Leather-Trimmed Bucket Front-Seats with power adjustments Open image overlay for Seats - Front - Leather-Trimmed Bucket Front-Seats with power adjustments
- Seats - Rear - Outboard Leather - Trimmed Bench Seats and Under Seat Storage (SuperCrew® )
- Seats - Rear - Outboard Leather - Trimmed Dual Fold Bench Seat and Under Seat Storage (SuperCab)
Optional
- Seats - Front - Tremor Only - Leather-Trimmed Bucket Front-Seats w/ Miko Suede Inserts with power adjustments Open image overlay for Seats - Front - Tremor Only - Leather-Trimmed Bucket Front-Seats w/ Miko Suede Inserts with power adjustments
Climate
Standard
- Dual-Zone Electronic Automatic Temperature Control Open image overlay for Dual-Zone Electronic Automatic Temperature Control
Entertainment Systems
Standard
- SiriusXM® Open image overlay for SiriusXM®
- Speakers - 6 Audio Speakers
- FordPass Connect™ with 4G LTE Wi-Fi Hotspot Open image overlay for FordPass Connect™ with 4G LTE Wi-Fi Hotspot
- 911 Assist®
- Applink®
- SYNC® 3 Open image overlay for SYNC® 3
Optional
- Speakers - 10 Speakers (SuperCrew® Only)
- B&O Sound System by Bang & Olufsen with HD Radio™ (SuperCrew only) Open image overlay for B&O Sound System by Bang & Olufsen with HD Radio™ (SuperCrew only)
- Voice-activated Navigation with SiriusXM Traffic and Travel Link®
Comfort and Convenience
Standard
- 110-volt Power Outlet - Rear Flow-Through Console
- Dual 4.2" Productivity Screens Open image overlay for Dual 4.2" Productivity Screens

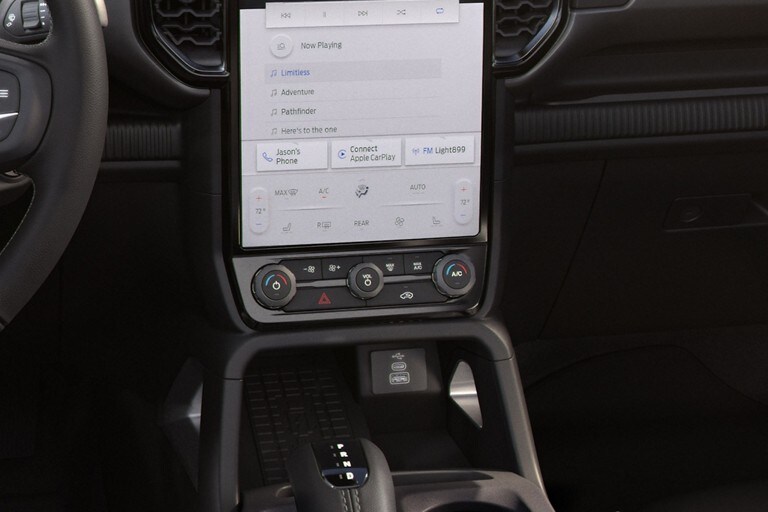

- 8" LCD Capacitive Touchscreen in Center Stack with available SYNC® 3
- Pre-Collision Assist with Automatic Emergency Braking Open image overlay for Pre-Collision Assist with Automatic Emergency Braking
- BLIS® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Coverage Open image overlay for BLIS® (Blind Spot Information System) with Cross-Traffic Alert and Trailer Coverage
- Ambient lighting Open image overlay for Ambient lighting
- Automatic high beams
- Color-coordinated carpet with carpeted floor mats
- Floor Mats - Carpeted
- Locking Glove Box
- Cruise control
- Delayed accessory power
- Dome light
- Fade-to-off interior lighting
- Flow-through center console with floor shifter
- Grab handles (A-Pillar) - Front, Passenger-side
- Horn
- Intermittent windshield wipers
- Lane-Keeping System Open image overlay for Lane-Keeping System
- MyKey®
- Outside temperature display
- Overhead console
- Power Door Locks
- Intelligent Access with Push-Button Start Open image overlay for Intelligent Access with Push-Button Start
- Powerpoint, 12v - Front, Two (2)
- Powerpoint, 12v - Rear
- Rearview mirror, Auto-dimming
- Steering wheel - Leather-wrapped
- Steering wheel, manual tilt/telescoping
- Visors with driver- and passenger-side illuminated, covered mirrors
Optional
- Adaptive Cruise Control Open image overlay for Adaptive Cruise Control
- Rain-sensing wipers Open image overlay for Rain-sensing wipers
- Universal garage door opener
Exterior Features
Appearance
Standard
- Autolamp - automatic on/off headlamps
- Bumper, Front - Steel, Frame-Mounted
- Bumper, Front - Body-Color
- Bumper, Rear - Steel
- Bumper, Rear - Body-Color
- Cargo lamp, integrated with center high-mounted stop lamp (CHMSL) - LED
- Daytime Running Lamps - LED
- LED Headlamps and Taillamps Open image overlay for LED Headlamps and Taillamps
- Fog lamps - LED
- Grille - Black with Chrome Bars with Chrome Surround Open image overlay for Grille - Black with Chrome Bars with Chrome Surround
- Tow hooks - Front, two (4x4)
- Hooks - Cargo box tie-down (4)
- Handles, door - Body-Color
- Exhaust - Single Rear
- Side Mirrors - Power-Folding, Dual Power Glass with Heat, Integrated Turn Signal & Security Approach Lights Open image overlay for Side Mirrors - Power-Folding, Dual Power Glass with Heat, Integrated Turn Signal & Security Approach Lights
- Side Mirrors - Skull Caps - Body-Color
- Tailgate - Power Locking
- Wheel-lip Moldings - Body Color
- Spare Tire Carrier - Rear underframe
Optional
- Bumper, Front - Chrome
- Bumper, Front - Magnetic
- Bumper, Rear - Magnetic
- Bumper, Rear - Chrome
- Grille - Black Grille with Painted Black Surround and Black Bars (Black Appearance Package)
- Grille - Black with Magnetic Surround and Magnetic Bars (Sport Appearance Package)
- Grille - Black Two Bar Style with Red Accent Nostrils and Magnetic Surround
- Tow hooks - Front, two (4x2) (Optional with FX2 Package Only)
- Tow Hooks - Rear, Two (Tremor)
- Bash Plate - Exposed Steel (4x4)
- Tremor Body - Side and Hood Graphic
- Handles, door and tailgate - Chrome
- Exhaust - Chrome Tip
- Side Mirrors - Skull Caps - Chrome
- Running Boards - 5" Rectangular, Black Open image overlay for Running Boards - 5" Rectangular, Black
- Running Boards - 5" Rectangular, Chrome Open image overlay for Running Boards - 5" Rectangular, Chrome
- Step Bars - Off-Road, Hoop Style, Black (Tremor)
- Wheel-lip Moldings - Magnetic
Comfort and Convenience
Standard
- Easy Fuel® capless fuel filler
- Reverse Sensing System Open image overlay for Reverse Sensing System
Optional
- Forward Sensing System Open image overlay for Forward Sensing System
Protection
Optional
- Paint Protection Film
Windows & Glass
Standard
- Window - Rear - Manual sliding glass with privacy tint and defroster Open image overlay for Window - Rear - Manual sliding glass with privacy tint and defroster
- Windows - First-row - Power, one-touch up/down driver side
- Windows - Second-row - Fixed (SuperCab)
- Windows - Second-row - Power (SuperCrew® )
Safety
Safety
Standard
- Rear View Camera Open image overlay for Rear View Camera
- AdvanceTrac® with RSC® (Roll Stability Control™ ) Open image overlay for AdvanceTrac® with RSC® (Roll Stability Control™ )
- Airbags - Front, Driver and passenger
- Airbags - Front, Driver and passenger seat-mounted side
- Airbags - Safety Canopy® side curtains
- Curve Control Open image overlay for Curve Control
- Four-Wheel Anti-Lock Brakes
- Child Seat Tether Anchors
- Safety belts - Active Restraint System (ARS), three-point manual lap/shoulder belts with height adjusters, pretensioners and energy management retractors on outside front positions
- Child-proof rear-door-locks (SuperCrew® )
- Tire Pressure Monitoring System (TPMS) Open image overlay for Tire Pressure Monitoring System (TPMS)
Security
Standard
- Perimeter anti-theft alarm
- Remote Keyless Entry System
- SecuriLock® passive anti-theft system
- SOS Post-Crash Alert System™
- Spare tire and wheel lock
Optional
- Remote Start System
Packages
Packages
Standard
- Ford Co-Pilot360™ Technology Open image overlay for Ford Co-Pilot360™ Technology
Optional
- LARIAT Chrome Appearance Package Open image overlay for LARIAT Chrome Appearance Package
- Tremor Off-Road Package Open image overlay for Tremor Off-Road Package
- Black Appearance Package Open image overlay for Black Appearance Package
- LARIAT Sport Appearance Package Open image overlay for LARIAT Sport Appearance Package
- Bed Utility Package
- Technology Package Open image overlay for Technology Package
- FX4 Off-Road Package (4x4 only) Open image overlay for FX4 Off-Road Package (4x4 only)
- FX2 Package (4X2 only) Open image overlay for FX2 Package (4X2 only)
- Trailer Tow Package Open image overlay for Trailer Tow Package
Standard Features
Standard
- Equipment Group 500A
Value Packages
Optional
- Equipment Group 501A Open image overlay for Equipment Group 501A
Accessories
Exterior
Optional
- Tough Bed® Spray-In Bedliner
- Splash Guards/Mud Flaps Open image overlay for Splash Guards/Mud Flaps
- SecuriCode™ keyless entry keypad, driver's side
- Pickup Box Extender
Factory Invoiced
Optional
- Tonneau Pickup Box Cover - Hard
- Tonneau Pickup Box Cover - Soft folding
- Tonneau Pickup Box Cover - Retractable
- Floor Liner - Tray Style (Includes Carpet Mats)
- Floor Liner - Tray Style (Deletes Carpet Mats)
- Aluminum Crossbed Toolbox - Black, by Weather Guard (Defender Series)
- Premium Aluminum Crossbed Storage Toolbox - Bright, by Weather Guard (model # 131-0-1)
Specifications
Highlights
| Available Engines | 2.3L EcoBoost® I-4 | ||||
| Horsepower | 270 | ||||
| Torque (lb.-ft.) | 310 | ||||
| Auto Start/Stop Technology | Standard | ||||
| EPA-Estimated Ratings - 4x2* | 21 city/26 hwy/23 combined | ||||
| EPA-Estimated Ratings - 4x4* | 20 city/24 hwy/22 combined | ||||
| EPA-Estimated Ratings - Tremor* | 19 city/19 hwy/19 combined | ||||
| *Actual mileage will vary. | |||||
| Available Cab Types | SuperCab | SuperCab | SuperCrew® | SuperCrew® | Tremor SuperCrew® |
| Drive Type | 4x2 | 4x4 | 4x2 | 4x4 | 4x4 |
| Max Seating Capacity | 4 | 4 | 5 | 5 | 5 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. |
| Maximum Conventional Towing (When properly configured) | 7,500 lbs. | 7,500 lbs. | 7,500 lbs. | 7,500 lbs. | 7,500 lbs. |
| Maximum Payload (When properly configured) | 1,860 lbs. | 1,650 lbs. | 1,770 lbs. | 1,560 lbs. | 1,430 lbs. |
| Min Vehicle Base Curb Weight | 4,145 lbs. | 4,354 lbs. | 4,232 lbs. | 4,441 lbs. | 4,571 lbs. |
| Available Trims | XL XLT LARIAT |
||||
| Transmission - 10-Speed SelectShift® Automatic | Standard | ||||
| Available Drive Types | 4x2 4x4 |
||||
| Time | Distance | ||||
| Warranty - Bumper to Bumper | 3 years | 36,000 miles | |||
| Warranty - Powertrain | 5 years | 60,000 miles | |||
| Warranty - Safety Restraint System | 5 years | 60,000 miles | |||
| Warranty - Aluminum Body Panels | 5 years | Unlimited miles | |||
| Warranty - Corrosion - Sheet Metal (Perforation Only Excluding Aluminum) | 5 years | Unlimited miles | |||
| Warranty - Paint Adhesion | 5 years | Unlimited miles | |||
| Warranty - Roadside Assistance Program | 5 years | 60,000 miles |
Exterior
| Exterior Dimensions - Cab | |||||
|---|---|---|---|---|---|
| Cab style | SuperCab | SuperCrew® | Tremor SuperCrew® | ||
| Pickup box style | 6 ft. Styleside | 5 ft. Styleside | 5 ft. Styleside | ||
| Drive system | 4x2 | 4x4 | 4x2 | 4x4 | 4x4 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. |
| Overall length | 210.8 in. | 210.8 in. | 210.8 in. | 210.8 in. | 210.7 in. |
| Cab to Axle (Pick Up Box Delete) | 31.3 in. | - | - | - | - |
| Cab height | 70.7 in. | 71.1 in. | 71.1 in. | 71.5 in. | 73.2 in. |
| Width - Excluding mirrors | 73.3 in. | 73.3 in. | 73.3 in. | 73.3 in. | 73.3 in. |
| Width - Including mirrors | 85.8 in. | 85.8 in. | 85.8 in. | 85.8 in. | 85.2 in. |
| Width - Mirrors folded | 77.8 in. | 77.8 in. | 77.8 in. | 77.8 in. | 77.8 in. |
| Track width - Front | 61.4 in. | 61.4 in. | 61.4 in. | 61.4 in. | 62.4 in. |
| Track width - Rear | 61.4 in. | 61.4 in. | 61.4 in. | 61.4 in. | 62.4 in. |
| Overhang - Front | 35.8 in. | 35.8 in. | 35.8 in. | 35.8 in. | 35.8 in. |
| Overhang - Rear | 48.2 in. | 48.2 in. | 48.2 in. | 48.2 in. | 48.1 in. |
| Angle of approach | 27.9 degrees | 28.7 degrees | 27.9 degrees | 28.7 degrees | 30.9 degrees |
| Angle of departure | 25.2 degrees | 25.4 degrees | 25.2 degrees | 25.4 degrees | 25.5 degrees |
| Ramp breakover angle | 22.7 degrees | 21.5 degrees | 22.7 degrees | 21.5 degrees | 24.2 degrees |
| Ground clearance | 8.4 in. | 8.9 in. | 8.4 in. | 8.9 in. | 9.7 in. |
| Front bumper to back of cab | 132.1 in. | 132.1 in. | 143.8 in. | 143.8 in. | 143.8 in. |
| Exterior Dimensions - Cargo Box | |||||
| Cargo box style | 6 ft. Styleside | 5 ft. Styleside | |||
| Inside Length (at floor) | 72.8 in. | 61.0 in. | |||
| Width between wheelhouses | 44.8 in. | 44.8 in. | |||
| Inside Height | 20.8 in. | 20.8 in. | |||
| Cargo box volume | 51.8 cu. Ft. | 43.3 cu. Ft. |
Interior
| Interior Dimensions | ||
|---|---|---|
| Cab style | SuperCab | SuperCrew® |
| Head room - Front | 39.8 in. | 39.8 in. |
| Head room - Rear |
35.9 in. | 38.3 in. |
| Shoulder room - Front | 56.6 in. | 56.7 in. |
| Shoulder room - Rear | 55.2 in. | 56.3 in. |
| Hip room - Front | 55.8 in. | 55.8 in. |
| Hip room - Rear | 55.3 in. | 53.5 in. |
| Max Leg room - Front | 43.1 in. | 43.1 in. |
| Leg room - Rear |
30.4 in. | 34.5 in. |
Capacities
| Cab style |
SuperCab (Pick Up Box Delete) | SuperCab | SuperCab | SuperCrew® | SuperCrew® | Tremor SuperCrew® |
|---|---|---|---|---|---|---|
| Pickup box style | 6 ft. Styleside | 6 ft. Styleside | 6 ft. Styleside | 5 ft. Styleside | 5 ft. Styleside | 5 ft. Styleside |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. | 126.8 in. |
| Drive system | 4x2 | 4x2 | 4x4 | 4x2 | 4x4 | 4x4 |
| Seating capacity | 4 | 4 | 4 | 5 | 5 | 5 |
| Fuel Capacity | 18 gal. | 18 gal. | 18 gal. | 18 gal. | 18 gal. | 18 gal. |
| Base Curb Weight - 2.3L EcoBoost® | 3,922 lbs. | 4,145 lbs. | 4,232 lbs. | 4,354 lbs. | 4,441 lbs. | 4,571 lbs. |
Engine
| Engine Specifications | |
|---|---|
| Engine type | 2.3L EcoBoost® I-4 |
| Auto Start/Stop Technology | Standard |
| Engine Control System | PCM |
| Horsepower (SAE net @ rpm) | 270 |
| Torque (lb.-ft. @ rpm) | 310 |
| Compression ratio | 10.0:1 |
| Bore (in.) | 3.45 in. |
| Stroke (in.) | 37. in. |
| Displacement (cu. in.) | 140 cu. In. |
| Fuel delivery | Direct Injection |
| Recommended Fuel | 87 Octane |
| Oil Capacity | 6.2 quarts |
| EPA-Estimated Ratings - 4x2* | 21 city/26 hwy/23 combined |
| EPA-Estimated Ratings - 4x4* | 20 city/24 hwy/22 combined |
| EPA-Estimated Ratings - Tremor* | 19 city/19 hwy/19 combined |
| Transmission type | Electronic 10-speed automatic |
| Transmission - Tow/Haul | Standard |
| Transmission - SelectShift® w/ Progressive Range Select | Standard |
| Engine block material | Aluminum |
| Cylinder head material | Aluminum |
| *Actual mileage will vary. |
Chassis
| Chassis Specifications | ||
|---|---|---|
| Chassis Type | Ranger | Ranger Tremor |
| Front suspension | Independent short long arm and solid stabilizer bar | Independent short long arm and solid stabilizer bar |
| Rear suspension | Hotchkiss-type non-independent live, parabolic leaf springs and inboard shock absorbers | Hotchkiss-type non-independent live, multi-leaf springs and inboard shock absorbers |
| Front and rear shocks | Gas-Pressurized | Front: Fox 2.0 Gas Pressurised Monotube with Internal Floating Piston and Hydraulic Rebound Stop Rear: Fox 2.0 Gas Pressurised Monotube with Internal Floating Piston, Hydraulic Rebound Stop, and piggyback reservoir |
| Brakes | Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and AdvanceTrac electronic stability control | Four-wheel power disc brakes with four-sensor, four-channel antilock braking system and Tremor-specific tuned AdvanceTrac electronic stability control |
| Steering | Electric power-assisted, rack-and-pinion | Electric power-assisted, rack-and-pinion |
Towing
| Maximum Conventional Towing Capabilities | |||
|---|---|---|---|
| SuperCab | |||
| Drive Type | 4x2 (Pick Up Box Delete) | 4x2 | 4x4 |
| Engine with Automatic Transmission | 2.3L EcoBoost® I-4 | 2.3L EcoBoost® I-4 | 2.3L EcoBoost® I-4 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. |
| Axle Ratio | 3.73 | 3.73 | 3.73 |
| GCWR | 12,500 lbs. | 12,150 lbs. | 12,400 lbs. |
| Maximum Conventional Towing Capabilities | 7,500 lbs. | 7,500 lbs. | 7,500 lbs. |
| SuperCrew® | |||
| Drive Type | 4x2 | 4x4 | Tremor 4x4 |
| Engine with Automatic Transmission | 2.3L EcoBoost® I-4 | 2.3L EcoBoost® I-4 | 2.3L EcoBoost® I-4 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. |
| Axle Ratio | 3.73 | 3.73 | 3.73 |
| GCWR | 12,250 lbs. | 12,500 lbs. | 12,500 lbs. |
| Maximum Conventional Towing Capabilities* | 7,500 lbs. | 7,500 lbs. | 7,500 lbs. |
Payload
| Maximum Payload Capabilities | |||
|---|---|---|---|
| SuperCab | |||
| Drive Type | 4x2 (Pick Up Box Delete) | 4x2 | 4x4 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. |
| GVWR | 6,050 lbs. | 6,050 lbs. | 6,050 lbs. |
| Maximum Payload Capabilities | 2,080 lbs. | 1,860 lbs. | 1,650 lbs. |
| SuperCrew® | |||
| Drive Type | 4x2 | 4x4 | Tremor 4x4 |
| Wheelbase | 126.8 in. | 126.8 in. | 126.8 in. |
| GVWR | 6,050 lbs. | 6,050 lbs. | 6,050 lbs. |
| Maximum Payload Capabilities | 1,770 lbs. | 1,560 lbs. | 1,430 lbs. |
