Handling
Standard
- Traction Control
Optional
- Front Max GAWR up to 5,000 lbs (Fleet only)
E-SERIES CUTAWAY E-350 DRW
KEY FEATURES
7.3L V8 PREMIUM ENGINE
This proven engine, available with a premium or economy rating, features single overhead valve design and dual-equal variable-cam timing that helps optimize power across the entire power band. The standard 7.3L V8 Premium-rated engine with TorqShift® six-speed automatic transmission with the 2022 E-350/E-450 is rated at 350 horsepower and 468 lb.-ft. of torque at 3,900 rpm.
...less
FORD TORQSHIFT® AUTOMATIC TRANSMISSION
The Ford TorqShift® six-speed automatic transmission is designed and built by Ford to handle the high-performance demands of the standard, Premium-rated 7.3L V8 (350 horsepower and 468 lb.-ft . of torque at 3,900 rpm) and the available 7.3L V8 Economyrated engine calibration (350 horsepower at 3,750 rpm and 425 lb.-ft . of torque at 3,250 rpm). Available with either the standard Premium- or optional Economy-rated 7.3L engine.
...less

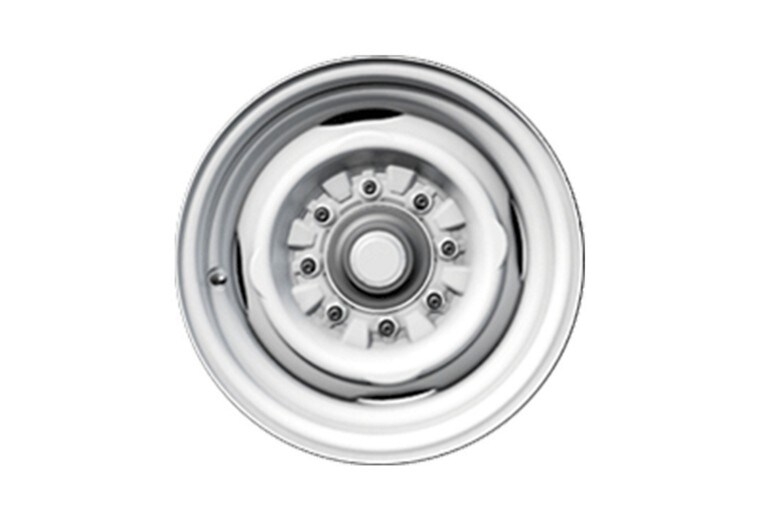

16-INCH X 6-INCH WHITE-PAINTED STEEL WHEELS
These white-painted steel wheels are standard on dual-rear-wheel models.
...less
Power and Handling
Power
Standard
- 7.3L V8 Premium Engine Open image overlay for 7.3L V8 Premium Engine
- Ford Torqshift® Automatic Transmission Open image overlay for Ford Torqshift® Automatic Transmission
- Transmission - Auxiliary oil cooler
- 50-State Emissions System
- 210-Amp Alternator Open image overlay for 210-Amp Alternator
- Battery - 78-Amp/hr
- Auxiliary Fuel Port
- Fuel Tank - 40-gallon
- Modified Vehicle Wiring Kit & System
Optional
- 7.3L V8 Economy-Rated Engine Open image overlay for 7.3L V8 Economy-Rated Engine
- Speed Limitation - 65 mph governed top speed (Fleet only)
- Speed Limitation - 75 mph governed top speed (Fleet only)
- Driveshaft Upgrade - from 3" to 3 1/2" diameter
- 240-Amp Alternator
- Dual 240/157 Amp Alternator
- Battery — Heavy-Duty 78-Amp-Hr Open image overlay for Battery — Heavy-Duty 78-Amp-Hr
- Engine Block Heater
- Fuel Tank - 55-gallon
- Driver-side Exhaust Exit (Requires 158" wheelbase)(Late Availability)
- Daytime Running Lamps
Wheels and Tires
Standard
- Tires - LT225/7Rx16E All Season
- 16-inch x 6-inch White-Painted Steel Wheels Open image overlay for 16-inch x 6-inch White-Painted Steel Wheels
- Spare Tire & Wheel - Delete
- Wheels - Steel valve stems
Optional
- Spare Tire & Wheel
Interior Features
Comfort and Convenience
Standard
- Front Air Conditioning Open image overlay for Front Air Conditioning
- Slimline Engine Cover Console
- Instrument Panel - Medium Flint
- Fleet Telematics Modem
- Powerpoints - Dual 12-volt in instrument panel, single in glove box
- Mirror - Interior, NOT INCLUDED
- Sun Visors - Vinyl
- Floor Covering - Front, Black Vinyl
- Step Well Pads - Black plastic
- Horn - Dual Note
- Front dome lamp
- Windshield Wipers - Interval
- Hill Start Assist
- Steering Wheel and Steering Column Open image overlay for Steering Wheel and Steering Column
- Cluster and Finish Panel Open image overlay for Cluster and Finish Panel
- Dual USB Port Open image overlay for Dual USB Port
Optional
- B-Pillar Trim Kit
- Engine Console Cover - Delete (Fleet only)
- Cruise Control
- Electronic Message Center
- Power Windows and Locks Group
- 110V A/C Outlet
- Mirror - Interior Day/Night rearview mirror
- Programmable Upfitter Interface Module Open image overlay for Programmable Upfitter Interface Module
- High-Capacity Upfitter Switches Open image overlay for High-Capacity Upfitter Switches
Entertainment Systems
Standard
- Bluetooth® Radio Open image overlay for Bluetooth® Radio
Optional
- Audio - Prep Package (Includes antenna, 2 speakers, grilles & wiring normally provided)
- Audio - Prep Package (Includes antenna, 4 speakers, grilles & wiring normally provided)
- Audio - 4-speaker upgrade package
Seating
Standard
- Bucket Seats, Dual High Back, Vinyl
Optional
- Captain’s Chairs, Dual High-Back, Cloth Open image overlay for Captain’s Chairs, Dual High-Back, Cloth
- Captain’s Chairs, Dual High Back, Cloth w/o trim
- 6-way Power Driver Seat Adjuster
- Passenger Seat - Delete
- Captain’s Chairs, Driver Side w/o trim
- Captain's Chairs - Driver Side Only - Mid Series Cloth
- Manual Pedestal with 2-way Adjuster
- Power Seat Prep Package (Motorhome / Shuttle Bus)
- Seat Prep Package - Manual with 2-way Adjuster (Shuttle Bus)
- Seat Prep Package - Power (Shuttle Bus)
Exterior Features
Appearance
Standard
- Bumper - Painted black
- Grille - Black
- Headlamps with Autolamp - Dual sealed-beam with fixed lens
- Telescoping Exterior Mirrors Open image overlay for Telescoping Exterior Mirrors
Optional
- Bumper - Chrome - front
- Bumper - Painted white
- Grille - Chrome
- Mirrors - Manual Telescopic Trailer Tow - with manual adjust
- Mirrors - Manual Telescopic Trailer Tow - with power adjust
- Door-Length Running Boards Open image overlay for Door-Length Running Boards
- Front License Plate Bracket
Safety
Safety
Standard
- Airbags - Front driver & Passenger
- Brakes — Four-Wheel Disc Anti-Lock Braking System (ABS) Open image overlay for Brakes — Four-Wheel Disc Anti-Lock Braking System (ABS)
- Safety belts -3-point shoulder/lap belts - all positions - with height adjustable D-Ring
Optional
- Passenger Airbag Cutoff Switch
- Airbag - Delete (passenger side)
Security
Standard
- Electronic Stability Control
Optional
- Remote Keyless Entry Open image overlay for Remote Keyless Entry
- SecuriLock® Passive Anti-Theft System Open image overlay for SecuriLock® Passive Anti-Theft System
- Rear View Camera
Packages
Packages
Optional
- Interior Upgrade Package
- High-Series Exterior Upgrade Package
- Trailer Towing Package (Class I)
- Upgraded Trailer Towing Package (Class I)
- Insulation Package
- Auxiliary Heater/AC Connector Package
- Auxiliary Heater/AC Connector Package with Rear Controls
- Auxiliary Heater Connection Package with Rear Fan Controls
- Ambulance Prep Package
- Motorhome Prep Package
- School Bus Prep Package
- Shuttle Bus Prep Package
- Multi-Function School Activity Bus Prep Package
- Rear frame cross-member - Delete
- Right hand door - Delete
- Alternate Lateral Frame Spacers
- Frame Pucks (Isolators)
- Standard Pattern Frame
- Driver Assist Technology Package - Includes Automatic Emergency Braking (AEB), Distance Alert/Distance Indication, Post-Collision Braking, Adaptive Cruise Control, Lane Departure Warning, Driver Alert System and Auto-High Beam Control
- Advanced Fuels Open image overlay for Advanced Fuels
Specifications
Exterior Dimensions
| E-350 Cutaway (SRW) | E-350 Cutaway (SRW) | E-350 Cutaway (DRW) | E-350 Cutaway (DRW) | E-350 Cutaway (DRW) | E-450 Cutaway (DRW) | E-450 Cutaway (DRW) | |
|---|---|---|---|---|---|---|---|
| Wheelbase (in.) | 138 | 158 | 138 | 158 | 176 | 158 | 176 |
| Overall Length (in.) | 241.1 | 261.1 | 241.1 | 261.1 | 261.1 | 261.1 | 261.1 |
| Overall Height (Loaded) (in.) | 80.4 | 80.3 | 80.3 | 80.2 | 80.1 | 80 | 80 |
| Overall Width (in.) | 79.4 | 79.4 | 94.9 | 94.9 | 94.9 | 94.9 | 94.9 |
| Front Track (in.) | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 | 69.4 |
| Rear Track (in.) | 72.1 | 72.1 | 75.4 | 75.4 | 75.4 | 77.7 | 77.7 |
| Cab Length (in.) | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 | 92.5 |
| Cab Rear to Rear Axle (in.) | 80 | 100 | 80 | 100 | 118 | 100 | 118 |
| Top of Frame to Top of Cab (in.) | 54.4 | 54.4 | 54.4 | 54.4 | 54.4 | 58.4 | 58.4 |
| Rear Axle to End of Frame (in.) | 68.5 | 68.5 | 68.5 | 68.5 | 50.5 | 68.5 | 50.5 |
| Load Height (loaded) (in.) | 25.9 | 25.9 | 26.2 | 26.2 | 26.2 | 26 | 26 |
| Front Overhang (in.) | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 | 34.6 |
| Estimated base Curb Weight in lbs. (GVWR) | 4,950 lbs. (10,050 lb. GVWR) | 5,012 lbs. (10,050 lb. GVWR) | 5,225 lbs. (11,500 lb. GVWR) | 5,287 lbs. (11,500 lb. GVWR)/ 5,287 lbs. (12,500 lb. GVWR) | 5,297 lbs. (12,500 lb. GVWR) | GVWR 5,512 lb. (14,000 lb. GVWR)/ 5,512 lbs. (14,200 lb. GVWR) / 5,512 lb. (14,500 lb. GVWR) | 5,519 lbs. (14,000 lb. GVWR) / 5,519 lb. (14,200 lb. GVWR)/5,512 lb. (14,500 lb. GVWR) |
Interior Dimensions
| E-350 / E-450 Cutaway | E-450 Cutaway (DRW) | |
|---|---|---|
| First row Head Room (in.) | 42 | 42 |
| First row Shoulder room (in.) | 68.1 | 68.1 |
| First row Hip Room (in.) | 65.6 | 65.6 |
| First row max. Leg Room (in.) | 42.1 | 42.1 |
Capacities: Passengers, Fuel
| E-350 Super Duty® Cutaway (SRW) / (DRW) | E-450 Cutaway (DRW) | |
|---|---|---|
| Seating capacity (std./opt.) | 2/1 | 2/1 |
| Fuel capacity (gal.) | 40/55 | 40/55 |
Engine Specifications
| Engine type | 7.3L V8 Premium Engine | 7.3L V8 Economy Engine |
| Engine electronics | Bosch Multicore MG1CS019 |
Bosch Multicore MG1CS019 |
| Displacement | 445 | 445 |
| Horsepower (SAE net@rpm) | 350@3,900 | 300@3,750 |
| Torque (lb.-ft. @rpm) | 468@3,900 | 425@3,250 |
| Compression ratio | 10.5:1 |
10.5:1 |
| Bore x stroke (in.) | 4.22 x 3.97 | 4.22 x 3.97 |
| Main bearings | 5 Main Bearings |
5 Main Bearings |
| Valvetrain | OHV / 2 Valves Per Cylinder | OHV / 2 Valves Per Cylinder |
| Valve lifters | Hydraulic Roller Lifters | Hydraulic Roller Lifters |
| Fuel delivery | Port Fuel Injection | Port Fuel Injection |
| Electronic throttle control (ETC) | Std. | Std. |
| Engine oil cooler | Std. | Std. |
| Exhaust | Cast Stainless Steel (LH & RH) | Cast Stainless Steel (LH & RH) |
| Transmission type | 6-speed automatic transmission with overdrive and Tow Haul | 6-speed automatic transmission with overdrive and Tow Haul |
| Engine block material | Cast Iron | Cast Iron |
| Cylinder head material | Aluminum | Aluminum |
Chassis Specifications
| Front suspension | Twin I-beam IFS with computer-selected coil springs and stabilizer bar |
| Rear suspension | Multileaf 2-stage leaf springs/solid axle and rear stabilizer bar (DRW only) |
| Front and rear shocks | Heavy-duty gas-pressurized |
| Brakes | Power 4-wheel disc anti-lock, with traction control |
| Steering | Recirculating ball, power-assisted |
Maximum Payloads
| CUTAWAY | Engine | GCWR | GVWR | Payload |
|---|---|---|---|---|
| E-350 (SRW) 138" Wheelbase | 7.3L Economy | 13,000 | 10,050 | 5,100 |
| E-350 (SRW) 138" Wheelbase | 7.3L Premium | 18,500 | 10,050 | 5,100 |
| E-350 (DRW) 138" Wheelbase | 7.3L Economy | 13,000/17,000 | 11,500 | 6,270 |
| E-350 (DRW) 138" Wheelbase | 7.3L Premium | 18,500 | 11,500 | 6,270 |
| E-350 (SRW) 158" Wheelbase | 7.3L Economy | 13,000 | 10,050 | 5,030 |
| E-350 (SRW) 158" Wheelbase | 7.3L Premium | 18,500 | 10,050 | 5,030 |
| E-350 (DRW) 158" Wheelbase | 7.3L Economy | 13,000/17,000 | 11,500 | 6,210 |
| E-350 (DRW) 158" Wheelbase | 7.3L Premium | 18,500 | 11,500 | 6,210 |
| E-350 (DRW) 158" Wheelbase | 7.3L Economy | 13,000 | 12,500 | 7,210 |
| E-350 (DRW) 158" Wheelbase | 7.3L Premium | 18,500 | 12,500 | 7,210 |
| E-350 (DRW) 176" Wheelbase | 7.3L Economy | 13,000/17,000 | 12,500 | 7,200 |
| E-350 (DRW) 176" Wheelbase | 7.3L Premium | 18,500 | 12,500 | 7,200 |
| E-450 (DRW) 158" Wheelbase | 7.3L Economy | 18,000 | 14,000 | 8,480 |
| E-450(DRW) 176" Wheelbase | 7.3L Economy | 18,000 | 14,000 | 8,480 |
| E-450 (DRW) 158" Wheelbase | 7.3L Premium | 22,000 | 14,200/14,500 | 8,680/8,980 |
| E-450(DRW) 176" Wheelbase | 7.3L Premium | 22,000 | 14,200/14,500 | 8,680/8,980 |
Fuel Capacity and Engine Highlights
| Engine Type | New 7.3L V8 Premium Engine | New 7.3L V8 Economy Engine (O) |
| Fuel Capacity | 40/55 gallons | 40/55 gallons |
Vehicle Highlights
| Drive Type | 4x2 |
| Transmission | 6-speed automatic w/overdrive and Tow/Haul mode |
| Wheelbase | 138", 158", 176" |
| 158" (E-350 SRW/DRW, E-450 DRW) | |
| 176" (E-350 DRW, E-450 DRW) | |
| GVWR Range | 10,050 lbs. to 14,500 lbs. |
| Warranty | Bumper to Bumper: 3 years / 36,000 miles |
| Powertrain: 5 years / 60,000 miles | |
| Safety Restraint System: 5 years / 60,000 miles | |
| Corrosion (Perforation Only): 5 years / Unlimited miles | |
| Roadside Assistance Program: 5 years / 60,000 miles |
